K50APT2FGRBF2QP Banner Pick-to-Light Sensors

K50APT2FGRBF2QP on Powermatic Associates
Banner

Part#:K50APT2FGRBF2QP

Manufacturer:Banner

Alt. Part#:800759

Product Lifecycle:Active

Get a quick Quote!

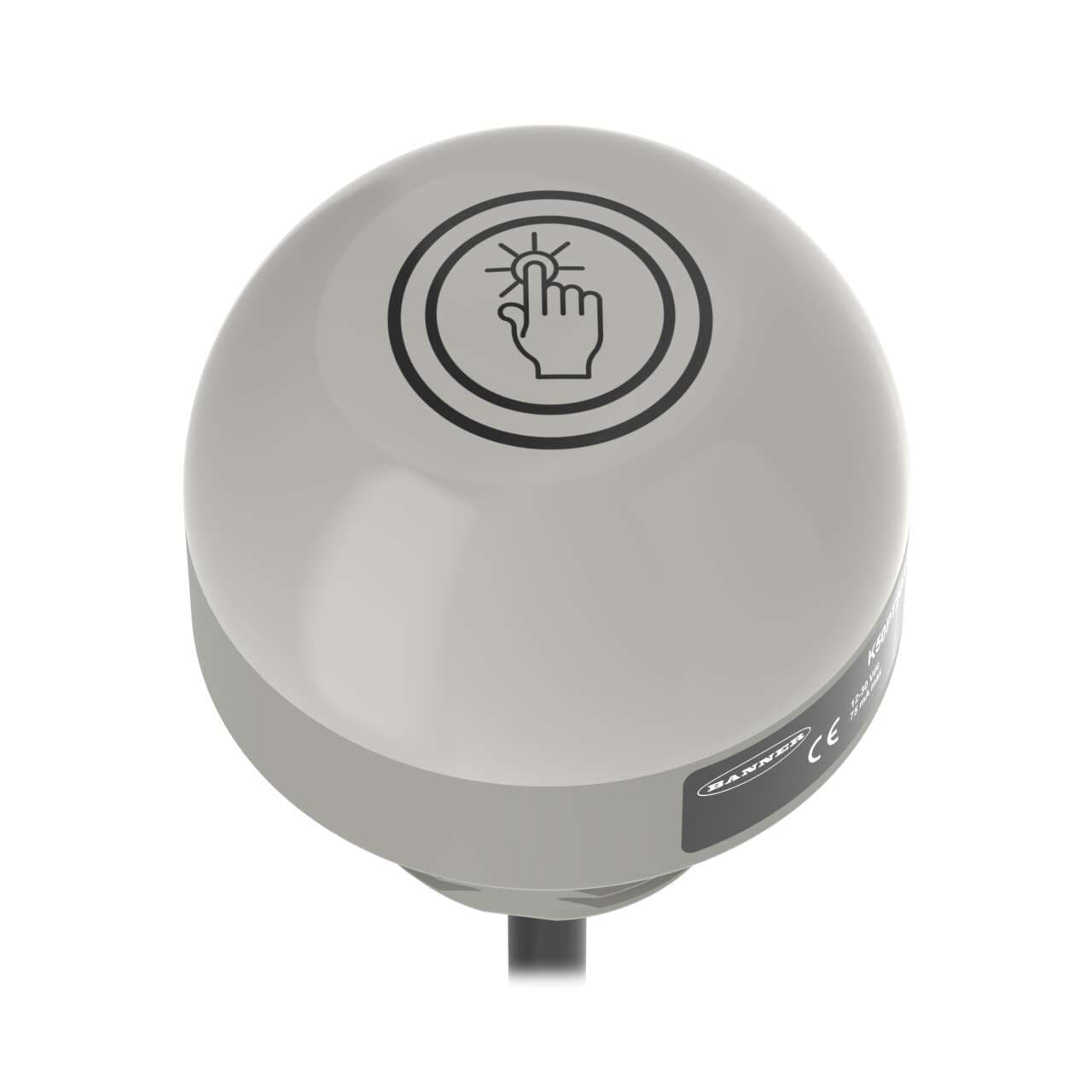

K50 Series EZ-LIGHT: 3-Input-Color Touch Sensor Gen 2 FDA; Voltage: 12-30 V dc; Housing: FDA Polycarbonate; IP67 IP69K; Input: PNP (NO); Colors: Green Red Blue; 150 mm (6 in) 8-pin M12 PVC Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K50APT2FGRBF2QP Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    158.7572 g
  • Country Of Origin
    MX
  • Pro-Editor Compatible (Discrete)
    No
  • Feature: Quick Disconnect
    Yes
  • IO Link
    No
  • Wireless
    No
  • Modbus RTU
    No
  • Feature: Audible
    No
  • Feature: Chemical Resistant
    No
  • Feature: Hazardous Area
    No
  • Primary Window Material
    FDA Polycarbonate Diffused
  • Button Operation
    Momentary
  • Primary Housing Color
    FDA Gray
  • Feature: Washdown Rated
    Yes
  • Multi-Color Device
    Single Color On
  • Min Op. Temperature (°C)
    -40
  • Max Op. Temperature (°C)
    50
  • Storage Temp (°C)
    -40 to 70
  • Environmental Rating
    IP67; IP69
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 55.0
  • Max Output Response Time (ms)
    50
  • Input Type
    PNP
  • Output Type
    PNP
  • Supply Voltage
    12-30 V dc
  • Operation
    Normally Open
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Max Current Color (mA)
    75
  • Number of Input Pins/Conductors
    8
  • Pick-to-Light Function
    F2
  • Color Option 2
    Red
  • Color 1 - Wavelength/Color Temp/Coordinates
    525 nm
  • Quick Disconnect Type
    M12 (Euro)
  • Lumens Color 1
    29.0
  • Connection
    Pigtail QD
  • Animation Option 1
    Solid On
  • Color Option 3
    Blue
  • Color 2 - Wavelength/Color Temp/Coordinates
    625 nm
  • Lumens Color 2
    13.0
  • Color Option 1
    Green
  • Color Technology
    Standard LED
  • Product Size (mm)
    50
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Number of Colors / Segments
    3
  • Mounting Thread
    M30 x 1.5
  • Activation Function
    Capacitive Touch
  • Housing Style
    Base Mount - Dome Window
  • Primary Housing Material
    FDA Polycarbonate
  • Actuation
    Yes
  • Power Source
    DC
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

K50APT2FGRBF2QP Description

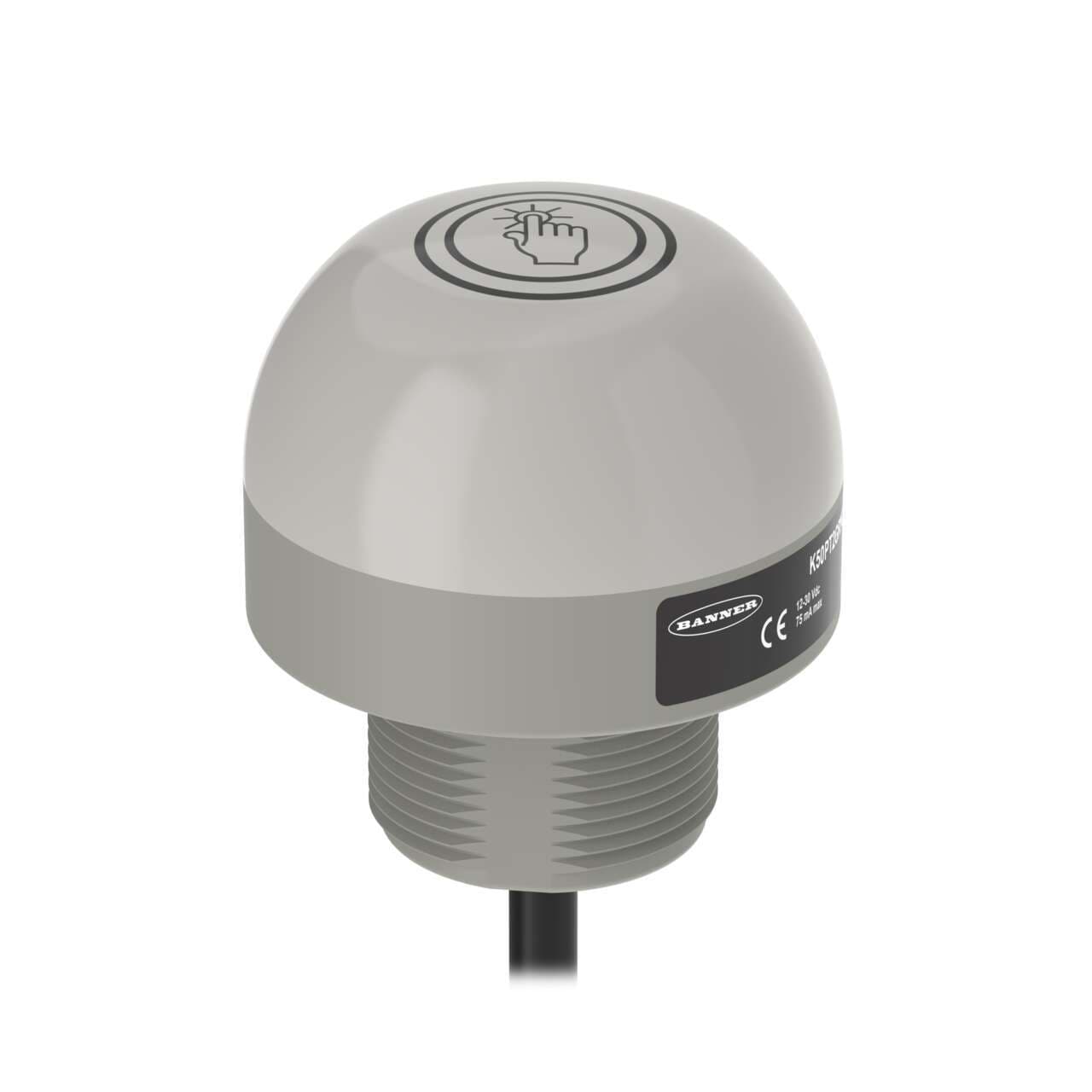

Banner Engineering K50APT2FGRBF2QP is a capacitive touch-sensitive pick-to-light component from the EZ-LIGHT series designed for automation applications. This Gen.2 hygienic device features LED illumination and is constructed with FDA-grade materials, including a polycarbonate diffused window and base. It comes in a gray housing with a dome window shape, measuring 50mm / 2" in diameter. The part is pre-wired with a 6" / 15cm pigtail that terminates with an 8-pin M12 Euro-style quick disconnect (QD) connector. It operates on a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal, and can be mounted on the surface or base pole with an M30 thread. The K50APT2FGRBF2QP is designed to function in ambient air temperatures ranging from -40°C to +70°C and is protected to IP67, IP68, and IP69K standards. Its operating mode includes a momentary job light (G/R/B; Green or Red or Blue) that is ON when one of the three job inputs is active, and touch activates the output only with a Normally Open (NO) touch output. It also features 3 x digital inputs (12-30Vdc; PNP) for JOB color control and 1 x digital output (12-30Vdc; PNP) for touch.

Related documents K50APT2FGRBF2QP Specs

K50APT2FGRBF2QP 189837.pdf
