IR2.53SMRAMP Banner Fiber Optic Amplifiers

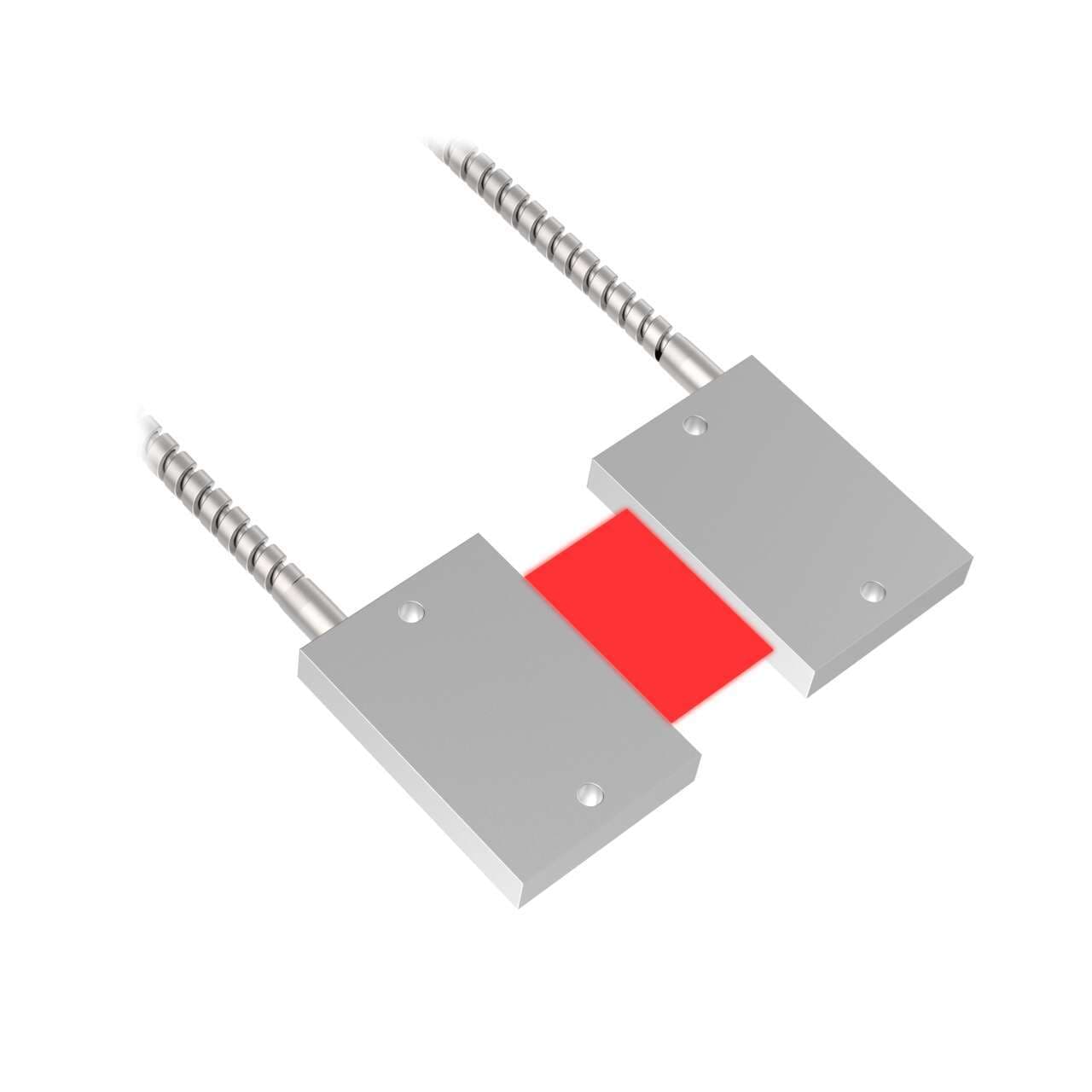

Banner IR2.53SMRAMP Opposed Mode Individual Glass Fiber 0.91 m long; 3.96 mm dia. Bundle; Stainless Steel Sheath; Rectangular Sensing Tip; Side Exit Array; 38.1 mm Length x 0.25 mm Width
Banner

Part#:IR2.53SMRAMP

Manufacturer:Banner

Alt. Part#:20166

Product Lifecycle:Active

Get a quick Quote!

Opposed Mode Individual Glass Fiber 0.91 m long; 3.96 mm dia. Bundle; Stainless Steel Sheath; Rectangular Sensing Tip; Side Exit Array; 38.1 mm Length x 0.25 mm Width

About the manufacturer: Banner is one of the manufacturers that offers Fiber Optic Amplifiers that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the IR2.53SMRAMP Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    176.447288 g
  • Country Of Origin
    US
  • Max Distance: DF-G1 (mm)
    No Data
  • Application: Vacuum Feed Through
    None
  • Integrated Lens
    No
  • Fiber Sensing End Size - Mounting Area
    63.5 x 44.5 mm
  • Max Distance: DF-G3 (mm)
    No Data
  • Tariff Fiber Meters (fbm)
    4893.07
  • Measured Max Distance (mm)
    No Data
  • Max Distance: DF-G2 (mm)
    No Data
  • Termination Type
    Glass Fiber Sensors
  • Application: Liquid Level
    No
  • Feature: Extended Range
    No
  • Feature: Small Object Detection
    Yes
  • Feature: Chemical Resistant
    No
  • Sensing End Segment 3
    Array
  • Termination
    Terminated
  • Flex Relief
    No
  • Minimum Bend Radius (mm)
    25
  • Max Temp ( °C)
    249
  • Core Diameter (mm)
    4
  • Array Length (mm)
    38.1
  • Retractile
    No
  • Fiber Sensing End Size
    63.5 x 44.5 mm
  • Sensing End Segment 2
    Sideview
  • Sensing End Segment 1
    Rectangle
  • Fiber Length (m)
    0.914
  • Quantity Included
    1
  • Fiber Optic Type
    Glass
  • Sensing Mode (Detailed)
    Array
  • Fiber Sensing End Tip
    Array
  • Beam Exit
    Right Angle
  • Fiber Sheathing Material (Jacket)
    Stainless Steel Monocoil
  • Sensing End Material (Specific)
    Aluminum
  • Sensing Mode (General)
    Opposed
  • Housing Style
    Rectangular
  • Product series / family name
    Fiber sensors
  • Diameter
    4mm fiber core
  • Functions
    Fiber optic sensor
  • Dimensions
    63.5x44.45mm sensing area
  • Primary brand
    Banner Engineering
  • Design
    through-beam system / opposed mode Individual fiber
  • Material
    Stainless steel sensing end Glass fiber stainless flexible tubing (fiber sheath)
  • Sub-range name
    Glass fiber series
  • Length
    3ft / 910mm
  • Order code / Manufacturer SKU
    20166
  • Main function
    Fiber sensor
  • Shape
    Rectangular
  • Ambient air temperature for operation
    +249 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IR2.53SMRAMP Description

Banner Engineering IR2.53SMRAMP is a fiber sensor belonging to the Glass fiber series, designed with a through-beam system / opposed mode flexible fiber individual fiber side / right-angled sensing. It features a rectangular shape with dimensions of 63.5x44.45mm for the sensing area. The sensor is constructed with a stainless steel sensing end, glass fiber, and stainless flexible tubing fiber sheath. It has a length of 3ft / 910mm and a fiber core diameter of 4mm. This sensor is designed to operate in ambient air temperatures up to +249°C.

Related documents IR2.53SMRAMP Specs

IR2.53SMRAMP Banner Engineering - Glass Fiber series - Catalog.pdf
