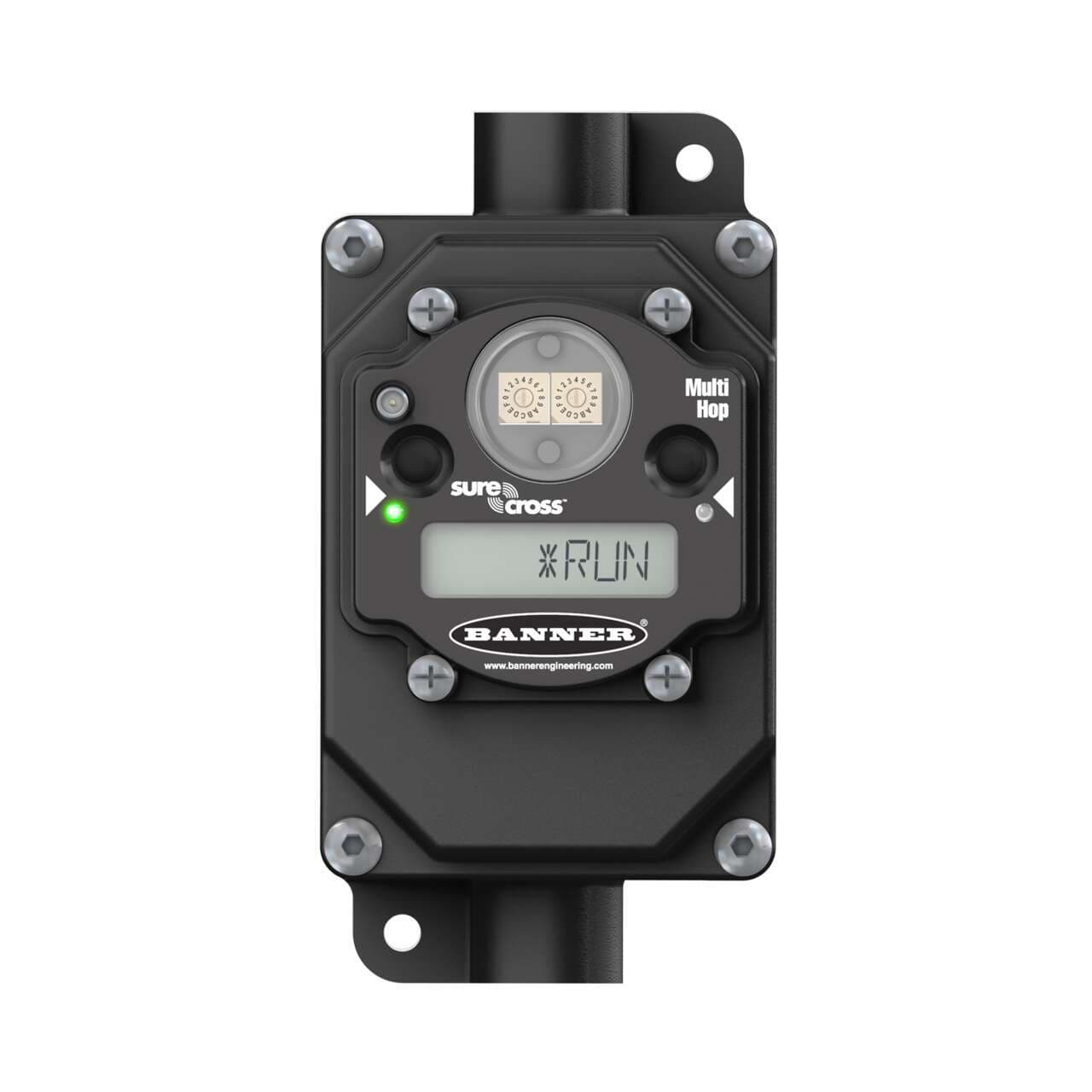

DX80DR9M-H15E Banner Network Gateways

Name: DX80DR9M-H15E
Brand: Banner

Banner DX80DR9M-H15E MultiHop 900 MHz 1 W IP65; 100-277 V ac, Field Wireable 25W Supply, External Antenna; Inputs: Two PNP Discrete, Two 0-20 mA Analog; Outputs: Two AC/DC Relay (SPDT), Two PNP Discrete, Two 0-10 V Analog

Part#:DX80DR9M-H15E

Manufacturer:Banner

Alt. Part#:801578

Product Lifecycle:Active

Get a quick Quote!

MultiHop 900 MHz 1 W IP65; 100-277 V ac, Field Wireable 25W Supply, External Antenna; Inputs: Two PNP Discrete, Two 0-20 mA Analog; Outputs: Two AC/DC Relay (SPDT), Two PNP Discrete, Two 0-10 V Analog

About the manufacturer: Banner is one of the manufacturers that offers Network Gateways that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DX80DR9M-H15E Banner price in the box on the right side or send a quick quote.

Product Details

Weight
703.0676 g
Country Of Origin
US
Wireless Radio Frequency
900 MHz
1-wire Serial Interface
No
RS-485
Yes
Wireless
Yes
PROFINET
No
Modbus/TCP
No
RS-232
No
Feature: Hazardous Area
No
Star Topology
Yes
EtherNet/IP
No
Tree Topology
Yes
Modbus RTU
Yes
Min Temp Operating Conditions
-20
LCD Display
Yes
Input/Output
Analog & Discrete
Point-to-Point Topology
Yes
Point-to-Multipoint Topology
Yes
Power
AC

Relative Humidity

95%

Input Details

2 Discrete, two 0 - 20 mA current analog

Discrete Outputs

Yes

Discrete Inputs

Yes

Max Temp Operating Conditions

Environmental Rating (IP)

IP65

Environmental Rating (NEMA)

NEMA 4x

Power Supply

100-277 V ac at 50/60 Hz

Device Type

Multihop Data Radio

Analog Outputs

Yes

Output Details

2 Discrete, two 0 - 10 V dc analog, two AC/DC relay

Analog Inputs

Yes

Housing Style

Enclosed Terminals

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DX80DR9M-H15E Description

Banner Engineering DX80DR9M-H15E is a Gateway designed for surface mounting with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers 2 analog outputs (0-10Vdc), ensuring compatibility with various devices. This gateway provides a degree of protection rated at IP65 and NEMA 4X, with dimensions of H81.3mm x W155.2mm x D87.6mm. It features 2 digital outputs (SPDT / Form-C / NO/NC contact type; 10A / 277Vac), 2 digital outputs (PNP), and 2 analog inputs (0-20mA; 12-bit A/D conversion) for versatile connectivity options. The DX80DR9M-H15E operates on a 900 MHz transmission frequency and includes 2 digital inputs (10Vdc-30Vdc; PNP). It is equipped with MultiHop data radio functionality, falls under the MultiHop Modbus IO data radios sub-range, and incorporates 2 buttons, 2 bi-color LEDs, and FHSS (Frequency Hopping Spread Spectrum) technology for reliable data transmission. Connection is facilitated through 2 x 1/2"-14 NPSM ports and an RP-SMA connector, with a supply voltage range of 100Vac-277Vac. It supports RS-485 Modbus TCP communication protocol, operates on a 900MHz ISM band with 1W power, and can achieve a maximum transmission distance of 9.6km at nominal emission power.
