DF-G3-NI-Q7
Banner
Product Lifecycle: Active

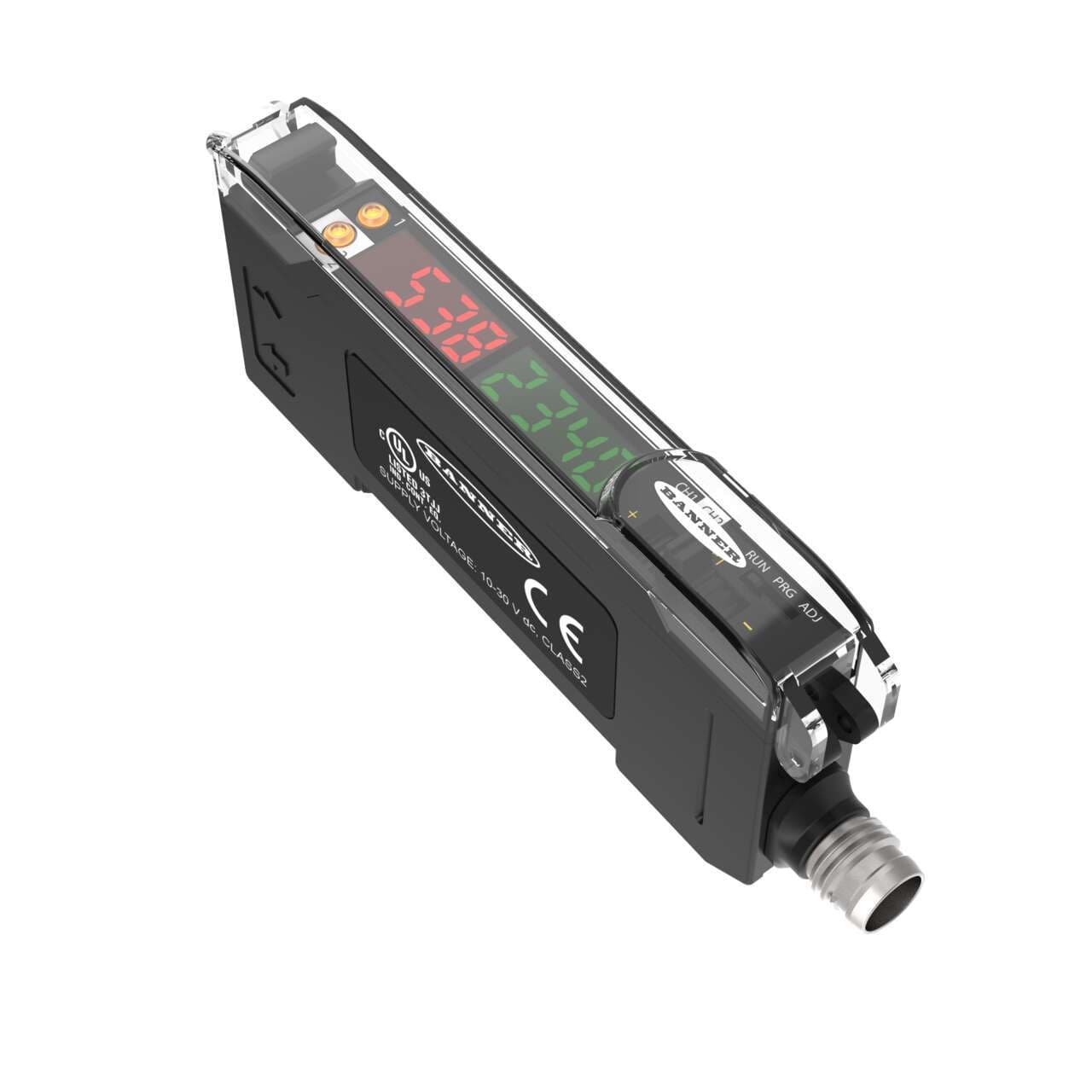

Banner Engineering DF-G3-NI-Q7 is an amplifier for sensors, designed for DIN rail mounting with a thermoplastic housing. It operates within an ambient air temperature range of -10 to +55°C and features a single analog output (4-20mA) and a digital output (NPN transistor; complementary NO/NC). This part, belonging to the DF-G3 Expert series, offers a degree of protection rated at IP50 NEMA 1 and emits visible red light with a wavelength of 635 nm. Its design incorporates TEACH mode for high-power operation and is equipped with a 5-pin Pico-style M8 connector for connectivity. The DF-G3-NI-Q7 requires a supply voltage of 10Vdc-30Vdc, with nominal voltages of 12Vdc and 24Vdc, and is specifically shaped in a rectangular form to facilitate its long-range fiber optic sensor amplifier functions.
![DF-G3-NI-Q7](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2Fc125030d-c5bf-44c4-87ab-2486e570bf7b.jpeg&w=3840&q=75)
Banner Engineering DF-G3-NI-Q7 is an amplifier for sensors, designed for DIN rail mounting with a thermoplastic housing. It operates within an ambient air temperature range of -10 to +55°C and features a single analog output (4-20mA) and a digital output (NPN transistor; complementary NO/NC). This part, belonging to the DF-G3 Expert series, offers a degree of protection rated at IP50 NEMA 1 and emits visible red light with a wavelength of 635 nm. Its design incorporates TEACH mode for high-power operation and is equipped with a 5-pin Pico-style M8 connector for connectivity. The DF-G3-NI-Q7 requires a supply voltage of 10Vdc-30Vdc, with nominal voltages of 12Vdc and 24Vdc, and is specifically shaped in a rectangular form to facilitate its long-range fiber optic sensor amplifier functions.
Product details
- Housing MaterialThermoplastic
- Feature: Hazardous AreaNo
- IO LinkNo
- Feature: Timing (Hold/Delay)Yes
- Feature: AudibleNo
- Analog Output4 to 20 mA
- Special Feature: Bussable PowerNo
- Indicator Display TypeDual Digital Displays
- Delay at Power-up (ms)500
- Minimum response time (ms).5
- AdjustmentsTeach Button
- Power Supply/Supply Voltage10-30 V dc
- Intrinsically SafeNo
- Crosstalk AvoidanceYes
- NEMA RatingNEMA 1
- Special Feature: Remote TeachYes
- Max Op. Temperature (°C)55
- Min Op. Temperature (°C)-10
- Max Op. Relative Humidity (%)90% @ 60°C
- IP RatingIP50
- Number of Pins5
- Output Type (Specific)Analog & Discrete
- Repeatability (µs)100 to 180
- Primary Housing MaterialThermoplastic
- ConnectionIntegral QD
- Quick Disconnect TypeM8 (Pico)
- Color LED - AmplifiersRed
- Fiber TypePlastic and Glass
- OutputNPN
- Housing StyleDIN Rail
- Input/OutputAnalog & Discrete
- PowerDC
- Degree of protectionIP50 NEMA 1
- Order code / Manufacturer SKU87605
- Supply voltage (DC)10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Digital outputs1 x digital output (NPN transistor)
- Equivalent toDFG3NIQ7
- Product series / family nameFiber optic amplifiers
- Wavelength635 nm
- Connection typePre-equipped with 5-pin Pico-style M8 connector
- Materialthermoplastic housing
- Main functionAmplifier for sensor
- ShapeRectangular
- Compliant with standard(s)cULus CE
- Sub-range nameDF-G3 Expert series
- Light ColorVisible red
- Analog outputs1 x analog output (4-20mA)
- Ambient air temperature for operation-10...+55 °C
- Primary brandBanner Engineering
- FunctionsLong-range fiber optic sensor amplifier yellow LED (output status) red LED (signal) TEACH mode
- DisplayLED 4 digits x 2 (red + green)
- Mounting modeDIN rail mounting
