BT13SM900 Banner Fiber Optic Amplifiers

BT13SM900 on Powermatic Associates
Banner

Part#:BT13SM900

Manufacturer:Banner

Alt. Part#:20788

Product Lifecycle:Active

Get a quick Quote!

FIBER BT13SM900

About the manufacturer: Banner is one of the manufacturers that offers Fiber Optic Amplifiers that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the BT13SM900 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    119.748288 g
  • Country Of Origin
    US
  • Max Distance: DF-G3 (mm)
    No Data
  • Fiber Sensing End Size - Mounting Area
    #5/16-24 thread
  • Max Distance: DF-G1 (mm)
    No Data
  • Measured Max Distance (mm)
    No Data
  • Termination Type
    Glass Fiber Sensors
  • Tariff Fiber Meters (fbm)
    739.43
  • Application: Vacuum Feed Through
    None
  • Max Distance: DF-G2 (mm)
    No Data
  • Feature: Small Object Detection
    No
  • Application: Liquid Level
    No
  • Feature: Chemical Resistant
    No
  • Max Temp ( °C)
    480
  • Termination
    Terminated
  • Fiber Length (m)
    0.914
  • Minimum Bend Radius (mm)
    25
  • Sensing End Segment 1
    Thread
  • Core Diameter (mm)
    1.6
  • Integrated Lens
    No
  • Flex Relief
    No
  • Retractile
    No
  • Fiber Sensing End Size
    #5/16-24 thread
  • Sensing Mode (Detailed)
    Reflective
  • Fiber Sensing End Tip
    Thread
  • Fiber Optic Type
    Glass
  • Fiber Sheathing Material (Jacket)
    Stainless Steel Monocoil
  • Sensing End Material (Specific)
    Stainless Steel
  • Beam Exit
    In-line
  • Sensing Mode (General)
    Diffuse
  • Quantity Included
    1
  • Housing Style
    Round

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

BT13SM900 Description

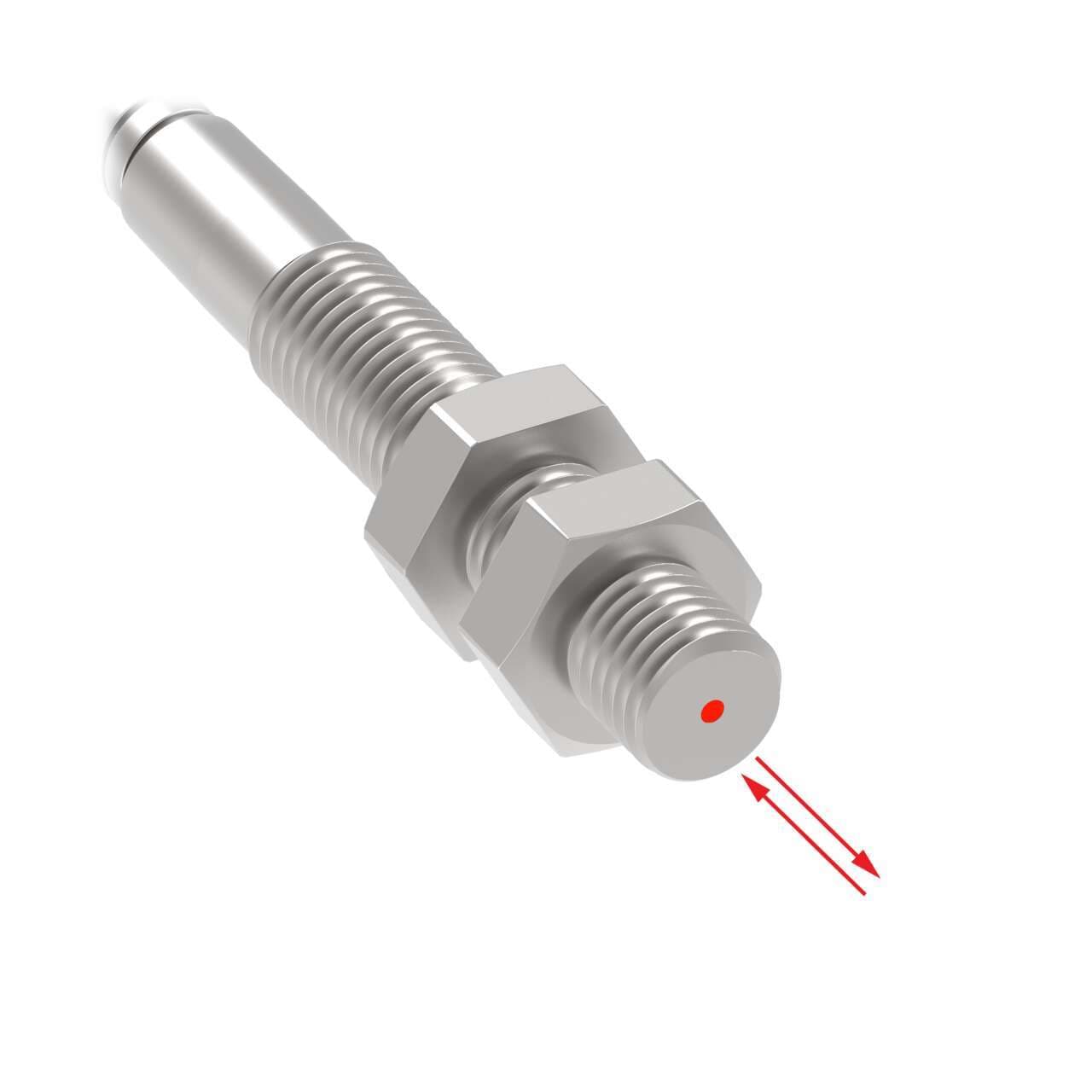

Banner Engineering BT13SM900 is a fiber sensor belonging to the Glass fiber series, designed with a diffuse-reflective system and bifurcated fiber in-line sensing. It features a stainless steel sensing end, glass fiber, and a stainless steel monocoil construction. The sensor has a 1.6mm fiber core diameter and comes in a cylindrical shape with a threaded end tip. Its length is 3ft / 910mm, and it is capable of operating in ambient air temperatures up to +480°C.
