02012ES3EOW286T-W22 WEG AC Motors
Part#:02012ES3EOW286T-W22
Manufacturer:WEG
Alt. Part#:7909158561483
Product Lifecycle:Active
Get a quick Quote!

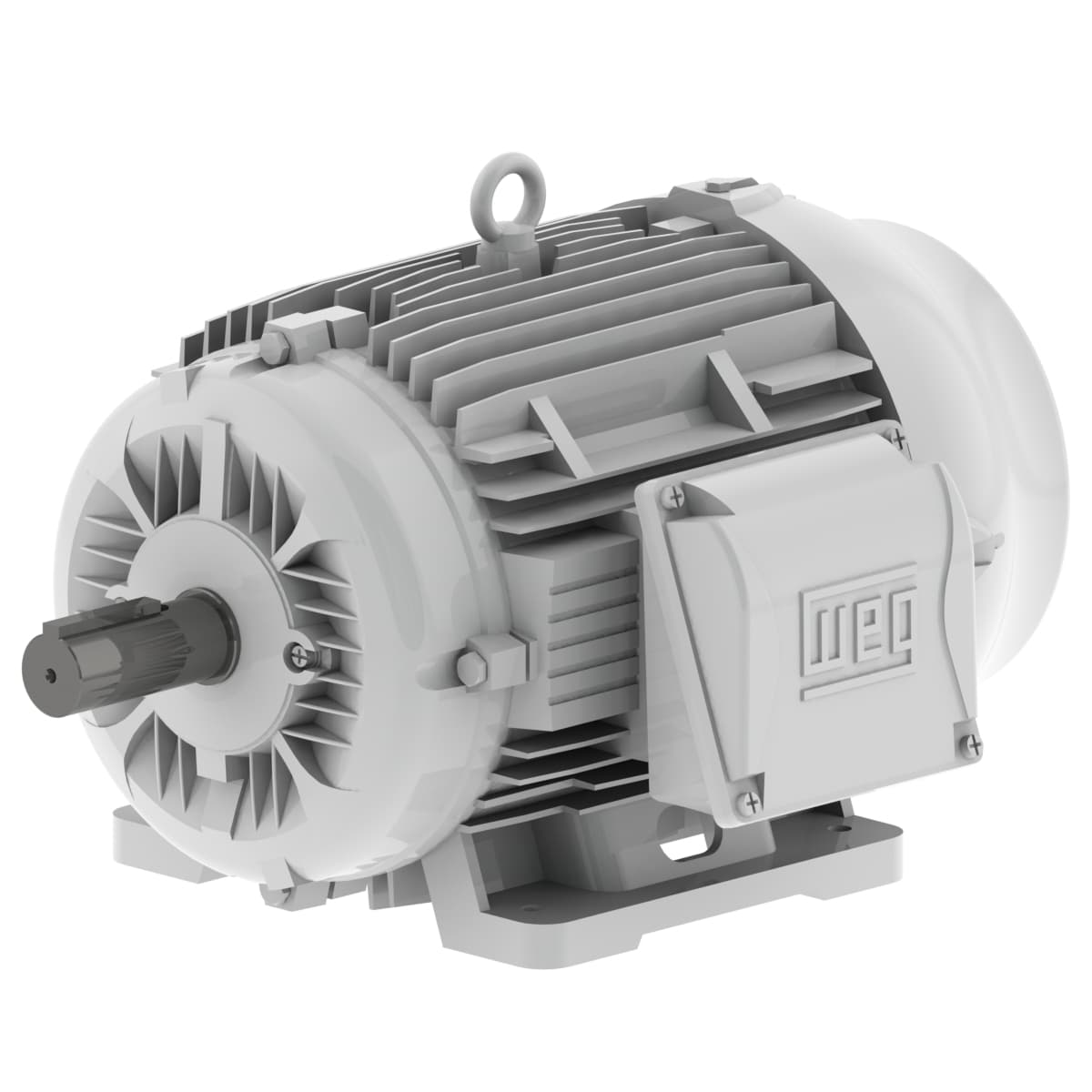

W22 Standard Efficiency 20 HP 6P 284/6T 3Ph 208-230/460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 02012ES3EOW286T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Number of Poles 6 Pole
- Voltage 208-230/460 V
- Output Rating 20 HP
- Rated Speed 1115 rpm
- Flange Type Without
- Flange Without
- Terminal box¹ Right position
- Standard NEMA MG-1
- Output rating 20 HP
- Synchronous speed 1200 rpm
- Voltage 208-230/460 V
- Number of poles 6
- Approx. weight³ 439 lb
- Noise level² 59.0 dB(A)
- Rotation¹ Both (CW and CCW)
- Mounting F-2
- Enclosure IC411 - TEFC
- Ambient temperature -20°C to +40°C
- Altitude 1000 m.a.s.l.
- Degree of Protection IP55
- Temperature rise 80 K
- Service factor 1.15
- Duty Cycle Cont.(S1)
- Locked rotor torque 320 %
- Starting Method Direct On Line
- Insulation Class F
- Locked rotor time 25s (cold) 14s (hot)
- Breakdown torque 0 %
- Moment of inertia (J) 8.97 sq.ft.lb
- Design D
- No load current 14.8-13.4/6.70 A
- Rated torque 94.2 ft.lb
- LRC 6.0x(Code G)
- L. R. Amperes 321-290/145 A
- Frequency 60 Hz
- Rated speed 1115 rpm
- Number of Poles 6
- Frame 284/6T
- Slip 7.08 %
- Rated voltage 208-230/460 V
- Output 20 HP (15 kW)
- Rated current 53.5-48.4/24.2 A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Related documents 02012ES3EOW286T-W22 Specs
