231-160 WAGO Electrical Connector Accessories

231-160 on Powermatic Associates
WAGO

Part#:231-160

Manufacturer:WAGO

Product Lifecycle:Active

Get a quick Quote!

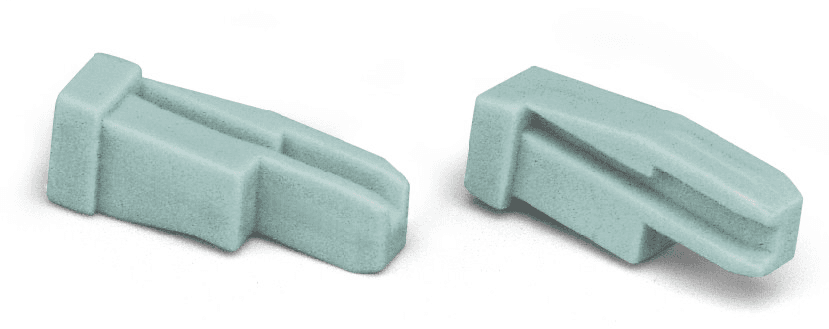

Coding pin; for coding lower male headers; push-in type; light gray

About the manufacturer: WAGO is one of the manufacturers that offers Electrical Connector Accessories that you can order at Powermatic Associates site. WAGO is the global leader in spring clamp technology for electrical connections and ranks among the top suppliers of components for industrial and building automation. With 28 companies and 9 production facilities employing around 9,000 people worldwide, we ensure expert advice and close customer relationships.

Check out the 231-160 WAGO price in the box on the right side or send a quick quote.

Product Details

  • Weight
    0.150000039 g
  • Country Of Origin
    Germany
  • HTS Code
    39269097900
  • Weight
    0.150 grams
  • Package Type
    Box
  • Insulation Material
    Polyamide
  • Flammability Class
    V0
  • Country of Origin
    Germany
  • Color
    Gray

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

231-160 Description

WAGO 231-160 is designed for integration with double-deck male headers, featuring a snap-in mechanism for secure attachment to the lower level. It is constructed from polyamide (PA66), ensuring durability and resistance to high temperatures, with a light gray color. This part meets the UL94 V0 flammability class, indicating its capability to halt flame propagation. It has a minimal fire load of 0.007MJ and a lightweight design at 0.1g. Classified under Product Group 3 in the Multi Connection System category, it adheres to eClass versions 10.0 and 9.0, as well as ETIM versions 8.0 and 7.0, with the codes 27-14-11-92 and EC002848 respectively. Available in packaging units of 200 pieces per box, it is manufactured in Germany and comes with a GTIN of 4017332117678. The customs tariff number for this part is 39269097900, and it is fully compliant with RoHS environmental regulations, ensuring no use of restricted hazardous substances.
