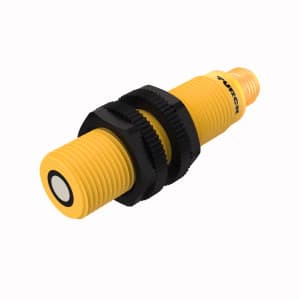

RU50U-S18-LU8X-H1141 Turck Ultrasonic Sensors
Part#:RU50U-S18-LU8X-H1141
Manufacturer:Turck
Alt. Part#:100000750
Product Lifecycle:Active
Get a quick Quote!
RU50U-S18-LU8X-H1141 Ultrasonic Sensor, Diffuse Mode Sensor
About the manufacturer: Turck is one of the manufacturers that offers Ultrasonic Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the RU50U-S18-LU8X-H1141 Turck price in the box on the right side or send a quick quote.
Product Details
- Weight 40 g
- Housing material Plastic
- Ambient temperature -20…+50 °C
- Housing quality LCP
- Protection class IP67
- Construction size M18 x 1
- Special features Compact
- Housing surface Yellow
- Design Threaded barrel
- Voltage output 0…10 V
- Electrical connection Connector, M12 × 1
- Range 50…500 mm
- Output function Analog output
- Operating voltage 15…30 VDC
- Function Proximity
- Radiation direction straight
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
RU50U-S18-LU8X-H1141 Description
Turck RU50U-S18-LU8X-H1141 is an ultrasonic sensor from the RU50U series featuring a 20° sonic cone diffuse mode for front sensing. This sensor is equipped with TEACH-by-wire functionality for precise adjustments. It is constructed with a durable LCP (Liquid Crystal Polymer) housing and a sensing face made from PET (Polyethylene terephthalate), PU (Polyurethane), and Epoxy, ensuring longevity and resilience in various environments. The sensor comes pre-equipped with a 4-pin M12 Eurofast QD male connector for easy installation. It operates on a supply voltage of 15-30Vdc, with 24Vdc nominal, and can function within an ambient air temperature range of -20°C to +50°C. Designed for robustness, it boasts an IP67 degree of protection against dust and water ingress. The RU50U-S18-LU8X-H1141 has a partially threaded barrel shape with an M18 thread size, making it versatile for different mounting requirements. It features 1 digital output (15-30Vdc; PNP; fixed threshold) and 1 analog output (0-10Vdc), with a sensing distance range of 50-500mm. The sensor's current consumption is 50mA under no-load conditions, and it includes protection functions against short-circuit (pulsed) and reverse polarity. Its measurement accuracy is marked by a resolution of 0.2mm, ensuring precise detection and measurement for a wide range of applications.
