RM-101S10C-9D38B-H1151 Turck Industrial Automation Components

RM-101S10C-9D38B-H1151 on Powermatic Associates
Turck

Part#:RM-101S10C-9D38B-H1151

Manufacturer:Turck

Category:Industrial Automation Components

Alt. Part#:1545884

Product Lifecycle:Active

Get a quick Quote!

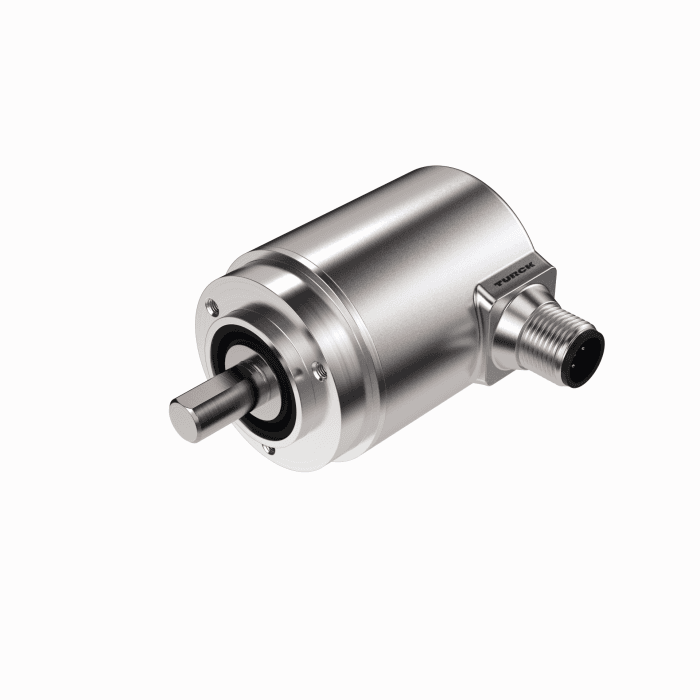

RM-101S10C-9D38B-H1151 Turck - RM-101S10C-9D38B-H1151 Absolute Rotary Encoder - Multiturn, Industrial Line

About the manufacturer: Turck is one of the manufacturers that offers Industrial Automation Components that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the RM-101S10C-9D38B-H1151 Turck price in the box on the right side or send a quick quote.

Product Details

  • RoHS
    Yes
  • Country Of Origin
    USA
  • HTS Code
    9029108000
  • Operating Voltage
    10 volts, 30 volts
  • Ambient Temperature
    -40 degrees celsius, 85 degrees celsius
  • Protection class
    IP67
  • Protection class shaft
    IP67
  • Housing material
    Die-cast zinc
  • Electrical connection
    Connector, M12 × 1
  • Ambient temperature
    -40…+85 °C
  • Communication protocol
    CANopen
  • Operating voltage
    10…30 VDC
  • Flange type
    Clamping flange
  • Shaft diameter D [mm]
    10  mm
  • Flange diameter
    Ø  36  mm
  • Shaft Type
    Solid shaft
  • Encoder line
    Industrial-Line
  • Output type
    Absolute multiturn
  • Technology
    Magnetic

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

RM-101S10C-9D38B-H1151 Description

Absolute Rotary Encoder - Multiturn, Industrial Line, Clamping flange, Ø 36 mm, Solid shaft, Ø 10 mm × 20 mm, Magnetic measuring principle, Shaft material: stainless steel, IP67 rated on the shaft side, ‐40…+85 °C, Max. 4000 rev/min, , 10-30 VDC, CANopen DS 406 V4.0, M12 connection, 5-pin

Manufacturer warranty

$844.70

Request a quote, and we will send availability within minutes.

Select Qty:

$844.70

$844.70 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing
