RI360P1-QR20-LI2X2-H1141 Turck Encoders

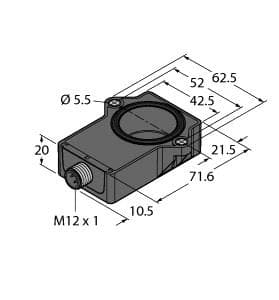

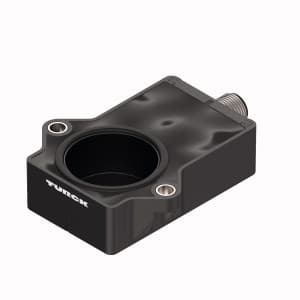

Turck RI360P1-QR20-LI2X2-H1141 is a contactless rotary inductive angle sensor designed for precise angular position detection within a range of 0° to +360°. It operates within an ambient air temperature range of -25 to +85°C and features a blind hole shaft design that is resistant to washdown, making it suitable for harsh environments. This sensor is equipped with a 4-pin M12 Eurofast QD male connector for easy installation and is part of the Q-track QR20 series. With dimensions of H63mm x W72mm x D20mm, it has a rectangular shape and is constructed with a durable Plastic Ultem housing. The sensor offers a supply voltage range of 15Vdc to 30Vdc (24Vdc nominal) and includes protection functions against short-circuit and reverse polarity. It provides one analog output (4-20mA) and has a resolution of ≤0.09° with a 12-bit resolution. The device features a green LED for visual position indication and power status, operates at a frequency of 500Hz sampling rate, and has a bore size of 6mm. It is designed to offer a high degree of protection with ratings of IP68 and IP69K, ensuring its performance in demanding conditions.
