RI360P0-QR24M0-CNX4-2H1150 Turck Encoders
Part#:RI360P0-QR24M0-CNX4-2H1150
Manufacturer:Turck
Alt. Part#:1590914
Product Lifecycle:Active
Get a quick Quote!
RI360P0-QR24M0-CNX4-2H1150 Contactless Encoder, CANopen, Premium Line
About the manufacturer: Turck is one of the manufacturers that offers Encoders that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the RI360P0-QR24M0-CNX4-2H1150 Turck price in the box on the right side or send a quick quote.
Product Details
- Weight 334 g
- Ambient temperature -25…+85 °C
- Electrical connection Connector, M12 × 1
- Protection class IP68/IP69K
- Housing material Metal/plastic, ZnAlCu1/PBT-GF30-V0
- Communication protocol CANopen
- Operating voltage 10…30 VDC
- Measuring range 0…360°
- Shaft diameter D [mm] 6 mm6.35 mm9.525 mm10 mm12 mm12.7 mm14 mm15.875 mm19.05 mm20 mm
- Output type Absolute singleturn
- Flange type Flange without mounting element

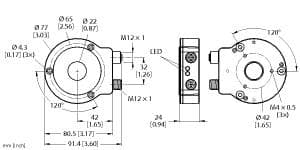

- Construction size 81 x 78 x 24 mm
- Technology Contactless
- Shaft Type Hollow shaft
- Encoder line Premium-Line
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
RI360P0-QR24M0-CNX4-2H1150 Description

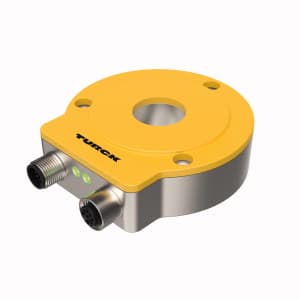

Turck RI360P0-QR24M0-CNX4-2H1150 is a contactless rotary inductive angle sensor designed for precise angle measurement. It operates within an ambient air temperature range of -25 to +85°C and features a through hollow shaft design that is resistant to washdowns. This sensor is part of the Q-track QR24 series and comes pre-equipped with two 5-pin M12 Eurofast QD male connectors. It has dimensions of H78mm x W81mm x D24mm and offers a degree of protection rated at IP68 and IP69K. The supply voltage required ranges from 10Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc. Its rectangular shape is constructed from ZnAlCu1 metal and a PA12-GF30 plastic housing. The sensor utilizes the CANopen communication protocol and includes protection functions against short-circuit, wire-break, and reverse polarity. It features a 16-bit resolution and provides visual position indicators through a green LED for power, a yellow LED for measuring range display, and a green/red LED for CANopen status. The measurement accuracy is ≤ 0.01% of full scale, with a current consumption of 60mA, and it can measure angular positions from 0° to +360°. The sensor has a sampling rate of 800Hz.
Related documents RI360P0-QR24M0-CNX4-2H1150 Specs
