RI120P2-QR20-LI2X2-H1141 Turck Encoders

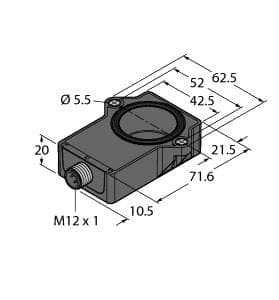

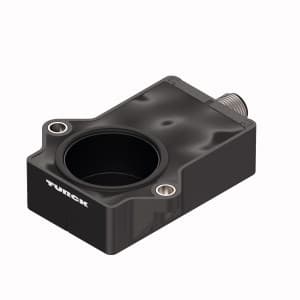

Turck RI120P2-QR20-LI2X2-H1141 is a contactless rotary inductive angle sensor designed for precise angle measurement. It operates within an ambient air temperature range of -25 to +85°C and features a blind hole shaft that is washdown-resistant, making it suitable for harsh environments. This sensor is equipped with a 4-pin M12 Eurofast QD male connector for easy installation and is part of the Q-track QR20 series. With dimensions of H63mm x W72mm x D20mm, it has a rectangular shape and is constructed with a durable Plastic Ultem housing. The RI120P2-QR20-LI2X2-H1141 offers a degree of protection rated at IP68 and IP69K, ensuring protection against dust, water immersion, and high-pressure water jets. It requires a supply voltage of 15Vdc to 30Vdc, with 24Vdc nominal, and features a 500Hz sampling rate for fast response times. The sensor has a 1/4" bore size and includes protection functions against short-circuit and reverse polarity. It provides one analog output (4-20mA) and boasts a resolution of ≤0.09° with a 12-bit resolution. A green LED serves as both a multifunction visual position indicator and a power-on indicator. The measurement accuracy is highlighted by its 0.09° resolution, and it has a current consumption of 100mA. This sensor is capable of measuring angular positions from 0° to +120°.
