RI-12I15T-4A500-H1181 Turck Encoders
Part#:RI-12I15T-4A500-H1181
Manufacturer:Turck
Alt. Part#:1545498
Product Lifecycle:Active
Get a quick Quote!

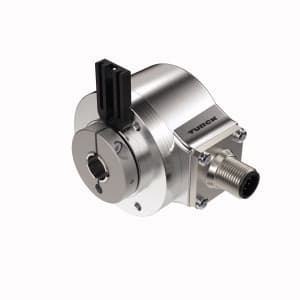

RI-12I15T-4A500-H1181 Incremental Encoder, Industrial Line
About the manufacturer: Turck is one of the manufacturers that offers Encoders that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the RI-12I15T-4A500-H1181 Turck price in the box on the right side or send a quick quote.
Product Details
- RoHS Yes
- Country Of Origin USA
- HTS Code 9029108000
- Protection class shaft IP65
- Housing material Die-cast zinc
- Encoder line Industrial-Line
- Output function RS422, with inverted signals
- Shaft Type Hollow shaft
- Resolution, incremental 500 ppr
- Ambient temperature -40…+85 °C
- Electrical connection Connector, M12 × 1
- Protection class IP67
- Flange type Flange with mounting element
- Output type Incremental

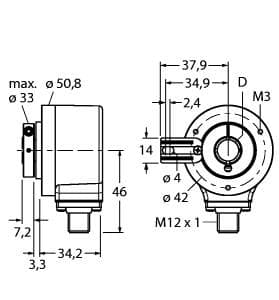

- Flange diameter Ø 50.8 mm
- Shaft diameter D [mm] 15 mm
- Technology Optical
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
RI-12I15T-4A500-H1181 Description
Turck RI-12I15T-4A500-H1181 is a compact incremental rotary encoder designed for flange with torque stop mounting. It operates within an ambient air temperature range of -40 to +85°C and features a through hollow shaft flange with torque stop optical sensing. This encoder is pre-equipped with a radial 8-pin M12 Eurofast QD male connector and belongs to the Type RI-12 series. It has a 2" casing diameter and offers a degree of protection of IP65. The supply voltage required is 5Vdc, and it can handle a pulse frequency of up to 300kHz. The encoder is constructed from die-cast metal housing, with a stainless steel shaft, disc table, and packing ring. It uses the RS-422 communication protocol and has a 15mm hollow shaft bore. The digital outputs include 1 x digital output (RS422 output with inverting signal; 5Vdc). Protection functions include short-circuit, bearing lock, magnetic field proof, and reverse polarity. It supports a maximum rotational speed of 12000rpm, with a moment of inertia of 6 x 10-6kg.m2, and offers a resolution of 500ppr (pulses/revolution). The current consumption is 40mA with no load, and it can withstand a maximum radial load of 80 N and a maximum axial load of 40 N.
Related documents RI-12I15T-4A500-H1181 Specs
