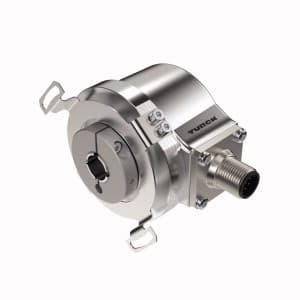

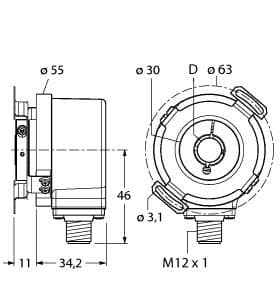

RI-12I14E-4B3600-H1181 Incremental Encoder, Industrial Line

About the manufacturer: Turck is one of the manufacturers that offers Encoders that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the RI-12I14E-4B3600-H1181 Turck price in the box on the right side or send a quick quote.

Product Details

  • Protection class
    IP67
  • Output function
    RS422/TTL, with inverted signals
  • Protection class shaft
    IP65
  • Shaft Type
    Hollow shaft
  • Electrical connection
    Connector, M12 × 1
  • Operating voltage
    5…30 VDC
  • Resolution, incremental
    3600  ppr
  • Flange type
    Flange with stator coupling
  • Flange diameter
    Ø  63  mm
  • Ambient temperature
    -40…+85 °C
  • Housing material
    Die-cast zinc
  • Encoder line
    Industrial-Line
  • Output type
    Incremental
  • Shaft diameter D [mm]
    14  mm
  • Technology
    Optical

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

RI-12I14E-4B3600-H1181 Description

Turck RI-12I14E-4B3600-H1181 is a compact incremental rotary encoder designed for through hollow shaft flange with slotted flex mount optical sensing. It features a 63mm flex mount (slotted) flange mounting and operates within an ambient air temperature range of -40 to +85°C. This encoder is pre-equipped with a radial 8-pin M12 Eurofast QD male connector and falls under the Type RI-12 series. It has a 2" casing diameter and offers an IP65 degree of protection. The supply voltage ranges from 5Vdc to 30Vdc, supporting 6Vdc, 12Vdc, and 24Vdc, with a maximum pulse frequency of 300kHz (up to 5000rpm). Constructed with a die-cast metal housing, stainless steel shaft, disc table, and packing ring, it utilizes an RS-422 communication protocol. The encoder has a 14mm hollow shaft bore and provides 1 x digital output (RS422 pulse output; TTL compatible; 5Vdc-30Vdc). It includes protection functions against short-circuit, bearing lock, magnetic fields, and reverse polarity. Capable of a rotational speed up to 12000rpm (mechanical limit), it has a moment of inertia of 6 x 10-6kg.m2 and a resolution of 3600ppr (pulses/revolution). The current consumption is 40mA with no load, and it can withstand a maximum radial load of 80 N and a maximum axial load of 40 N.
