RI-10TA1C-2K5000-H1181 Turck Encoders
Part#:RI-10TA1C-2K5000-H1181
Manufacturer:Turck
Alt. Part#:1545663
Product Lifecycle:Active
Get a quick Quote!
RI-10TA1C-2K5000-H1181 Incremental Encoder, Industrial Line
About the manufacturer: Turck is one of the manufacturers that offers Encoders that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the RI-10TA1C-2K5000-H1181 Turck price in the box on the right side or send a quick quote.
Product Details
- Housing material Die-cast zinc
- Protection class shaft IP65
- Protection class IP67
- Ambient temperature -40…+85 °C
- Protection class housing IP65
- Output function Push-Pull 7272, with inverted signals
- Output type Incremental
- Encoder line Industrial-Line
- Electrical connection Connector, M12 × 1
- Shaft Type Solid shaft
- Resolution, incremental 5000 ppr
- Flange diameter Ø 58 mm
- Operating voltage 5…30 VDC
- Flange type Clamping flange
- Technology Optical
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
RI-10TA1C-2K5000-H1181 Description

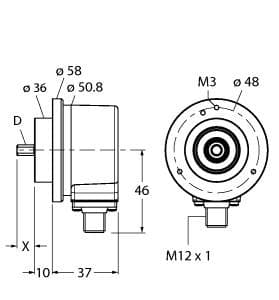

Turck RI-10TA1C-2K5000-H1181 is a compact incremental rotary encoder designed for 58mm clamping flange mounting. It operates within an ambient air temperature range of -40 to +85°C and features a solid shaft with optical sensing. This encoder is pre-equipped with a radial 8-pin M12 Eurofast QD male connector. It falls under the Type RI-10 series and has dimensions including a 2" casing diameter, 3/8" shaft diameter, and 5/8" shaft length. The encoder is protected to IP65 standards and requires a supply voltage of 5Vdc-30Vdc, supporting 6Vdc, 12Vdc, and 24Vdc. It can handle a maximum pulse frequency of 300kHz, equivalent to 3600rpm. The encoder is constructed from die-cast metal housing, with a stainless steel shaft, butyl rubber shaft seal, stainless steel disc table, and stainless steel packing ring. It features 1 x digital output (push-pull; 7272 compatible; 5Vdc-30Vdc) and includes protection functions against short-circuit, bearing lock, magnetic fields, and reverse polarity. The maximum rotational speed is 12000rpm, with a moment of inertia of 1.8 x 10-6kg.m2 and a resolution of 5000ppr (pulses/revolution). Its current consumption is 50mA with no load, and it can withstand a maximum radial load of 80 N and a maximum axial load of 40 N.
Related documents RI-10TA1C-2K5000-H1181 Specs
