PKW 4M-2 Turck Cordsets

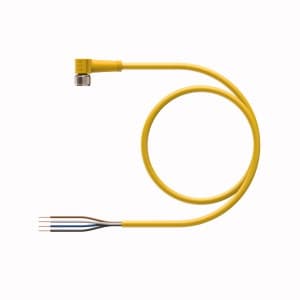

Turck PKW 4M-2 PKW 4M-2 Actuator and Sensor Cordset, Connection Cable
Turck

Part#:PKW 4M-2

Manufacturer:Turck

Alt. Part#:U2512-33

Product Lifecycle:Active

In-stock parts: 14

Sep 28, 2024

PKW 4M-2 Actuator and Sensor Cordset, Connection Cable

About the manufacturer: Turck is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the PKW 4M-2 Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    57 g
  • Cable length (L)
    2.0  m
  • Cable Jacket Color
    Yellow
  • Connector A - Number of Pins
    4
  • Approvals
    UL Listed, CSA, RoHS
  • Cable Jacket Material
    PVC
  • Current
    2 A
  • Number of Conductors
    4
  • Connector A
    M8 × 1
  • Application
    Actuator and Sensor
  • Connector A - Style
    Right angle, Female
  • Voltage
    125 V
  • Material coupling/housing A
    Brass

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PKW 4M-2 Description

Turck PKW 4M-2 is a double-ended cable or cordset featuring a 4.2mm cable sheath outer diameter and a length of 20 meters (approximately 65 feet). It is designed with a right-angled 4-pin M8 picofast female connector and a right-angled 4-pin M8 picofast male connector, both equipped with M8x1 threaded coupling nuts. This part falls under the sub-range of M8 picofast male 90° angled to M8 picofast female 90° angled. It is rated for a current of 2A and a voltage of 125Vac. The cable has a 4-wire configuration with a cross-section of 4 x #26AWG. It offers a degree of protection rated at IP67, NEMA 1, NEMA 3, NEMA 4, and NEMA 6P. The connectors are made from nickel-plated brass, and the cable jacket is TPU, with a black sheath color.

Related documents PKW 4M-2 Specs

PKW 4M-2 PKW 4M-x.pdf

This item can ship within 24h!

Manufacturer warranty

$18.30

Stock:

14

Select Qty:

$18.30

$18.30 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
