LI700P0-Q25LM0-ELIU5X3-H1151 Turck Linear Position Sensors

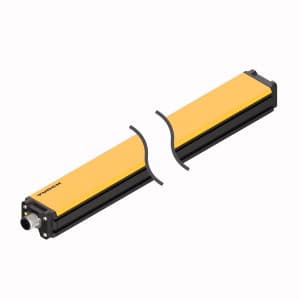

Turck LI700P0-Q25LM0-ELIU5X3-H1151 is an encoder (linear) from the Q-track Q25 series, designed as a contactless linear inductive positioning sensor with increased resolution. It features dimensions of H35mm x W25mm x D758mm, with a rectangular shape and is constructed from an aluminium / plastic PA6-GF30 anodized housing, with both the active area and sensing face made of plastic PA6-GF30. This part is pre-equipped with a 5-pin M12 Eurofast QD male connector for connectivity. It includes protection functions against short-circuit, wire-break, and reverse polarity. Operating on a supply voltage of 15Vdc-30Vdc (24Vdc nom.), it can function within an ambient air temperature range of -25 to +70°C. The encoder is IP67 rated for protection and offers a stroke length that includes a 29mm blind zone at both ends, a 1.5mm nominal distance, and a 700mm measurement span. It provides an analog output (0-10Vdc / 4-20mA; 16-bit resolution), with a current consumption of 50mA and a frequency of 5kHz / 5000Hz sampling rate. Measurement accuracy is detailed as 16-bits resolution (equivalent to 0.011mm / 11μm linear resolution), with ≤ 0.02% of full scale repeatability, ≤ +/-0.003% / K temperature drift, and ≤ 0.1% of full scale linearity deviation. The visual position indicator includes green / yellow / yellow flashing LED for multifunction and a green LED for power ON, with a resolution of 16-bit.
