Part#:H368

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

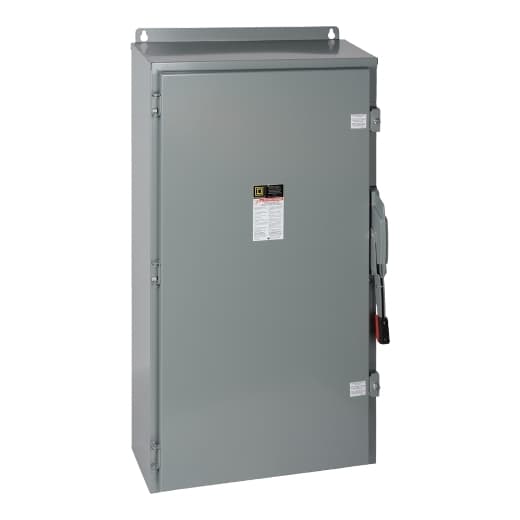

Schneider Electric H368 is a switch-disconnector with a main function as a fused heavy-duty single throw safety switch, belonging to the safety switches (Heavy Duty) sub-range. It features 3 poles and is rated for a current of 1200 A. The dimensions include a net height of 1756 mm, a net width of 930 mm, and a net depth of 451 mm. It operates via a toggle mode. The H368 has a short circuit breaking rating of 10kA maximum with fuse types H or K and 200kA maximum with fuse types R, J, or L. It is equipped with lugs type terminals and is designed for a rated voltage (AC) of 600 V phase-to-phase.

Product Details

  • Maximum Horse Power Rating
    200 hp 480 V at AC 50-60 Hz for 3 phase conforming to NEC 240.6 500 hp 480 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52 250 hp 600 V at AC 50-60 Hz for 3 phase conforming to NEC 240.6 500 hp 600 V at AC 50-60 Hz for 3 phase conform
  • Net Weight
    369.05 lb(US) (167.4 kg)
  • Width
    36.62 in (930.15 mm)
  • Height
    69.13 in (1755.90 mm)
  • Depth
    17.75 in (450.85 mm)
  • Tightening Torque
    375 lbf.in (42.37 N.m) 0.13…0.59 in² (85.01…380 mm²) (AWG 3/0...750 kcmil)
  • Wire Size
    AWG 3/0...750 kcmil copper or aluminium
  • Wiring Configuration
    3-wire
  • Short Circuit Current Rating
    200 kA maximum L
  • Mounting Type
    Surface
  • Electrical Connection
    Lugs
  • Fuse Type
    L
  • Enclosure Rating
    NEMA 1 steel
  • Device Application
    Heavy application
  • Phase
    3 phase
  • Factory Installed Neutral
    None
  • Current Rating
    1200 A
  • Voltage Rating
    600 V AC/DC
  • Disconnect Type
    Fusible disconnect
  • Number Of Poles
    3
  • Product
    Single Throw Safety Switch
  • Duty Rating
    Heavy duty

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of H368 on Powermatic Associates is $17,507.00. Order now.
