Name: H150F
Brand: Schneider Electric

LC1D806BD

$447.00

Schneider Electric LC1D806BD is a magnetic contactor from the Deca sub-range, designed for ring-lugs connections. It features 3 poles (3P; 3NO) and is rated for a current of 125A (AC-1) and 80A (440Vac; AC-3). This contactor is suitable for DIN rail mounting and has a net width of 85 mm. It offers a degree of protection of IP20 and operates with a control voltage (DC) of 20.4-26.4Vdc (24Vdc nom.; 0.85...1.1 x Uc). The rated operating voltage (Ue) is 1000 V, and it includes 1 normally open (NO) auxiliary contact. The rated impulse voltage (Uimp) is 8 kV. Its rated active power ranges from 22kW (220-230Vac; AC-3) to 55kW (500Vac; AC-3), with specific ratings for various voltages up to 1000Vac. It also features 1 normally closed (NC) auxiliary contact and instantaneous auxiliary contacts type of 1NO+1NC. The rated power in horsepower (HP) varies from 7.5HP at 115Vac single-phase to 60HP at 575-600Vac 3-phase. The mechanical durability of the LC1D806BD is rated at 4,000,000 operations, and its electrical durability with load is 1,500,000 operations. The rated voltage (AC) phase-to-phase is 1000 V.

Schneider Electric

MH30703P17F2200

Verified stock: 0

Schneider Electric MH30703P17F2200 is an AC servo motor characterized by a 70x70mm flange mounting mode and operates within an ambient air temperature range of -20 to +40°C. It features an absolute multi-turn 16ppr SinCos encoder, a parallel key shaft, a holding brake, and triple motor stacks designed for optimized torque and speed of rotation with medium inertia. The connection type is a rotatable right-angled connector, and it supports a supply voltage range of 115Vac to 480Vac, including specific voltages such as 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, 415Vac, and 440Vac. This part falls under the servo motors sub-range, offers a degree of protection of IP65, and utilizes the HIPERFACE communication protocol. It has a rotational speed of 5000rpm, a stall torque of 3.4Nm, a rated active power of 1.3kW or 1300W, a moment of inertia of 4kg.cm2, a rated power of 1.8HP, a nominal torque of 2.3Nm, and a maximum torque of 10.2Nm.

Schneider Electric

MH30702P06F2200

Verified stock: 0

Schneider Electric MH30702P06F2200 is an AC servo motor characterized by its 70x70mm flange mounting mode and designed for operation within an ambient air temperature range of -20 to +40°C. This motor features an absolute single-turn 16ppr SinCos encoder, a smooth shaft with a holding brake, and double motor stacks that are optimized for torque and speed of rotation, catering to medium-inertia applications. It comes with a rotatable right-angled connector for connectivity and supports a wide supply voltage range from 115Vac to 480Vac, including specific voltages such as 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, 415Vac, and 440Vac. As part of the Servo motors sub-range, it offers a degree of protection of IP65 and utilizes the HIPERFACE communication protocol. The motor achieves a rotational speed of 5500rpm, a stall torque of 2.5Nm, and is rated at 1.2kW (1200W) or 1.6HP in terms of active and rated power, respectively. It has a moment of inertia of 3.3kg.cm2, with a nominal torque of 1.9Nm and a maximum torque capability of 7.4Nm.

Schneider Electric

EDB14030

Verified stock: 0

Square D by Schneider Electric EDB14030 is a Miniature Circuit Breaker (MCB) designed for bolt-on mounting with a visual trip indicator. It features lugs type terminals and an aluminium lugs connection. This MCB operates at a rated voltage of 277 V AC, with a rated current of 30A and is suitable for a single pole configuration. It supports a wire cross-section of 14-6AWG for one copper cable. The EDB14030 offers protection functions against short-circuit and overload conditions, serving as both an Equipment Protection Device (EPD) and a Circuit Breaker (CB) with a breaking capacity code D. It has a short circuit breaking rating of 25kA at 120Vac, 18kA at 240Vac, and 18kA at 277Vac. The thermal-magnetic trip unit has a protection setting with a trip unit rating of 875A.

Schneider Electric

BSH1402T31F2P

Verified stock: 0

Schneider Electric BSH1402T31F2P is an AC servo motor within the Servo motors sub-range, featuring an absolute single-turn 128ppr SinCos encoder, a keyed shaft with holding brake, and double motor stacks optimized for low-inertia and speed of rotation. It operates on a supply voltage range of 115Vac-480Vac, including specific voltages such as 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, 415Vac, and 440Vac. The connection is facilitated by a rotatable right-angled connector, and it boasts an IP65 degree of protection. The rated current varies with speed and voltage: 20.4A at 1500rpm and 115Vac, 15.2A at 3000rpm for both 230Vac and 400Vac, and 12.2A at 3600rpm and 480Vac. It is designed for mounting with a 140x140mm flange and uses the HIPERFACE communication protocol. The dimensions are 192.5 mm in height, 311 mm in depth, and 140 mm in width. It operates efficiently within an ambient air temperature range of -20 to +40°C. The rotational speeds are 1500rpm at 115Vac, 3000rpm at both 230Vac and 400Vac, and 3600rpm at 480Vac. The rated active power is 2.69kW at 1500rpm and 115Vac, 3.86kW at 3000rpm for both 230Vac and 400Vac, and 3.66kW at 3600rpm and 480Vac. Maximum torque is 60.1Nm, with a stall torque of 19.5Nm, and operational torques of 17.1Nm at 1500rpm and 115Vac, 12.3Nm at 3000rpm for both 230Vac and 400Vac, and 9.7Nm at 3600rpm and 480Vac. The moment of inertia is 14.48kg.cm2.

Schneider Electric

NQ430L4C

$1,980.00

Verified stock: 1

Square D by Schneider Electric NQ430L4C is a panelboard designed for three-phase (3PH-4W) networks, featuring a copper busbar and rated for a current of 400A. It accommodates a voltage of 240Vac and 48Vdc, suitable for a variety of applications. The dimensions of this panelboard are H50" x W20", providing 30 spaces for circuits. It supports a cross-section range from 1/0AWG to 750kcmil for both line and neutral aluminium lugs, allowing for flexible installation options. This panelboard is specifically crafted to house 30 circuits, ensuring ample capacity for electrical distribution needs.

Schneider Electric

MH31002P12F2200

Verified stock: 0

Schneider Electric MH31002P12F2200 is an AC servo motor characterized by a 100x100mm flange mounting mode and operates within an ambient air temperature range of -20 to +40°C. It features an absolute multi-turn 128ppr SinCos encoder, a parallel key shaft with a holding brake, and double motor stacks designed for optimized torque and speed of rotation with medium inertia. The connection is facilitated by a rotatable right-angled connector, and it supports a wide supply voltage range from 115Vac to 480Vac, including specific voltages such as 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, 415Vac, and 440Vac. This servo motor, part of the Servo motors sub-range, offers a degree of protection rated at IP65 and utilizes the HIPERFACE communication protocol. It achieves a rotational speed of 4000rpm, a stall torque of 6Nm, and is rated at 1.2kW or 1200W of active power, equivalent to 2.7HP. The moment of inertia is specified as 6.4kg.cm2, with a nominal torque of 4.2Nm and a maximum torque capacity of 18Nm.

Schneider Electric

MH30703P07F2200

Verified stock: 0

Schneider Electric MH30703P07F2200 is an AC servo motor characterized by its 70x70mm flange mounting mode and operates within an ambient air temperature range of -20 to +40°C. This motor features an absolute multi-turn 16ppr SinCos encoder, a smooth shaft with a holding brake, and triple (3) motor stacks designed for optimized torque and speed of rotation, catering to medium-inertia applications. It comes with a rotatable right-angled connector for flexible installation and supports a wide supply voltage range from 115Vac to 480Vac, including specific voltages such as 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, 415Vac, and 440Vac. Part of the Servo motors sub-range, it boasts an IP65 degree of protection, utilizes the HIPERFACE communication protocol, and achieves a rotational speed of 5000rpm. The motor has a stall torque of 3.4Nm, a rated active power of 1.3kW (1300W) or 1.8HP, a moment of inertia of 4kg.cm^2, a nominal torque of 2.3Nm, and can reach a maximum torque of 10.2Nm.

Schneider Electric

LC1D806BD

$447.00

Verified stock: 0

Schneider Electric LC1D806BD is a magnetic contactor from the Deca sub-range, designed for ring-lugs connections. It features 3 poles (3P; 3NO) and is rated for a current of 125A (AC-1) and 80A (440Vac; AC-3). This contactor is suitable for DIN rail mounting and has a net width of 85 mm. It offers a degree of protection of IP20 and operates with a control voltage (DC) of 20.4-26.4Vdc (24Vdc nom.; 0.85...1.1 x Uc). The rated operating voltage (Ue) is 1000 V, and it includes 1 normally open (NO) auxiliary contact. The rated impulse voltage (Uimp) is 8 kV. Its rated active power ranges from 22kW (220-230Vac; AC-3) to 55kW (500Vac; AC-3), with specific ratings for various voltages up to 1000Vac. It also features 1 normally closed (NC) auxiliary contact and instantaneous auxiliary contacts type of 1NO+1NC. The rated power in horsepower (HP) varies from 7.5HP at 115Vac single-phase to 60HP at 575-600Vac 3-phase. The mechanical durability of the LC1D806BD is rated at 4,000,000 operations, and its electrical durability with load is 1,500,000 operations. The rated voltage (AC) phase-to-phase is 1000 V.

Schneider Electric

MH30703P17F2200

Verified stock: 0

Schneider Electric MH30703P17F2200 is an AC servo motor characterized by a 70x70mm flange mounting mode and operates within an ambient air temperature range of -20 to +40°C. It features an absolute multi-turn 16ppr SinCos encoder, a parallel key shaft, a holding brake, and triple motor stacks designed for optimized torque and speed of rotation with medium inertia. The connection type is a rotatable right-angled connector, and it supports a supply voltage range of 115Vac to 480Vac, including specific voltages such as 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, 415Vac, and 440Vac. This part falls under the servo motors sub-range, offers a degree of protection of IP65, and utilizes the HIPERFACE communication protocol. It has a rotational speed of 5000rpm, a stall torque of 3.4Nm, a rated active power of 1.3kW or 1300W, a moment of inertia of 4kg.cm2, a rated power of 1.8HP, a nominal torque of 2.3Nm, and a maximum torque of 10.2Nm.

Schneider Electric

MH30702P06F2200

Verified stock: 0

Schneider Electric MH30702P06F2200 is an AC servo motor characterized by its 70x70mm flange mounting mode and designed for operation within an ambient air temperature range of -20 to +40°C. This motor features an absolute single-turn 16ppr SinCos encoder, a smooth shaft with a holding brake, and double motor stacks that are optimized for torque and speed of rotation, catering to medium-inertia applications. It comes with a rotatable right-angled connector for connectivity and supports a wide supply voltage range from 115Vac to 480Vac, including specific voltages such as 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, 415Vac, and 440Vac. As part of the Servo motors sub-range, it offers a degree of protection of IP65 and utilizes the HIPERFACE communication protocol. The motor achieves a rotational speed of 5500rpm, a stall torque of 2.5Nm, and is rated at 1.2kW (1200W) or 1.6HP in terms of active and rated power, respectively. It has a moment of inertia of 3.3kg.cm2, with a nominal torque of 1.9Nm and a maximum torque capability of 7.4Nm.

Schneider Electric

EDB14030

Verified stock: 0

Square D by Schneider Electric EDB14030 is a Miniature Circuit Breaker (MCB) designed for bolt-on mounting with a visual trip indicator. It features lugs type terminals and an aluminium lugs connection. This MCB operates at a rated voltage of 277 V AC, with a rated current of 30A and is suitable for a single pole configuration. It supports a wire cross-section of 14-6AWG for one copper cable. The EDB14030 offers protection functions against short-circuit and overload conditions, serving as both an Equipment Protection Device (EPD) and a Circuit Breaker (CB) with a breaking capacity code D. It has a short circuit breaking rating of 25kA at 120Vac, 18kA at 240Vac, and 18kA at 277Vac. The thermal-magnetic trip unit has a protection setting with a trip unit rating of 875A.

Schneider Electric

BSH1402T31F2P

Verified stock: 0

Schneider Electric BSH1402T31F2P is an AC servo motor within the Servo motors sub-range, featuring an absolute single-turn 128ppr SinCos encoder, a keyed shaft with holding brake, and double motor stacks optimized for low-inertia and speed of rotation. It operates on a supply voltage range of 115Vac-480Vac, including specific voltages such as 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, 415Vac, and 440Vac. The connection is facilitated by a rotatable right-angled connector, and it boasts an IP65 degree of protection. The rated current varies with speed and voltage: 20.4A at 1500rpm and 115Vac, 15.2A at 3000rpm for both 230Vac and 400Vac, and 12.2A at 3600rpm and 480Vac. It is designed for mounting with a 140x140mm flange and uses the HIPERFACE communication protocol. The dimensions are 192.5 mm in height, 311 mm in depth, and 140 mm in width. It operates efficiently within an ambient air temperature range of -20 to +40°C. The rotational speeds are 1500rpm at 115Vac, 3000rpm at both 230Vac and 400Vac, and 3600rpm at 480Vac. The rated active power is 2.69kW at 1500rpm and 115Vac, 3.86kW at 3000rpm for both 230Vac and 400Vac, and 3.66kW at 3600rpm and 480Vac. Maximum torque is 60.1Nm, with a stall torque of 19.5Nm, and operational torques of 17.1Nm at 1500rpm and 115Vac, 12.3Nm at 3000rpm for both 230Vac and 400Vac, and 9.7Nm at 3600rpm and 480Vac. The moment of inertia is 14.48kg.cm2.

Schneider Electric

NQ430L4C

$1,980.00

Verified stock: 1

Square D by Schneider Electric NQ430L4C is a panelboard designed for three-phase (3PH-4W) networks, featuring a copper busbar and rated for a current of 400A. It accommodates a voltage of 240Vac and 48Vdc, suitable for a variety of applications. The dimensions of this panelboard are H50" x W20", providing 30 spaces for circuits. It supports a cross-section range from 1/0AWG to 750kcmil for both line and neutral aluminium lugs, allowing for flexible installation options. This panelboard is specifically crafted to house 30 circuits, ensuring ample capacity for electrical distribution needs.

Schneider Electric

MH31002P12F2200

Verified stock: 0

Schneider Electric MH31002P12F2200 is an AC servo motor characterized by a 100x100mm flange mounting mode and operates within an ambient air temperature range of -20 to +40°C. It features an absolute multi-turn 128ppr SinCos encoder, a parallel key shaft with a holding brake, and double motor stacks designed for optimized torque and speed of rotation with medium inertia. The connection is facilitated by a rotatable right-angled connector, and it supports a wide supply voltage range from 115Vac to 480Vac, including specific voltages such as 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, 415Vac, and 440Vac. This servo motor, part of the Servo motors sub-range, offers a degree of protection rated at IP65 and utilizes the HIPERFACE communication protocol. It achieves a rotational speed of 4000rpm, a stall torque of 6Nm, and is rated at 1.2kW or 1200W of active power, equivalent to 2.7HP. The moment of inertia is specified as 6.4kg.cm2, with a nominal torque of 4.2Nm and a maximum torque capacity of 18Nm.

Schneider Electric

MH30703P07F2200

Verified stock: 0

Schneider Electric MH30703P07F2200 is an AC servo motor characterized by its 70x70mm flange mounting mode and operates within an ambient air temperature range of -20 to +40°C. This motor features an absolute multi-turn 16ppr SinCos encoder, a smooth shaft with a holding brake, and triple (3) motor stacks designed for optimized torque and speed of rotation, catering to medium-inertia applications. It comes with a rotatable right-angled connector for flexible installation and supports a wide supply voltage range from 115Vac to 480Vac, including specific voltages such as 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, 415Vac, and 440Vac. Part of the Servo motors sub-range, it boasts an IP65 degree of protection, utilizes the HIPERFACE communication protocol, and achieves a rotational speed of 5000rpm. The motor has a stall torque of 3.4Nm, a rated active power of 1.3kW (1300W) or 1.8HP, a moment of inertia of 4kg.cm^2, a nominal torque of 2.3Nm, and can reach a maximum torque of 10.2Nm.

Schneider Electric

LC1D806BD

$447.00

Verified stock: 0

Schneider Electric LC1D806BD is a magnetic contactor from the Deca sub-range, designed for ring-lugs connections. It features 3 poles (3P; 3NO) and is rated for a current of 125A (AC-1) and 80A (440Vac; AC-3). This contactor is suitable for DIN rail mounting and has a net width of 85 mm. It offers a degree of protection of IP20 and operates with a control voltage (DC) of 20.4-26.4Vdc (24Vdc nom.; 0.85...1.1 x Uc). The rated operating voltage (Ue) is 1000 V, and it includes 1 normally open (NO) auxiliary contact. The rated impulse voltage (Uimp) is 8 kV. Its rated active power ranges from 22kW (220-230Vac; AC-3) to 55kW (500Vac; AC-3), with specific ratings for various voltages up to 1000Vac. It also features 1 normally closed (NC) auxiliary contact and instantaneous auxiliary contacts type of 1NO+1NC. The rated power in horsepower (HP) varies from 7.5HP at 115Vac single-phase to 60HP at 575-600Vac 3-phase. The mechanical durability of the LC1D806BD is rated at 4,000,000 operations, and its electrical durability with load is 1,500,000 operations. The rated voltage (AC) phase-to-phase is 1000 V.

Schneider Electric

MH30703P17F2200

Verified stock: 0

Schneider Electric MH30703P17F2200 is an AC servo motor characterized by a 70x70mm flange mounting mode and operates within an ambient air temperature range of -20 to +40°C. It features an absolute multi-turn 16ppr SinCos encoder, a parallel key shaft, a holding brake, and triple motor stacks designed for optimized torque and speed of rotation with medium inertia. The connection type is a rotatable right-angled connector, and it supports a supply voltage range of 115Vac to 480Vac, including specific voltages such as 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, 415Vac, and 440Vac. This part falls under the servo motors sub-range, offers a degree of protection of IP65, and utilizes the HIPERFACE communication protocol. It has a rotational speed of 5000rpm, a stall torque of 3.4Nm, a rated active power of 1.3kW or 1300W, a moment of inertia of 4kg.cm2, a rated power of 1.8HP, a nominal torque of 2.3Nm, and a maximum torque of 10.2Nm.

Schneider Electric

MH30702P06F2200

Verified stock: 0

Schneider Electric MH30702P06F2200 is an AC servo motor characterized by its 70x70mm flange mounting mode and designed for operation within an ambient air temperature range of -20 to +40°C. This motor features an absolute single-turn 16ppr SinCos encoder, a smooth shaft with a holding brake, and double motor stacks that are optimized for torque and speed of rotation, catering to medium-inertia applications. It comes with a rotatable right-angled connector for connectivity and supports a wide supply voltage range from 115Vac to 480Vac, including specific voltages such as 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, 415Vac, and 440Vac. As part of the Servo motors sub-range, it offers a degree of protection of IP65 and utilizes the HIPERFACE communication protocol. The motor achieves a rotational speed of 5500rpm, a stall torque of 2.5Nm, and is rated at 1.2kW (1200W) or 1.6HP in terms of active and rated power, respectively. It has a moment of inertia of 3.3kg.cm2, with a nominal torque of 1.9Nm and a maximum torque capability of 7.4Nm.

Schneider Electric

EDB14030

Verified stock: 0

Square D by Schneider Electric EDB14030 is a Miniature Circuit Breaker (MCB) designed for bolt-on mounting with a visual trip indicator. It features lugs type terminals and an aluminium lugs connection. This MCB operates at a rated voltage of 277 V AC, with a rated current of 30A and is suitable for a single pole configuration. It supports a wire cross-section of 14-6AWG for one copper cable. The EDB14030 offers protection functions against short-circuit and overload conditions, serving as both an Equipment Protection Device (EPD) and a Circuit Breaker (CB) with a breaking capacity code D. It has a short circuit breaking rating of 25kA at 120Vac, 18kA at 240Vac, and 18kA at 277Vac. The thermal-magnetic trip unit has a protection setting with a trip unit rating of 875A.

Schneider Electric

BSH1402T31F2P

Verified stock: 0

Schneider Electric BSH1402T31F2P is an AC servo motor within the Servo motors sub-range, featuring an absolute single-turn 128ppr SinCos encoder, a keyed shaft with holding brake, and double motor stacks optimized for low-inertia and speed of rotation. It operates on a supply voltage range of 115Vac-480Vac, including specific voltages such as 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, 415Vac, and 440Vac. The connection is facilitated by a rotatable right-angled connector, and it boasts an IP65 degree of protection. The rated current varies with speed and voltage: 20.4A at 1500rpm and 115Vac, 15.2A at 3000rpm for both 230Vac and 400Vac, and 12.2A at 3600rpm and 480Vac. It is designed for mounting with a 140x140mm flange and uses the HIPERFACE communication protocol. The dimensions are 192.5 mm in height, 311 mm in depth, and 140 mm in width. It operates efficiently within an ambient air temperature range of -20 to +40°C. The rotational speeds are 1500rpm at 115Vac, 3000rpm at both 230Vac and 400Vac, and 3600rpm at 480Vac. The rated active power is 2.69kW at 1500rpm and 115Vac, 3.86kW at 3000rpm for both 230Vac and 400Vac, and 3.66kW at 3600rpm and 480Vac. Maximum torque is 60.1Nm, with a stall torque of 19.5Nm, and operational torques of 17.1Nm at 1500rpm and 115Vac, 12.3Nm at 3000rpm for both 230Vac and 400Vac, and 9.7Nm at 3600rpm and 480Vac. The moment of inertia is 14.48kg.cm2.

Schneider Electric

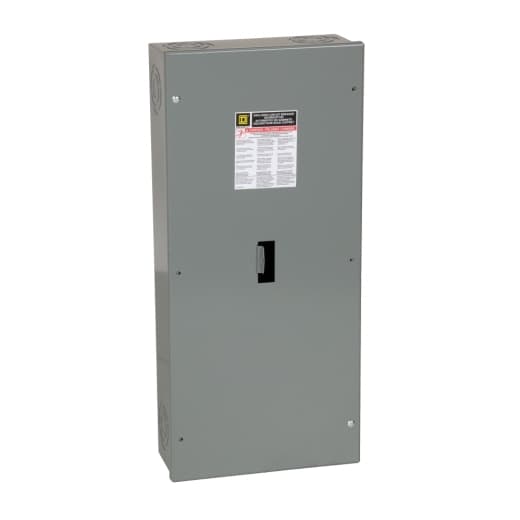

H150F Schneider Electric Electrical Load Centers

Part#:H150F

Manufacturer:Schneider Electric

Product condition

H150F Description

Relevant products

NQ430L4C

MH31002P12F2200

MH30703P07F2200

LC1D806BD

MH30703P17F2200
