MNS-1R SAB Cord Grips

MNS-1R on Powermatic Associates
SAB

Part#:MNS-1R

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

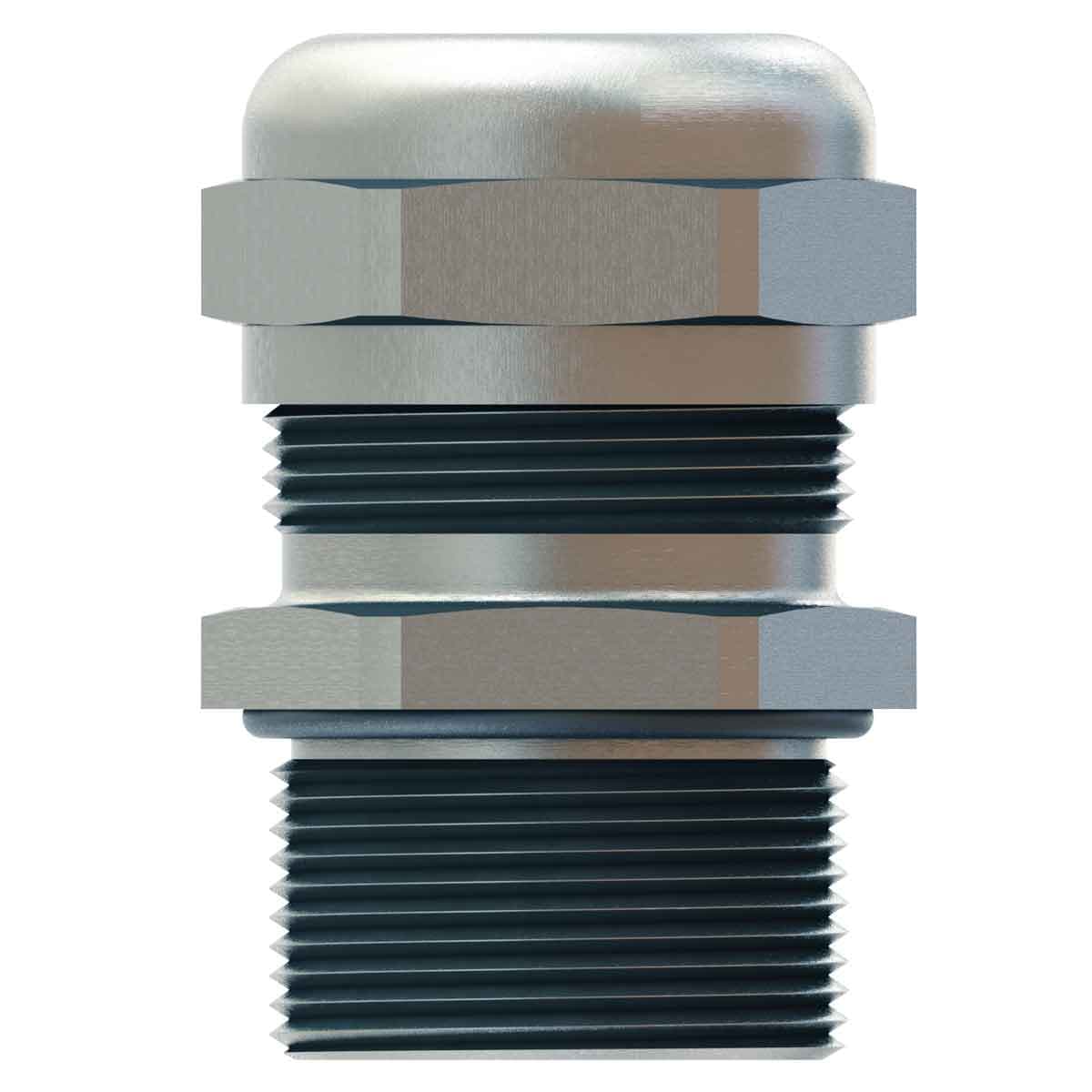

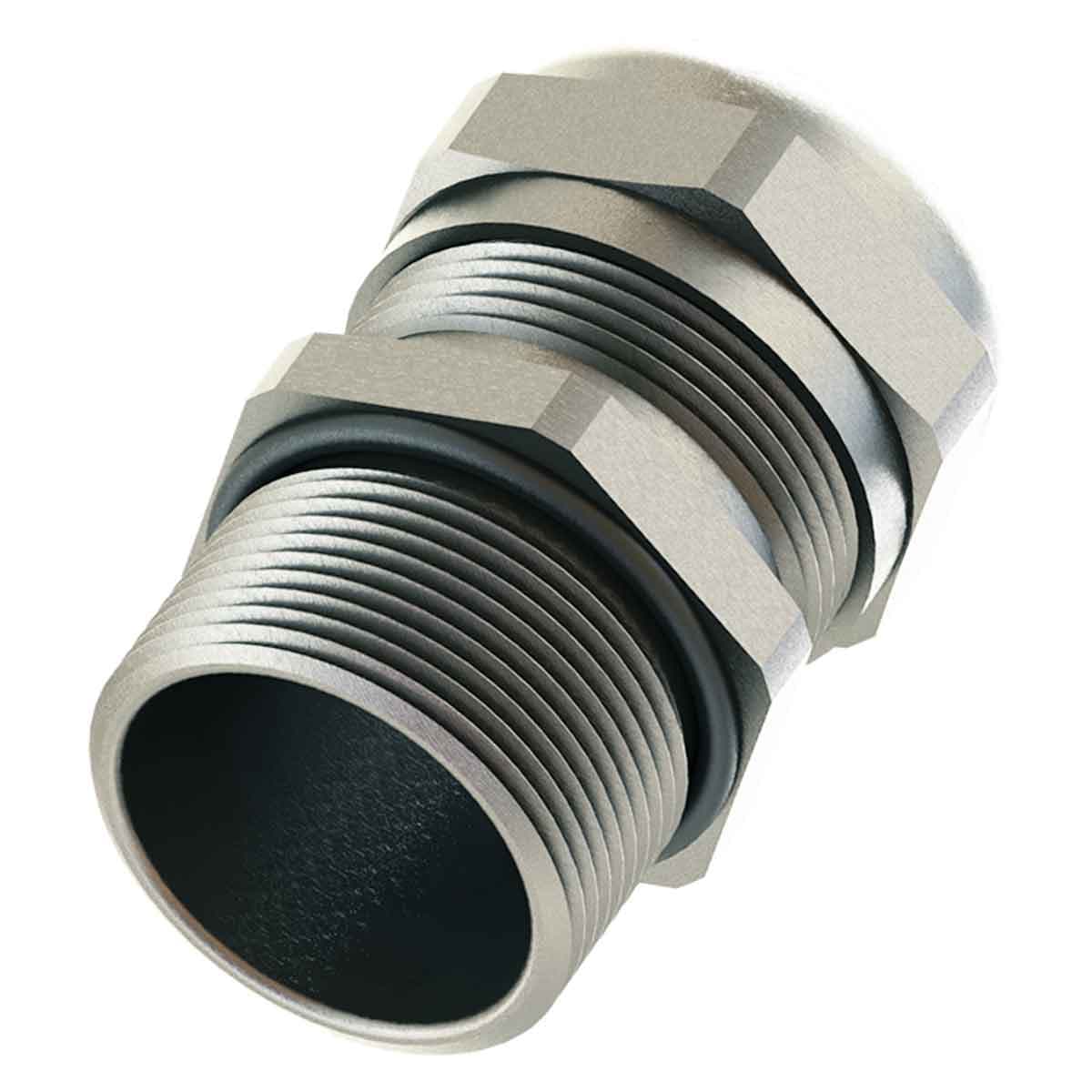

SAB MNS-1R Nickel Plated Brass Dome Cap Cord Grip with reducer bushing and NPT 1" threads

About the manufacturer: SAB is one of the manufacturers that offers Cord Grips that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the MNS-1R SAB price in the box on the right side or send a quick quote.

Product Details

  • Material
    Nickel Plated Brass
  • Approvals
    cURus, cULus, DNV, CE, RoHS
  • RoHS
    YES
  • Outside diameter (OD)
    1.909 in
  • CSA Certification
    NO
  • UL Certification
    NO
  • CE Certification
    YES
  • Thread Size
    NPT 1"
  • Thread Type
    NPT

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

MNS-1R Description

SAB MNS-1R Nickel Plated Brass Dome Cap Cord Grip with NPT threads is the ideal solution for your cable management needs. Made from durable Nickel Plated Brass this cord grip has NPT NPT 1" thread, ensuring a secure and reliable connection. Locknut LNM-1 is not included with this part, and needs to be purchased separately. This cord grip is designed to accommodate cables with a maximum outer diameter of 1.909 inches, providing excellent protection and strain relief.

Related documents MNS-1R Specs

MNS-1R CG_300_NPT.pdf
