8411490 SAB Servo Motor Cables

8411490 on Powermatic Associates
SAB

Part#:8411490

Manufacturer:SAB

Category:Servo Motor Cables

Product Lifecycle:Active

Get a quick Quote!

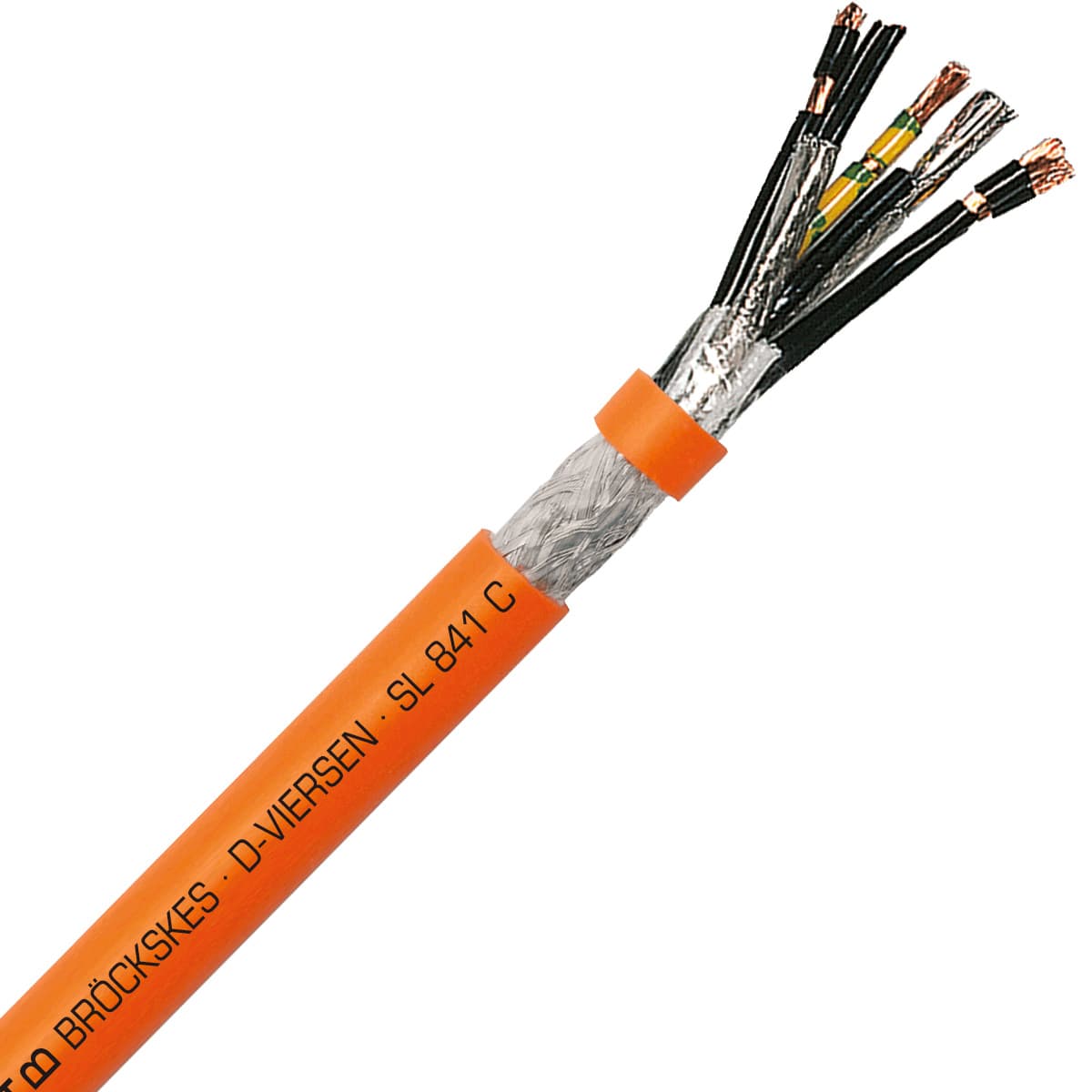

SL 841 C - 4 AWG/4c + 16 AWG/1pr, shielded continuous flex servo motor feedback cable, UL, CSA, CE, RoHS

About the manufacturer: SAB is one of the manufacturers that offers Servo Motor Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 8411490 SAB price in the box on the right side or send a quick quote.

Product Details

  • Color
    Orange
  • Weight
    432.27 g
  • Chemical Resistant
    YES
  • Oil Resistant
    Yes
  • UV Resistant
    YES
  • Halogen Free
    YES
  • Submersible
    NO
  • Direct Burial
    NO
  • Movement Type
    Stationary/Flexible
  • Application
    Power, Motor & Drives
  • Gauge
    4 AWG
  • Pair count
    1
  • Number of conductors
    6
  • Cable configuration
    4 AWG/4c + 16 AWG/1pr
  • Stranding type
    bare copper, fine strands
  • Insulation type
    TPE
  • Shielded
    Yes
  • Voltage
    1000
  • Approvals
    UR AWM, CSA AWM, CE, EAC, RoHS
  • RoHS
    YES
  • Temperature range
    -50°C to +90°C
  • Outside diameter (OD)
    1.071 in
  • UOM
    ft
  • CSA Certification
    YES
  • UL Certification
    YES
  • CE Certification
    YES

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

8411490 Description

SAB 8411490 Servo Motor Cable is part of SL 841 C product family, and is designed for Power, Motor & Drives applications. This cable is 4 AWG with 6 conductors, and shielded 4 AWG/4c + 16 AWG/1pr cable configuration. Featuring Orange color jacket, TPE insulation, and bare copper, fine strands stranding. It has 1.071 in OD, constructed to support Stationary/Flexible movement type, and rated for 1000 volts. This Power, Motor & Drives cable can operate in -50°C to +90°C temperature range, it is chemical resistant, oil resistant, UV resistand, Halogen free, and has following approvals: UR AWM, CSA AWM, CE, EAC, RoHS. This cable is an excellent choice for Power, Motor & Drives applications.

Related documents 8411490 Specs

8411490 SL_841_C.pdf
