1130402 SAB High Temperature Cables
Part#:1130402
Manufacturer:SAB
Product Lifecycle:Active
Get a quick Quote!

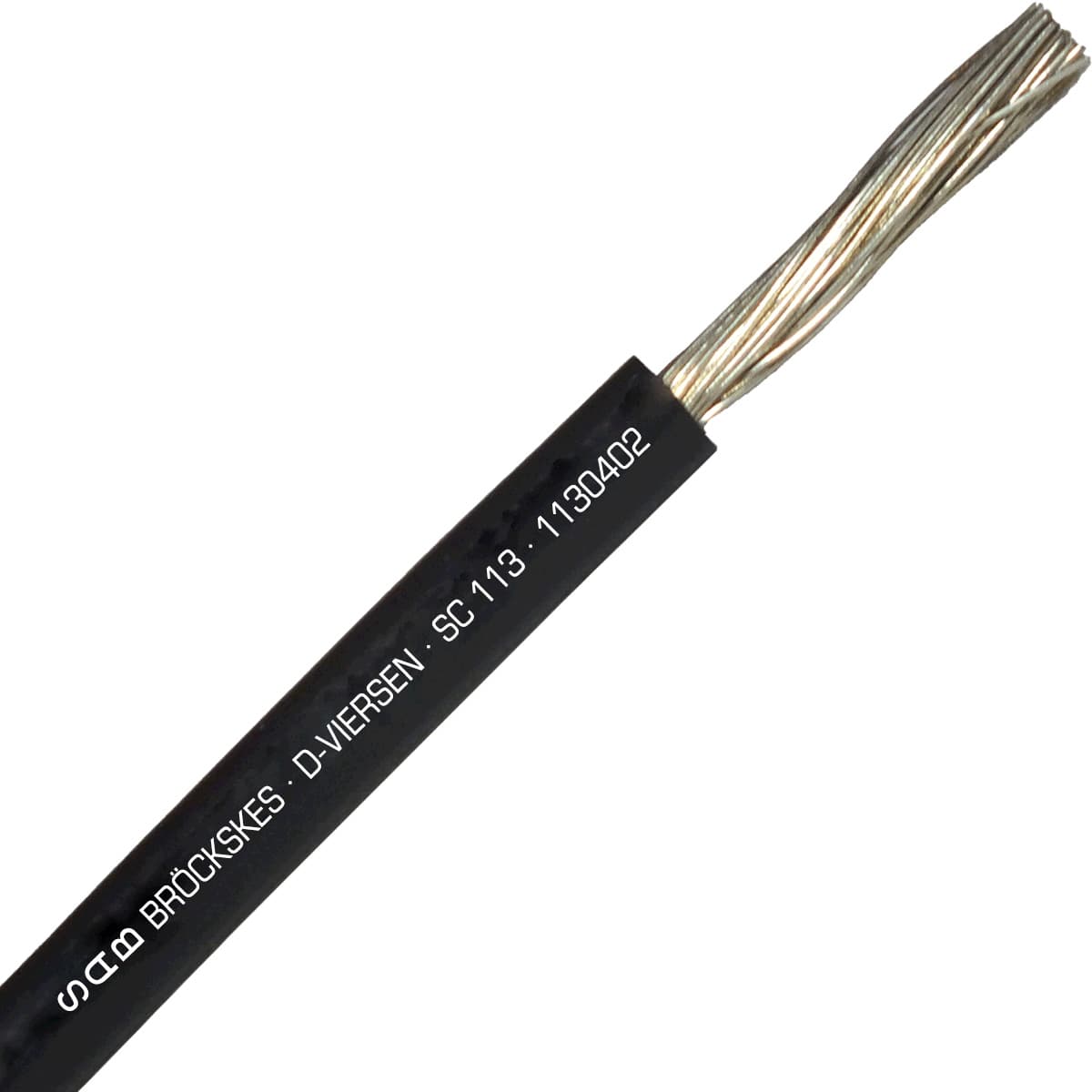

SC 113 - 12 AWG, high temperature Black silicone hook-up wire, CE, RoHS
About the manufacturer: SAB is one of the manufacturers that offers High Temperature Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.
Check out the 1130402 SAB price in the box on the right side or send a quick quote.
Product Details
- Weight 13.61 g
- Direct Burial NO
- Cable configuration 12 AWG/1c
- Temperature range -40°C to +180°C; +250°C (short-term use)
- UV Resistant YES
- Application Control, Power
- Color Black
- Chemical Resistant YES
- Movement Type Stationary/Flexible
- Approvals CE, RoHS
- CE Certification YES
- Halogen Free YES
- Gauge 12 AWG
- Oil Resistant No
- Submersible NO
- Number of conductors 1
- Voltage 500
- Outside diameter (OD) 0.157 in
- CSA Certification NO
- Shielded No
- RoHS YES
- UL Certification NO
- Stranding type tinned copper strands, class 5
- UOM ft
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
1130402 Description
SAB 1130402 High Temperature Cable is part of SC 113 product family, and is designed for Control, Power applications. This cable is 12 AWG with 1 conductors, and 12 AWG/1c cable configuration. Featuring Black color jacket, and tinned copper strands, class 5 stranding. It has 0.157 in OD, constructed to support Stationary/Flexible movement type, and rated for 500 volts. This Control, Power cable can operate in -40°C to +180°C; +250°C (short-term use) temperature range, it is chemical resistant, UV resistand, Halogen free, and has following approvals: CE, RoHS. This cable is an excellent choice for Control, Power applications.
