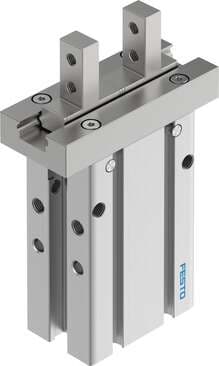

8116812 Festo Pneumatic Grippers

Product Details

• Operating pressure
  1 bar ... 8 bar
• Max. gripper jaw angular play ax, ay
  0 deg
• Mounting position
  Any
• Guide
  Ball guide
• Min. opening time at 6 bar
  50 ms
• Corrosion resistance class (CRC)
  0 - No corrosion stress
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Type of mounting
  Optionally: With internal thread and dowel pin
• Size
  16
• Max. gripper jaw backlash Sz
  0 mm
• Mode of operation
  Single-acting Closed
• Symbol
  00997348
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Maximum torque on gripper jaw, Mz static
  0.34 Nm
• Housing material
  Aluminum, anodized
• Stroke per gripper jaw
  6 mm
• Rotational symmetry
  ≤ 0.2 mm
• Gripper function
  Parallel
• Position sensing
  For proximity sensor
• Min. closing time at 6 bar
  52 ms
Mass moment of inertia
0.215 kgcm²
Maximum torque on gripper jaw, My static
0.68 Nm
Product weight
126 g
Gripper jaw material
High-alloy stainless steel
Max. interchangeability
0.2 mm
Number of gripper jaws
2
Type code
DHPC
Total gripping force at 6 bar, opening
101 N
Ambient temperature
-10 °C ... 60 °C
Maximum torque on gripper jaw, Mx static
0.34 Nm
Note on materials
Free of copper and PTFE RoHS-compliant
Pneumatic gripper repetition accuracy
≤ 0.02 mm
Design
Connection direction at side Positively driven motion sequence
Max. operating frequency of pneumatic gripper
3 Hz
Gripping force per gripper jaw at 6 bar, opening
50.5 N
Maximum force on gripper jaw Fz, static
49 N
Max. mass per external gripper finger
360 g
Pneumatic connection
M3

Related documents 8116812 Specs
