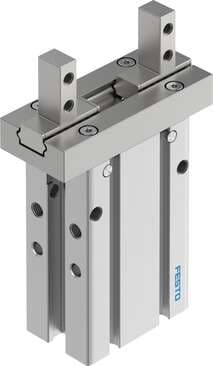

8116810 Festo Pneumatic Grippers

Product Details

• Operating pressure
  1 bar ... 8 bar
• Pneumatic gripper repetition accuracy
  ≤ 0.02 mm
• Symbol
  00997349
• Min. opening time at 6 bar
  18 ms
• Gripping force per gripper jaw at 6 bar, closing
  43.4 N
• Max. gripper jaw angular play ax, ay
  0 deg
• Number of gripper jaws
  2
• Size
  16
• Max. gripper jaw backlash Sz
  0 mm
• Stroke per gripper jaw
  6 mm
• Rotational symmetry
  ≤ 0.2 mm
• Mounting position
  Any
• Min. closing time at 6 bar
  17 ms
• Max. interchangeability
  0.2 mm
• Type code
  DHPC
• Design
  Connection direction at side Positively driven motion sequence
• Total gripping force at 6 bar, closing
  86.8 N
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Max. mass per external gripper finger
  360 g
• Pneumatic connection
  M3
Mode of operation
Single-acting Open
Position sensing
For proximity sensor
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
-10 °C ... 60 °C
Mass moment of inertia
0.215 kgcm²
Type of mounting
Optionally: With internal thread and dowel pin
Gripper function
Parallel
Guide
Ball guide
Max. operating frequency of pneumatic gripper
3 Hz
Corrosion resistance class (CRC)
0 - No corrosion stress
Maximum force on gripper jaw Fz, static
49 N
Product weight
126 g
Maximum torque on gripper jaw, Mx static
0.34 Nm
Note on materials
Free of copper and PTFE RoHS-compliant
Gripper jaw material
High-alloy stainless steel
Maximum torque on gripper jaw, My static
0.68 Nm
Maximum torque on gripper jaw, Mz static
0.34 Nm
Housing material
Aluminum, anodized

Related documents 8116810 Specs
