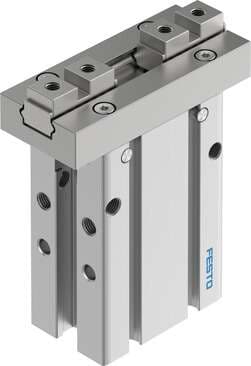

8116805 Festo Pneumatic Grippers

Product Details

• Size
  16
• Max. gripper jaw angular play ax, ay
  0 deg
• Number of gripper jaws
  2
• Type code
  DHPC
• Design
  Connection direction at side Positively driven motion sequence
• Min. closing time at 6 bar
  40 ms
• Mounting position
  Any
• Symbol
  00991894
• Position sensing
  For proximity sensor
• Max. operating frequency of pneumatic gripper
  3 Hz
• Corrosion resistance class (CRC)
  0 - No corrosion stress
• Maximum torque on gripper jaw, Mz static
  0.34 Nm
• Pneumatic connection
  M3
• Max. interchangeability
  0.2 mm
• Pneumatic gripper repetition accuracy
  ≤ 0.02 mm
• Operating pressure
  1 bar ... 8 bar
• Max. gripper jaw backlash Sz
  0 mm
• Gripper function
  Parallel
• Stroke per gripper jaw
  6 mm
• Rotational symmetry
  ≤ 0.2 mm
Guide
Ball guide
Min. opening time at 6 bar
40 ms
Mass moment of inertia
0.219 kgcm²
Maximum force on gripper jaw Fz, static
49 N
Mode of operation
Double-acting
Total gripping force at 6 bar, opening
125.4 N
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Ambient temperature
-10 °C ... 60 °C
Gripping force per gripper jaw at 6 bar, closing
53.9 N
Max. mass per external gripper finger
360 g
Product weight
124 g
Total gripping force at 6 bar, closing
107.8 N
Gripping force per gripper jaw at 6 bar, opening
62.7 N
Maximum torque on gripper jaw, My static
0.68 Nm
Note on materials
Free of copper and PTFE RoHS-compliant
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Maximum torque on gripper jaw, Mx static
0.34 Nm
Type of mounting
Optionally: With internal thread and dowel pin
Gripper jaw material
High-alloy stainless steel
Housing material
Aluminum, anodized
