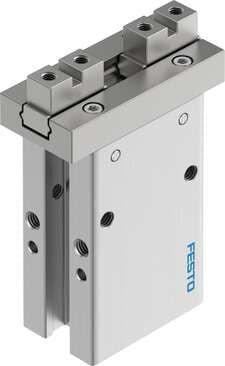

8116776 Festo Pneumatic Grippers

Product Details

• Stroke per gripper jaw
  4 mm
• Operating pressure
  2 bar ... 8 bar
• Type code
  DHPC
• Guide
  Ball guide
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Gripping force per gripper jaw at 6 bar, closing
  21.5 N
• Product weight
  59 g
• Max. interchangeability
  0.2 mm
• Number of gripper jaws
  2
• Gripper function
  Parallel
• Position sensing
  For proximity sensor
• Max. operating frequency of pneumatic gripper
  3 Hz
• Corrosion resistance class (CRC)
  0 - No corrosion stress
• Mass moment of inertia
  0.057 kgcm²
• Max. mass per external gripper finger
  120 g
• Note on materials
  Free of copper and PTFE RoHS-compliant
• Size
  10
• Rotational symmetry
  ≤ 0.2 mm
• Mode of operation
  Double-acting
• Total gripping force at 6 bar, opening
  51.2 N
Min. closing time at 6 bar
15 ms
Maximum torque on gripper jaw, Mx static
0.13 Nm
Pneumatic connection
M3
Max. gripper jaw backlash Sz
0 mm
Pneumatic gripper repetition accuracy
≤ 0.02 mm
Symbol
00991894
Min. opening time at 6 bar
15 ms
Gripping force per gripper jaw at 6 bar, opening
25.6 N
Maximum force on gripper jaw Fz, static
29 N
Maximum torque on gripper jaw, My static
0.27 Nm
Gripper jaw material
High-alloy stainless steel
Max. gripper jaw angular play ax, ay
0 deg
Mounting position
Any
Design
Connection direction downwards Positively driven motion sequence
Total gripping force at 6 bar, closing
43 N
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
-10 °C ... 60 °C
Maximum torque on gripper jaw, Mz static
0.13 Nm
Type of mounting
Optionally: With internal thread and dowel pin
Housing material
Aluminum, anodized

Related documents 8116776 Specs
