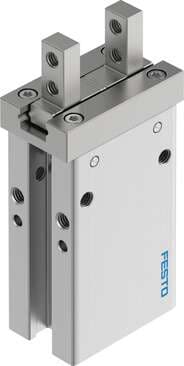

8116765 Festo Pneumatic Grippers

Product Details

• Stroke per gripper jaw
  2 mm
• Pneumatic gripper repetition accuracy
  ≤ 0.02 mm
• Mounting position
  Any
• Max. operating frequency of pneumatic gripper
  3 Hz
• Corrosion resistance class (CRC)
  0 - No corrosion stress
• Maximum torque on gripper jaw, Mx static
  0.13 Nm
• Product weight
  57 g
• Note on materials
  Free of copper and PTFE RoHS-compliant
• Size
  10
• Number of gripper jaws
  2
• Guide
  Ball guide
• Min. closing time at 6 bar
  26 ms
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Ambient temperature
  -10 °C ... 60 °C
• Maximum torque on gripper jaw, My static
  0.27 Nm
• Max. gripper jaw angular play ax, ay
  0 deg
• Rotational symmetry
  ≤ 0.2 mm
• Design
  Connection direction at side Positively driven motion sequence
• Total gripping force at 6 bar, opening
  39.2 N
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
Gripping force per gripper jaw at 6 bar, opening
19.6 N
Maximum torque on gripper jaw, Mz static
0.13 Nm
Pneumatic connection
M3
Gripper jaw material
High-alloy stainless steel
Operating pressure
3.5 bar ... 8 bar
Type code
DHPC
Gripper function
Parallel
Symbol
00997348
Maximum force on gripper jaw Fz, static
29 N
Max. mass per external gripper finger
120 g
Housing material
Aluminum, anodized
Max. interchangeability
0.2 mm
Max. gripper jaw backlash Sz
0 mm
Mode of operation
Single-acting Closed
Position sensing
For proximity sensor
Min. opening time at 6 bar
12 ms
Mass moment of inertia
0.045 kgcm²
Type of mounting
Optionally: With internal thread and dowel pin

Related documents 8116765 Specs
