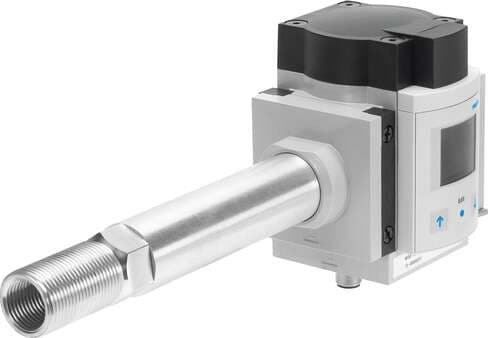

565375 Festo Flow Sensors

Product Details

• Flow measuring range end value
  1000 l/min
• Type code
  SFAM
• CE marking (see declaration of conformity)
  As per EU EMC directive As per EU RoHS directive
• Certification
  RCM compliance mark c UL us - Recognized (OL)
• Note on materials
  RoHS-compliant
• Operating pressure
  0 bar ... 16 bar
• Zero point repetition accuracy in ± %FS
  0.2 %FS
• Repetition accuracy margin in ± %FS
  0.8 %FS
• Switching element function
  N/C contact N/O contact
• End value output characteristic curve
  20 mA
• Reverse polarity protection
  for all electrical connections
• Display type
  Illuminated LCD blue
• Measuring principle
  Thermal
• Ambient temperature
  0 °C ... 50 °C
• Nominal temperature
  23 °C
• Flow characteristic curve, end value
  1000 l/min
• Max. load resistance of current output
  500 Ohm
• DC operating voltage range
  15 V ... 30 V
• Mounting position
  Horizontal
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
Certificate issuing authority
UL E322346
Flow direction
Unidirectional From left to right
Temperature of medium
0 °C ... 50 °C
Temperature co-efficient margin in ± %FS/K
typ. 0. 1%FS/K
Switching function
Window comparator or threshold value comparator, adjustable
Analog output
4 - 20 mA
Electrical connection
5-pin Plug, straight
Pneumatic connection
G1/2
Degree of protection
IP65
KC characters
KC EMC
Measured variable
Flow rate Consumption
Flow measuring range start value
10 l/min
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4] Nitrogen
Switching output
2x PNP or 2x NPN adjustable
Flow characteristic curve, start value
0 l/min
Max. output current
100 mA
Short-circuit protection
yes
Product weight
1100 g
Displayable unit(s)
l scfm
Accuracy of flow rate
± (3% o.m.v. + 0.3% FS)
Pressure influence of margin in ±%FS/bar
0.5 %FS/b.
Output characteristic curve initial value
4 mA
Type of mounting
On service unit
Housing material
Die-cast aluminum PA-reinforced
Pressure drop
< 100 mbar
