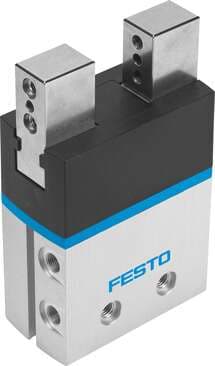

1254049 Festo Pneumatic Grippers

Product Details

• Max. interchangeability
  ≤ 0.2 mm
• Pneumatic gripper repetition accuracy
  < 0.02 mm
• Mode of operation
  Double-acting
• Symbol
  00991894
• Max. operating frequency of pneumatic gripper
  2 Hz
• Ambient temperature
  5 °C ... 60 °C
• Maximum torque on gripper jaw, Mz static
  30 Nm
• Pneumatic connection
  G1/8
• Stroke per gripper jaw
  7.5 mm
• Max. gripper jaw backlash Sz
  < 0.02 mm
• Type code
  DHPS
• Gripper function
  Parallel
• Total gripping force at 6 bar, closing
  450 N
• Min. opening time at 6 bar
  48 ms
• Mass moment of inertia
  3.831 kgcm²
• Relubrication interval for guidance elements
  10 MioCyc
• Type of mounting
  Optionally: Via through-hole and centering sleeve
• Housing material
  Wrought aluminum alloy Hard-anodized
• Design
  Lever Positively driven motion sequence
• Size
  25
Rotational symmetry
≤ 0.2 mm
Number of gripper jaws
2
Total gripping force at 6 bar, opening
500 N
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Gripping force per gripper jaw at 6 bar, opening
249 N
Maximum torque on gripper jaw, My static
30 Nm
Note on materials
RoHS-compliant
Mounting position
Any
Position sensing
For proximity sensor
Operating pressure
2 bar ... 8 bar
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Maximum force on gripper jaw Fz, static
350 N
Product weight
700 g
Cover cap material
PA
Max. gripper jaw angular play ax, ay
< 0.5 deg
Guide
Sliding guide
Min. closing time at 6 bar
63 ms
Corrosion resistance class (CRC)
1 - Low corrosion stress
Gripping force per gripper jaw at 6 bar, closing
228 N
Maximum torque on gripper jaw, Mx static
30 Nm
Max. mass per external gripper finger
350 g
Gripper jaw material
High-alloy stainless steel

Related documents 1254049 Specs
