TL50CGRA Banner Signal Towers

Banner TL50CGRA Compact Tower Light: 2-Color Audible Indicator; Voltage: 12-30 V dc or 24 V ac; Environmental Rating: IP50; Input: Bimodal; Colors: Green Red; 2 m (6.5 ft) Integral Cable
Banner

Part#:TL50CGRA

Manufacturer:Banner

Alt. Part#:95037

Product Lifecycle:Active

Get a quick Quote!

Compact Tower Light: 2-Color Audible Indicator; Voltage: 12-30 V dc or 24 V ac; Environmental Rating: IP50; Input: Bimodal; Colors: Green Red; 2 m (6.5 ft) Integral Cable

About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the TL50CGRA Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    181.4368 g
  • Country Of Origin
    MX

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

TL50CGRA Description

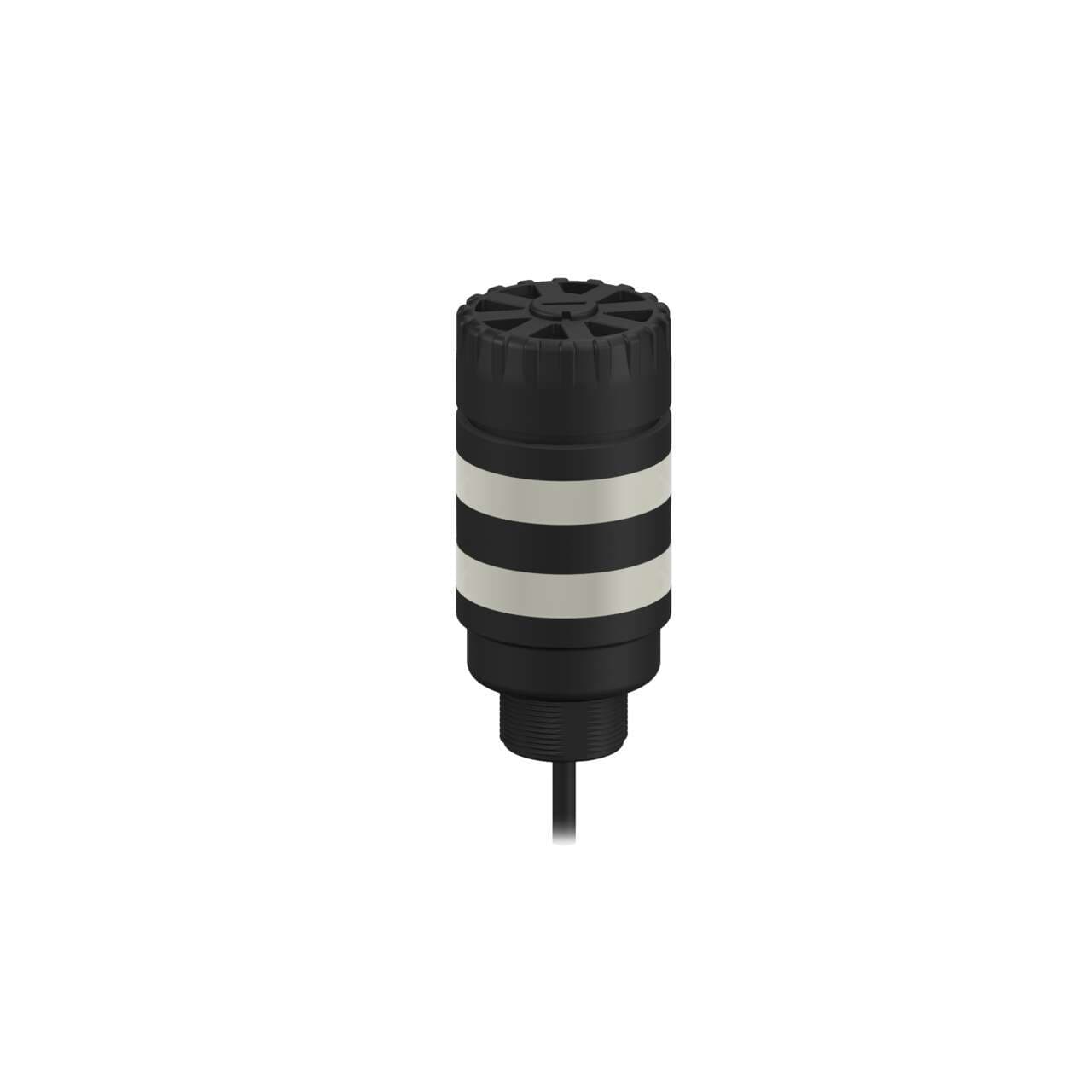

Banner Engineering TL50CGRA is a monolithic tower light from the Compact series, featuring a continuous sound 2-tiers 2-color G+R color pattern LED illumination. This audible compact tower or stack light is constructed with polycarbonate (PC) windows and segments, and an ABS base and covers. It has a diameter of 50mm / 2" and comes pre-wired with a 2m / 6.5ft 4-wire cable terminated with bare end flying leads. The housing is black, and it operates on a supply voltage of 24Vac or 18Vdc-30Vdc (24Vdc nom.). Designed for surface or base pole mounting with an M30 thread, it can operate in ambient air temperatures ranging from -20°C to +50°C. The TL50CGRA offers a degree of protection rated at IP50 NEMA 13 UL type 13, has a cylindrical shape, and consumes 135mA of current. It includes 2 x digital inputs for color control and 1 x digital input for alarm input, all supporting 18-30Vdc / 24Vac; PNP/NPN.

Related documents TL50CGRA Specs

TL50CGRA 179186.pdf

Manufacturer warranty

$186.00

Request a quote, and we will send availability within minutes.

Select Qty:

$186.00

$186.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
