SSA-EBM-11E Banner Emergency Stop Push Buttons

SSA-EBM-11E on Powermatic Associates
Banner
  • SSA-EBM-11E
  • SSA-EBM-11E

Part#:SSA-EBM-11E

Alt. Part#:69706

Manufacturer:Banner

Category:Emergency Stop Push Buttons

Product Lifecycle:Active

Product description

22 mm Metal E-Stop Button Kit; Kit Includes: 40 mm Actuator on Metal Shaft; Metal Mounting Adapter, 1 NC & 1 NO Contacts; 70 mm x 70 mm x 56 mm Plastic Enclosure, E-Stop Legend

Product Details

  • Weight
    299.37072 g
  • Country Of Origin
    IT
  • Contact Quantity
    1 NC, 1 NO
  • Button Diameter (mm)
    40
  • Contact Rating
    2 A @ 24 V dc
  • Dimensions (HxWxD mm )
    105 x 70 x 70
  • Max Operating Temperature ( °C)
    60
  • Actuator/Button Material
    Thermoplastic
  • Min Operating Temperature ( °C)
    -25
  • Mounting Thread/Style
    Flat
  • In-Series Diagnostics
    No
  • Feature: Illuminated
    No
  • Feature: Lockable
    No
  • Actuation
    Twist-to-Release
  • Device Type
    Push Button
  • Button Shroud
    No
  • Primary Housing Material
    Polycarbonate
  • Housing Style
    Base
  • IP Rating
    IP65

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SSA-EBM-11E on Powermatic Associates is $104.00. Order now.


About the product

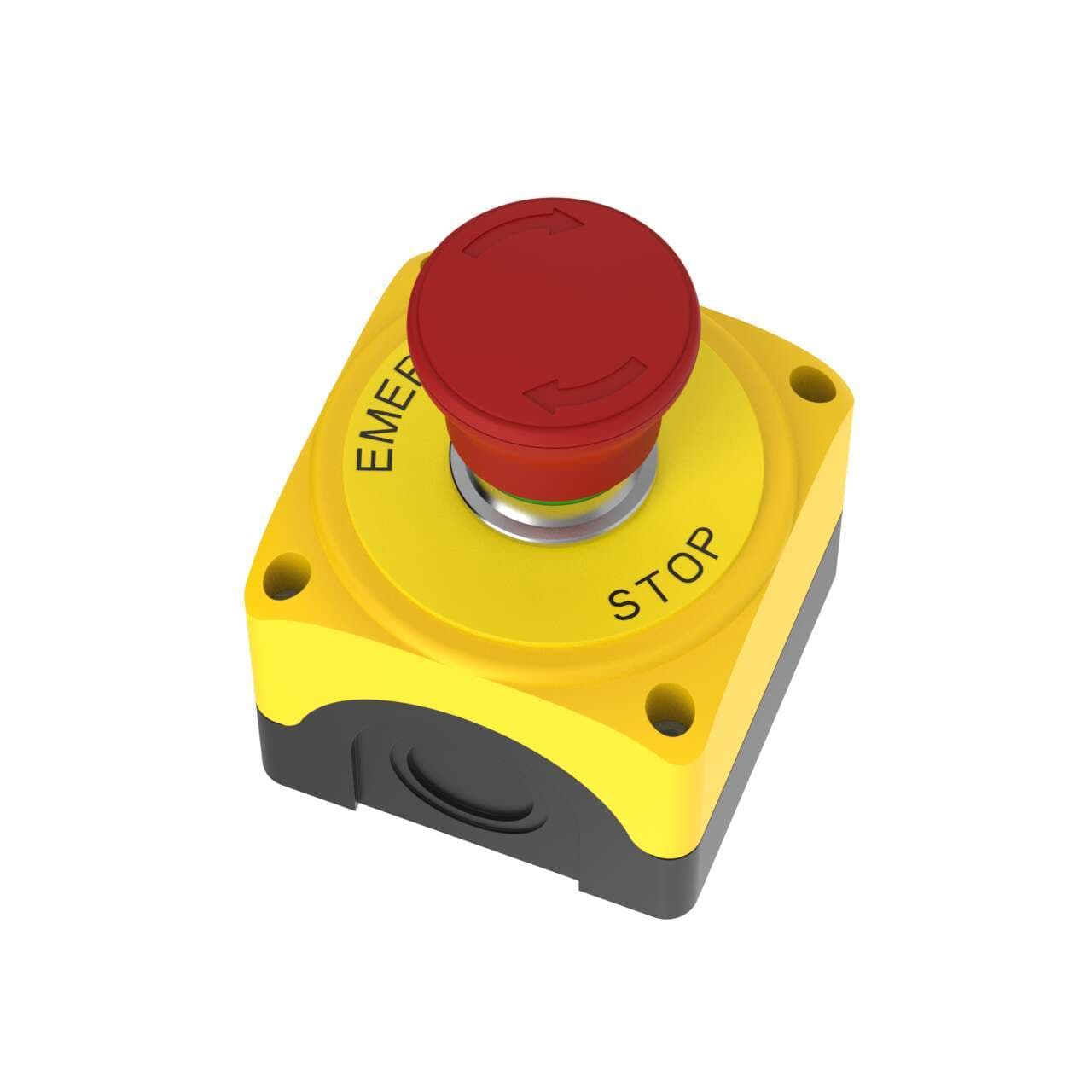

Banner Engineering SSA-EBM-11E is an enclosed emergency STOP (E-Stop) pushbutton designed with a polycarbonate (PC) base and features a 40mm mushroom head for easy activation. It offers a screw-clamp terminal connection for secure wiring and comes in a yellow and black housing with a red actuator for high visibility. The pushbutton is equipped with 1NO+1NC contacts, operates on a 24Vdc supply voltage, and is designed for flush mounting in a 22mm hole. It operates within an ambient air temperature range of -25°C to +60°C and has an IP65 degree of protection, ensuring durability in various environmental conditions. The operating mode is push-to-stop and stay-put (maintained/latched) with a twist-to-release mechanism. Additionally, it includes 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts for versatile connectivity options.
