SLSRBR30-450Q8 Banner Safety Light Curtains
Part#:SLSRBR30-450Q8
Manufacturer:Banner
Alt. Part#:74546
Product Lifecycle:Active
Get a quick Quote!
EZ-SCREEN Remote Blanking Receiver; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 450 mm (17.7 in); Housing Length: 522 mm (20.6 in); Connection: 8-pin M12 Connector
About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SLSRBR30-450Q8 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 707.60352 g
- Country Of Origin MX
- Feature: Integral Muting No
- Supply Current 275 mA max.
- Feature: ESD Safe No
- OSSD Rating 24 V dc at 0.5 A each
- Feature: End-to-End Sensing No
- Test Input No
- Trip/Latch Output Selectable
- Vibration 10-55 Hz at 0.35 mm
- System Type Receiver
- Housing Material Aluminum; Zinc; Acrylic
- Scan Code Selectable
- Short Protection Yes
- Fault Output No
- Auxiliary Output Yes
- Shock 10g at 16ms (6000 cycles)
- SIL Rating SIL3; CL3
- Electrical Safety Class III
- Resolution (mm) 30
- Response Time 13
- Reduced Resolution No
- Recovery Time 25-152 / 81-495
- PL Rating Ple
- Fixed Blanking Yes
- Housing Finish Yellow Polyester
- IP Rating IP65
- Operating Distance (m) 0.1 - 18
- Operating Temperature 0 to +55 deg. C; RH 95%
- Operating Voltage 24 V dc +/- 15%
- Number of Pins (Receiver/Emitter) 8
- External Monitoring Device 1 or 2 Channel
- Overall Length (mm) 522
- Primary Housing Material Aluminum
- Dimensions WxD (mm) 36 x 45.2
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Defined Area Height (mm) 450
- Connector Type M12
- Safety Level Type 4
- low-profile No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
SLSRBR30-450Q8 Description

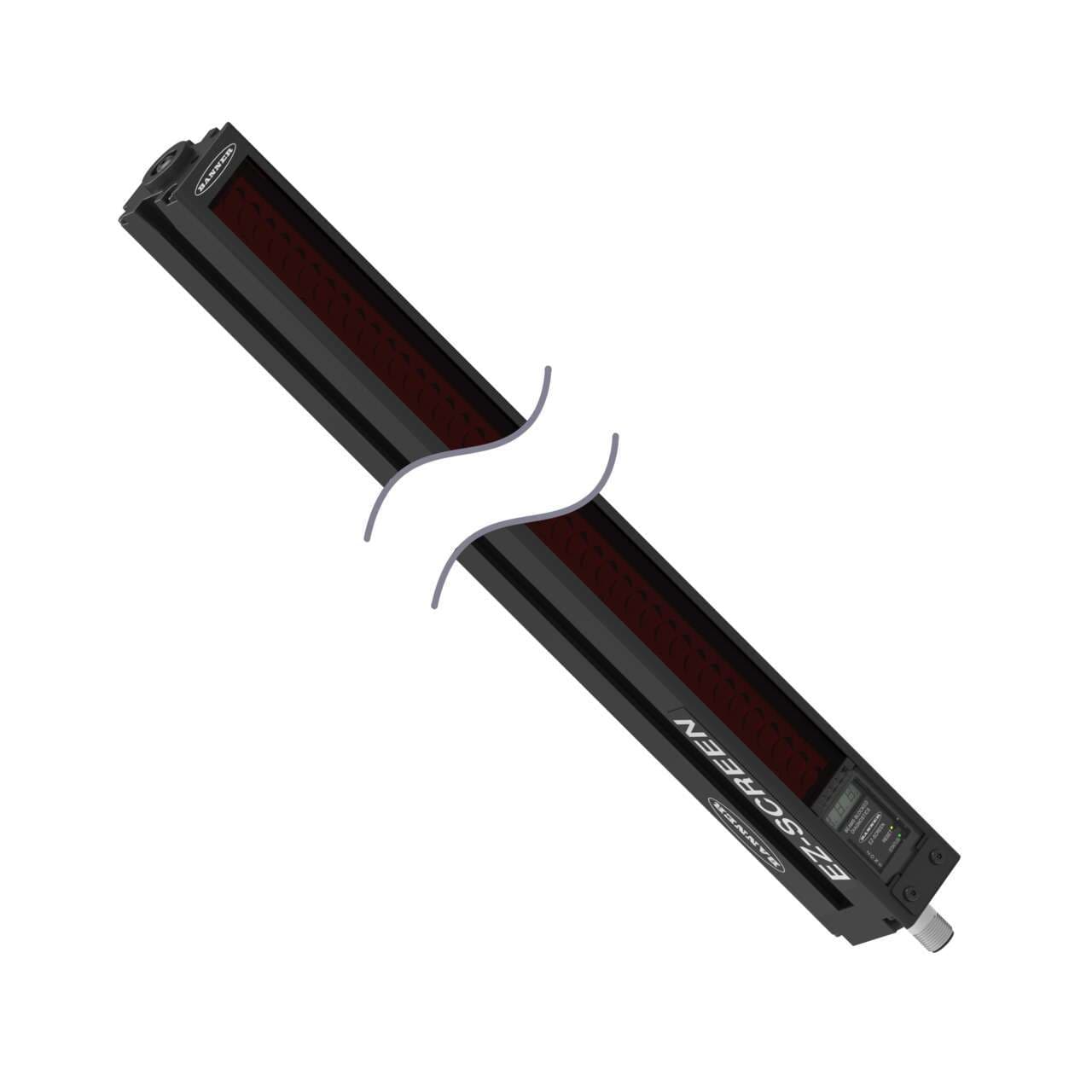

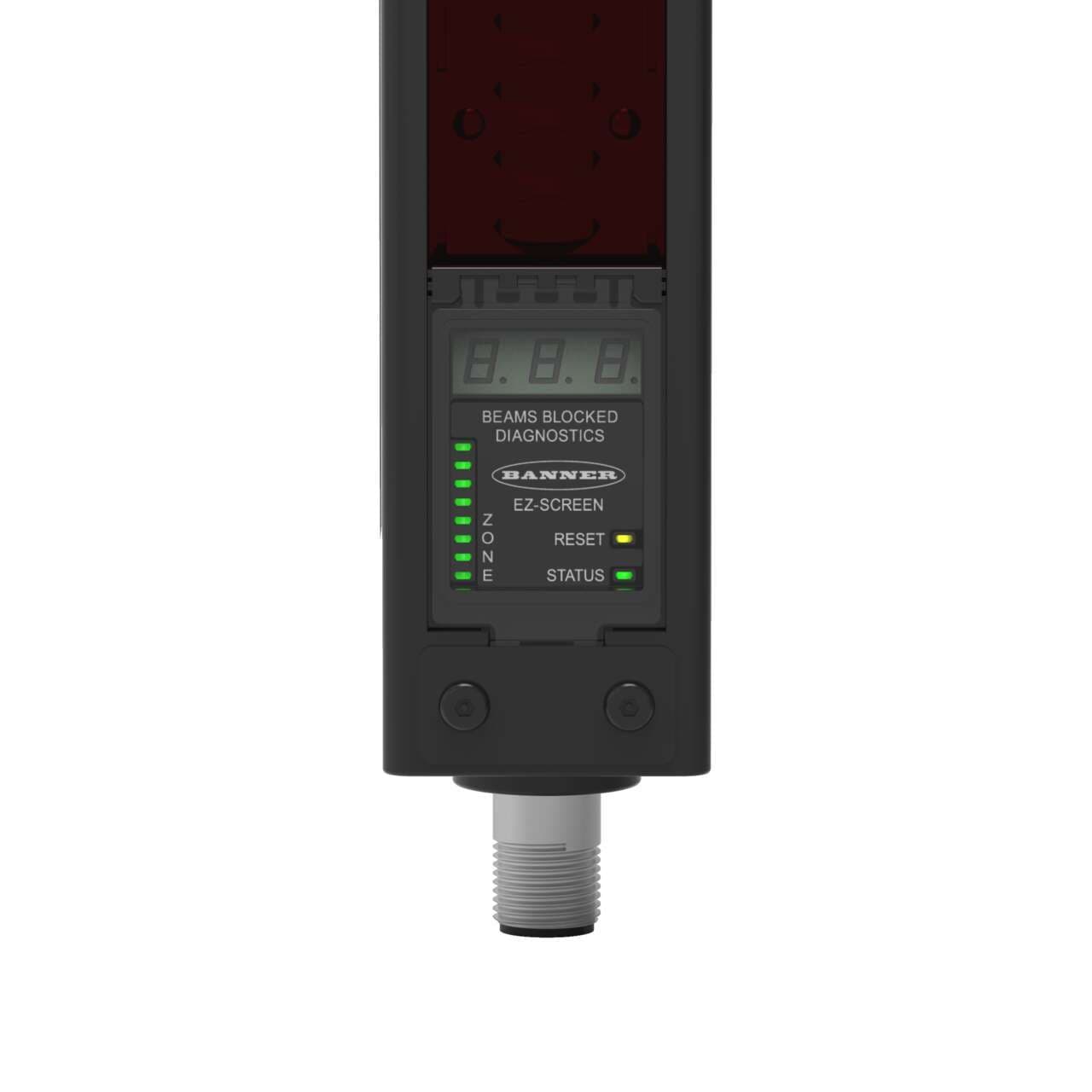

Banner Engineering SLSRBR30-450Q8 is a safety light curtain from the SLS series designed for hand detection with a resolution of 30mm. This receiver unit features an aluminium housing with an acrylic lens and die-cast zinc end caps, ensuring durability. It comes pre-equipped with an 8-pin Euro-style M12 connector for straightforward installation. The protective height of the device is 450mm, and it is housed in a yellow casing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. With an IP65 degree of protection, it is well-suited for various industrial environments. The net dimensions are 36mm in width, 522mm in height, and 46mm in depth. The SLSRBR30-450Q8 offers a sensing distance range from 10cm to 18m and includes two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and one digital output (24Vdc; 75mA; sourcing/PNP transistor) for enhanced connectivity. Additionally, it features one digital input (10Vdc-30Vdc) for EDM and one for RESET, with a response time of 13ms.
Related documents SLSRBR30-450Q8 Specs
