SLPCR14-410P8 Banner Safety Light Curtains
Part#:SLPCR14-410P8
Manufacturer:Banner
Alt. Part#:83599
Product Lifecycle:Active
Get a quick Quote!

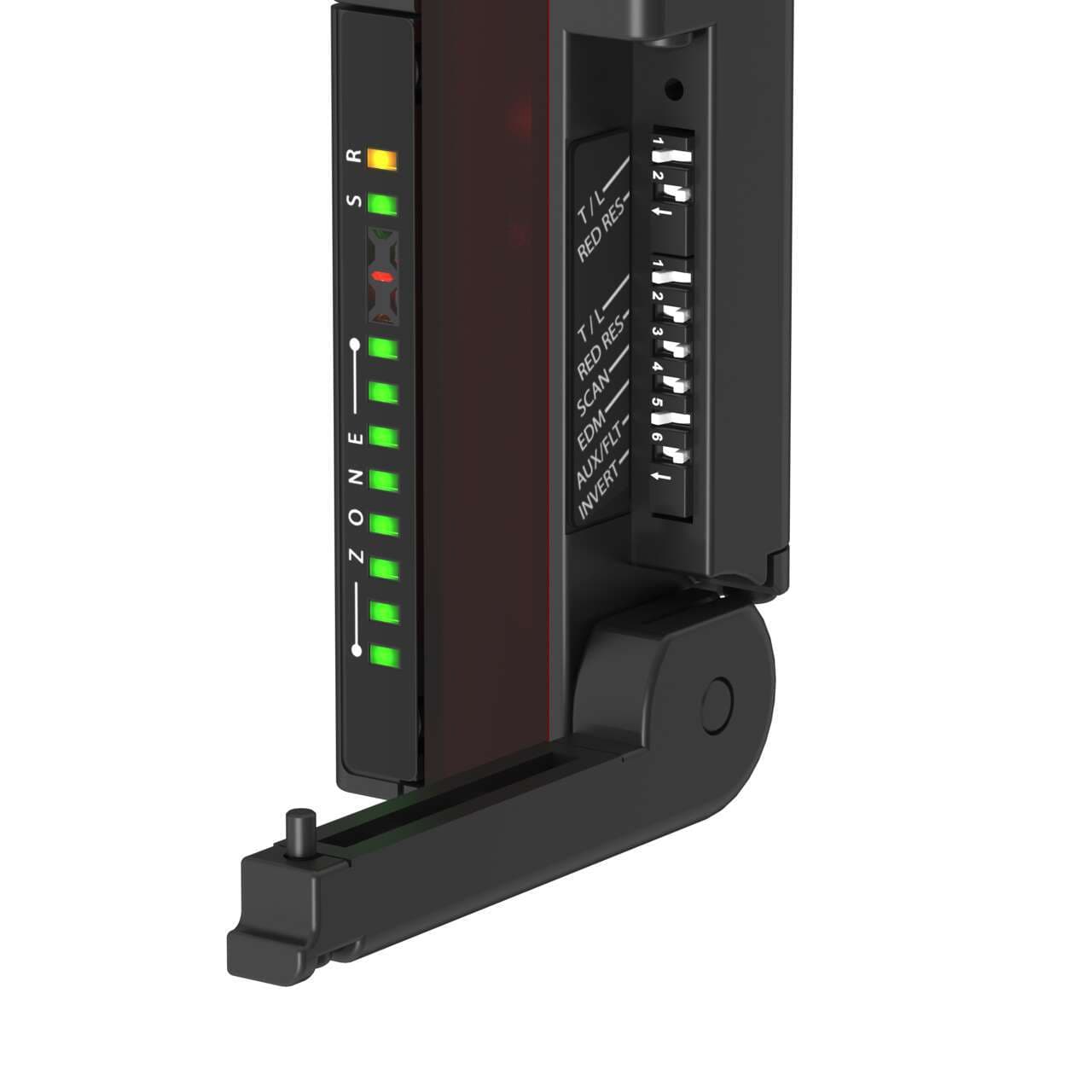

SLPCR14-410P8 EZ-SCREEN Low Profile Cascade Receiver; Resolution: 14 mm; Response (Tr): 13.5 ms; Beams: 41; Range: 0.1-7 m (4 in - 23 ft); Height: 410 mm (16.1 in); 300 mm (1 ft) 8-pin M12 Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SLPCR14-410P8 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 505.301488 g
- Country Of Origin US
- Feature: ESD Safe No
- Feature: End-to-End Sensing Yes
- Trip/Latch Output Selectable
- Feature: Cascade Yes
- Housing Material Aluminum; Zinc; Acrylic
- Feature: Integral Muting No
- Test Input No
- OSSD Rating 24 V dc at 0.5 A each
- Auxiliary Output Yes
- Vibration 10-55 Hz at 0.35 mm
- Supply Current 150 mA max.
- Fault Output Yes
- Short Protection Yes
- System Type Receiver
- Scan Code Selectable
- Shock 10g at 16ms (6000 cycles)
- Reduced Resolution Yes
- Resolution (mm) 14
- Electrical Safety Class III
- SIL Rating SIL3; CL3
- Response Time 13.5
- Operating Temperature 0 to +55 deg. C; RH 95%
- PL Rating Ple
- Operating Distance (m) 0.1 - 7
- Recovery Time 33-220 / 109-800
- Operating Voltage 24 V dc +/- 15%
- Number of Pins (Receiver/Emitter) 8
- Housing Finish Yellow Polyester
- IP Rating IP65
- Fixed Blanking Yes
- External Monitoring Device 1 or 2 Channel
- Overall Length (mm) 410
- Dimensions WxD (mm) 28 x 26
- Defined Area Height (mm) 410
- Primary Housing Material Aluminum
- low-profile Yes
- Connector Type M12 Pigtail (Yellow)
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Safety Level Type 4
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
SLPCR14-410P8 Description

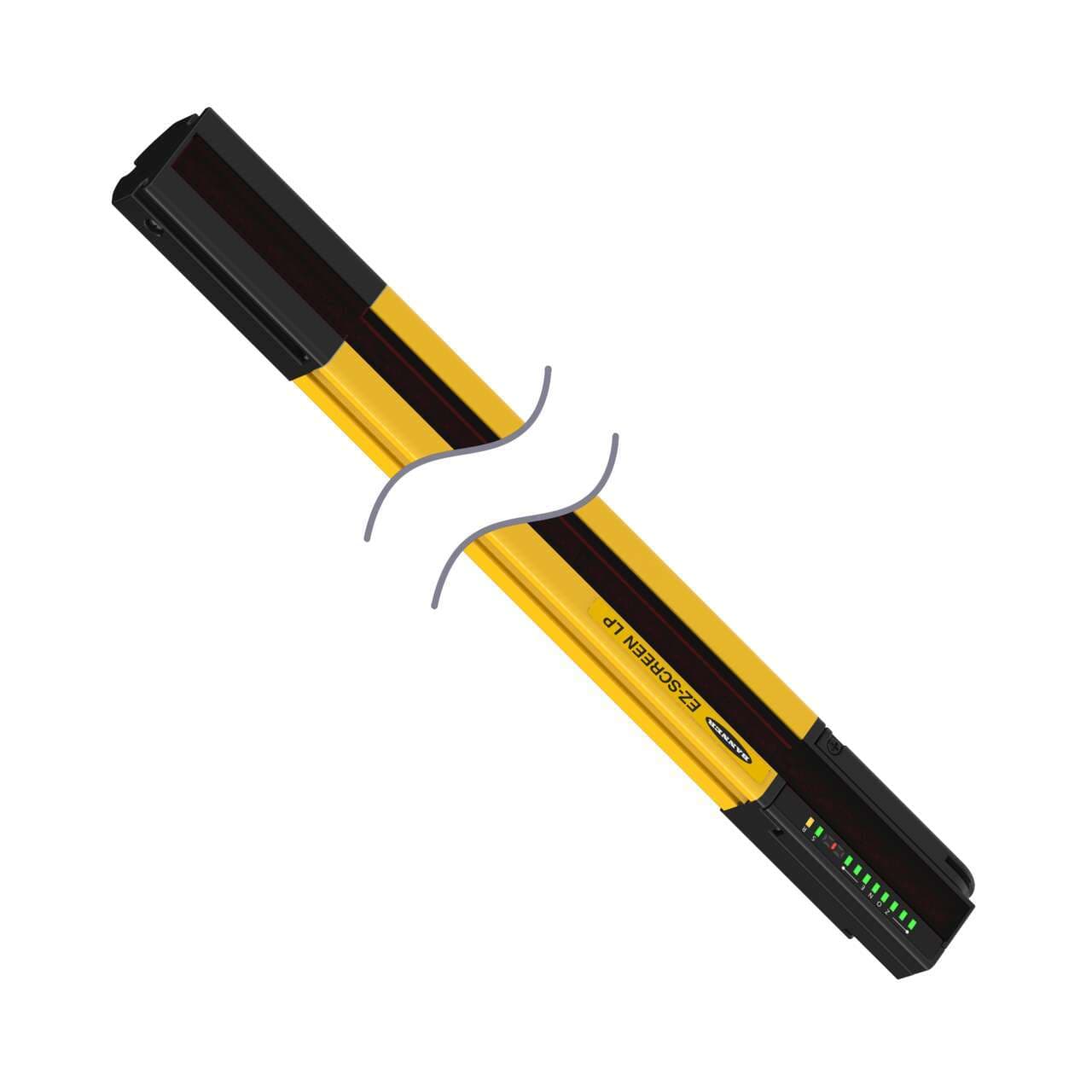

Banner Engineering SLPCR14-410P8 is a safety light curtain from the LP Low-Profile series designed for finger detection with a resolution of 14mm. This cascadable unit features an aluminium housing, acrylic lens, and zinc end caps, ensuring durability. It comes pre-wired with a 300mm pigtail terminated with an 8-pin Euro-style M12 connector for easy installation. The device offers a protective height of 410mm and is housed in yellow, with dimensions of 28mm in width and 26mm in depth. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. With an IP65 degree of protection, it is suitable for various industrial environments. The SLPCR14-410P8 includes two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and one digital output (24Vdc; 250mA; PNP transistor) for FAULT indication, alongside one digital input (10Vdc-30Vdc; 30mA) for EDM and one digital input (10Vdc-30Vdc) for RESET. It offers a sensing distance from 10cm up to 7m and has a response time of 13.5ms.
Related documents SLPCR14-410P8 Specs
