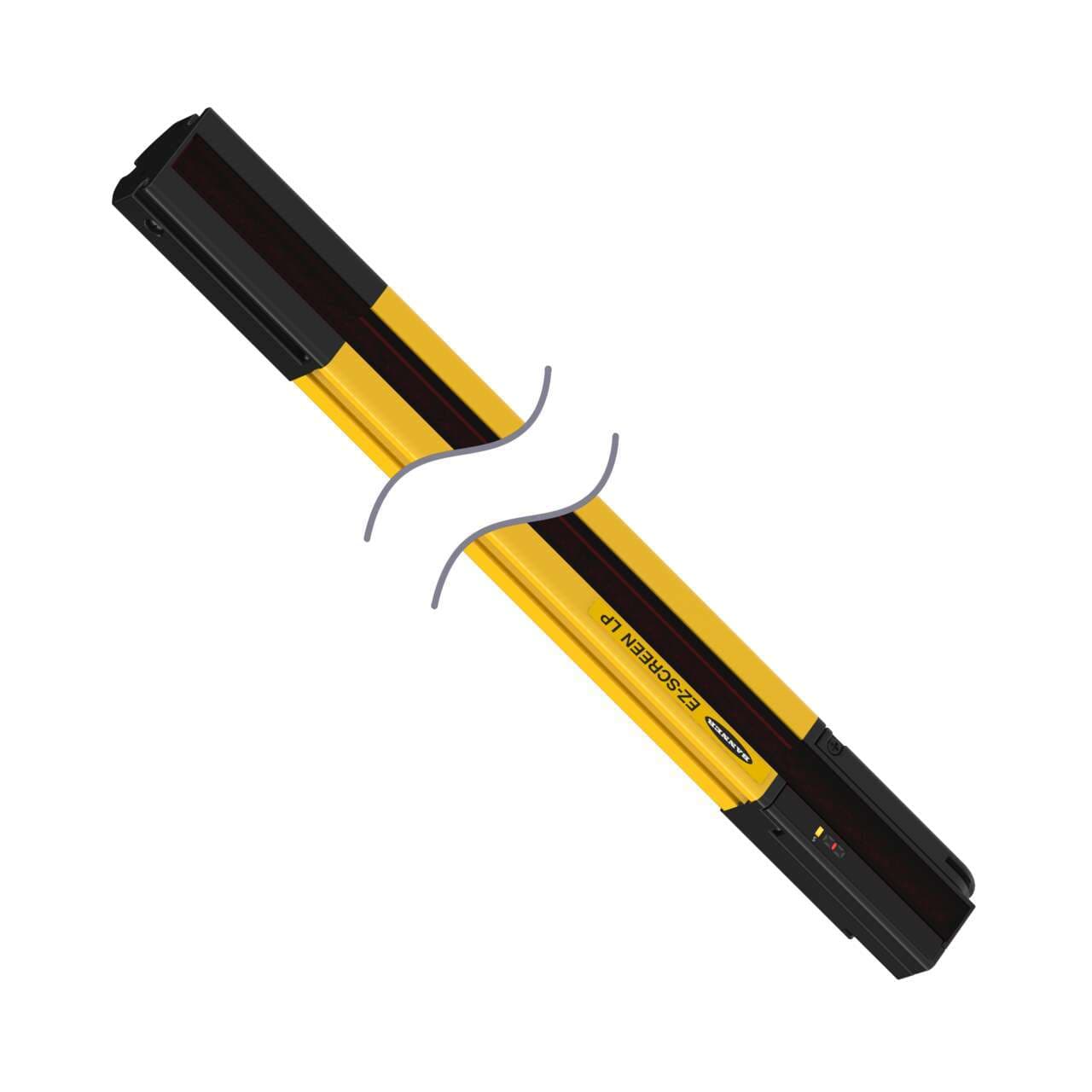

SLPCE14-970 Banner Safety Light Curtains

Name: SLPCE14-970
Brand: Banner

Part#:SLPCE14-970

Manufacturer:Banner

Alt. Part#:83684

Product Lifecycle:Active

Get a quick Quote!

SLPCE14-970 EZ-SCREEN Low Profile Cascade Emitter; Resolution: 14 mm; Response (Tr): 25.5 ms; Beams: 97; Range: 0.1-7 m (4 in - 23 ft); Height: 970 mm (38.2 in); Integral RD

About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SLPCE14-970 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
1406.1352 g
Country Of Origin
US
Feature: End-to-End Sensing
Yes
Feature: Integral Muting
No
OSSD Rating
N/A
Test Input
Yes
Auxiliary Output
No
Vibration
10-55 Hz at 0.35 mm
System Type
Emitter
Response Time
25.5
Shock
10g at 16ms (6000 cycles)
PL Rating
Ple
IP Rating
IP65
Housing Finish
Yellow Polyester
Overall Length (mm)
970
Primary Housing Material
Aluminum
Effective Aperture Angle
Type 4 Per IEC 61496-2
Feature: ESD Safe
No
Feature: Cascade
Yes
Trip/Latch Output
N/A

Fault Output

Yes

Housing Material

Aluminum; Zinc; Acrylic

Supply Current

60 mA max.

Short Protection

Yes

SIL Rating

SIL3; CL3

Electrical Safety Class

III

Scan Code

Selectable

Reduced Resolution

Resolution (mm)

Recovery Time

33-220 / 109-800

Operating Distance (m)

0.1 - 7

Operating Voltage

24 V dc +/- 15%

Operating Temperature

0 to +55 deg. C; RH 95%

low-profile

Yes

Fixed Blanking

External Monitoring Device

Dimensions WxD (mm)

28 x 26

Defined Area Height (mm)

970

Connector Type

Removable Disconnect

Safety Level

Type 4

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SLPCE14-970 Description

Banner Engineering SLPCE14-970, part of the LP Low-Profile series, is a safety light curtain designed for emitter functionality with a cascadable design. It features an aluminium housing, acrylic lens, and zinc end caps. The connection is facilitated through a wiring chamber. This part has a protective height of 970mm and comes in a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. The SLPCE14-970 offers a degree of protection rated at IP65 and has dimensions of 28mm in width, 969mm in height, and 26mm in depth. The beam spacing or pitch is 14mm, suitable for finger detection, with a sensing distance ranging from 10cm to 7m. It emits infrared light with a wavelength of 850 nm. The digital outputs include 2 x 24Vdc, 500mA sourcing redundant OSSD solid-state outputs, and 1 x 24Vdc, 250mA PNP transistor FAULT output. Additionally, it has 1 x digital input (10Vdc-30Vdc) for RESET functionality and a response time of 25.5ms.
