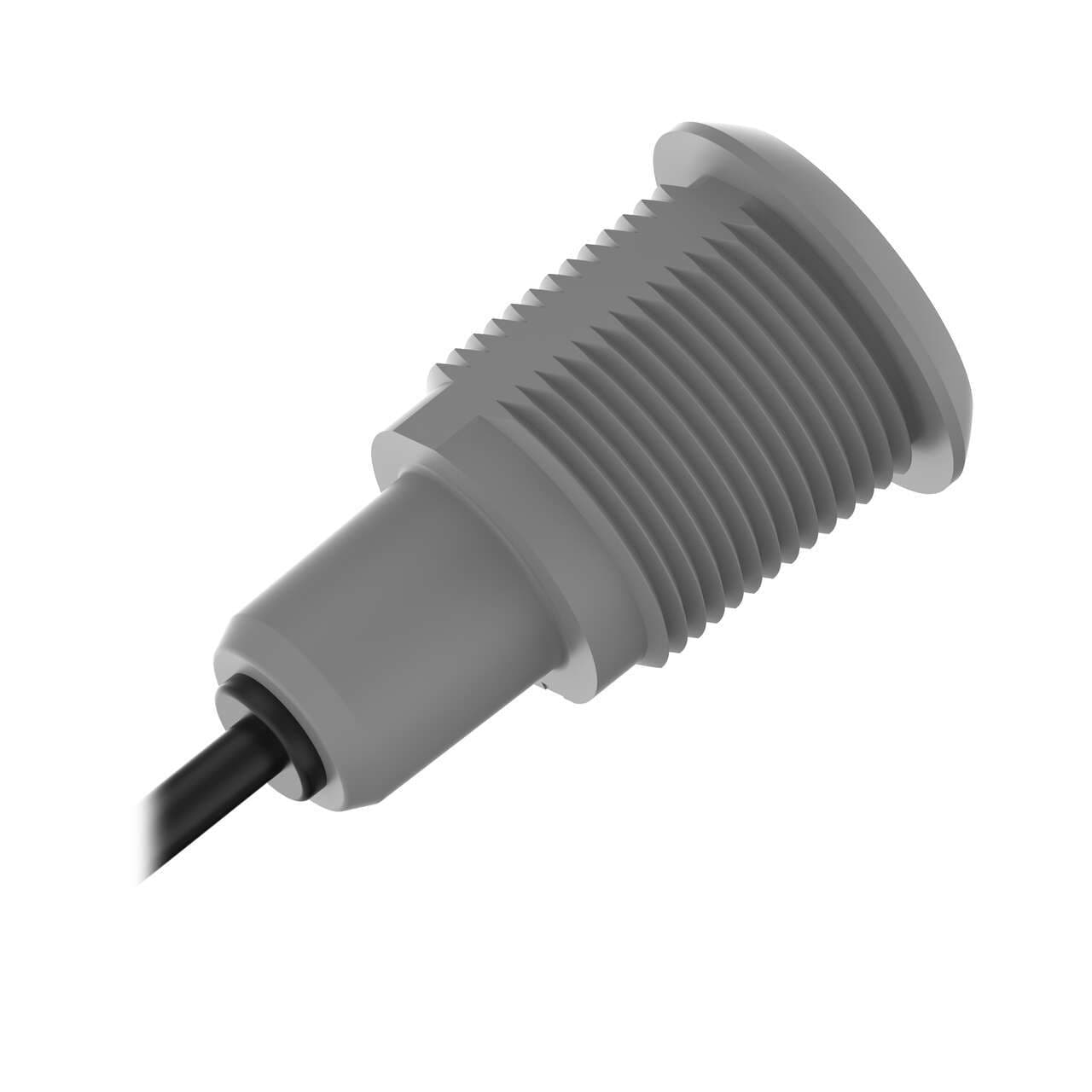

S22L2FRGB7 Banner Pick-to-Light Sensors

Product Details

• Weight
  83.460928 g
• Country Of Origin
  MX
• Wireless
  No
• Multi-Color Device
  Single Color On
• Feature: Hazardous Area
  No
• Feature: Washdown Rated
  Yes
• I/O Block Compatible
  Yes
• Pro-Editor Compatible (Discrete)
  Yes
• IO Link
  No
• Feature: Chemical Resistant
  No
• Modbus RTU
  No
• Feature: Quick Disconnect
  No
• Feature: Audible
  No
• Primary Window Material
  Copolyester Diffused
• Physical Dimensions (LxWxH or DxH mm)
  27.3 x 47.8
• Min Op. Temperature (°C)
  -40
• Max Op. Relative Humidity Non-Condensing (%)
  90% @ 50°C
• Environmental Rating
  IP66; IP67; IP69
• Max Op. Temperature (°C)
  50
• Max Input Response Time (ms)
  250
Primary Housing Color
FDA Gray
Storage Temp (°C)
-40 to 70
Input Type
Bimodal (PNP/NPN)
Supply Voltage
10-30 V dc
Number of Input Pins/Conductors
5
Wire Selectable Function
Flashing
Color 7 - Wavelength/Color Temp/Coordinates
492 nm
Max Current Color (mA)
70
Color Option 7
Cyan
Lumens Color 7
2.0
Color 6 - Wavelength/Color Temp/Coordinates
0.345, 0.161
Lumens Color 6
1.2
Color Option 6
Magenta
Color 5 - Wavelength/Color Temp/Coordinates
5700K
Lumens Color 5
2.5
Color 4 - Wavelength/Color Temp/Coordinates
571 nm
Lumens Color 4
2.5
Color Option 5
White
Color Option 4
Yellow
Color 3 - Wavelength/Color Temp/Coordinates
465 nm
Lumens Color 3
0.30
Color Option 3
Blue
Color 2 - Wavelength/Color Temp/Coordinates
527 nm
Color Technology
RGB Configurable
Lumens Color 1
0.80
Color 1 - Wavelength/Color Temp/Coordinates
625 nm
Lumens Color 2
1.9
Color Option 2
Green
Color Option 1
Red
Connection
Cable
Color Input Control
Multiple (One or more wires/color, enables more colors than input wires)
Housing Style
Barrel Mount - Flat Window
Product Size (mm)
22
Indication
Yes
Power Source
DC
Power
DC
Primary Housing Material
FDA Copolyester
Number of Colors / Segments
7
Mounting Thread
M22 x 1.5

Related documents S22L2FRGB7 Specs
