QCM50-K3D40-Q8-5 Banner Optical Sensors

QCM50-K3D40-Q8-5 on Powermatic Associates
Banner

Part#:QCM50-K3D40-Q8-5

Manufacturer:Banner

Alt. Part#:806617

Product Lifecycle:Active

Get a quick Quote!

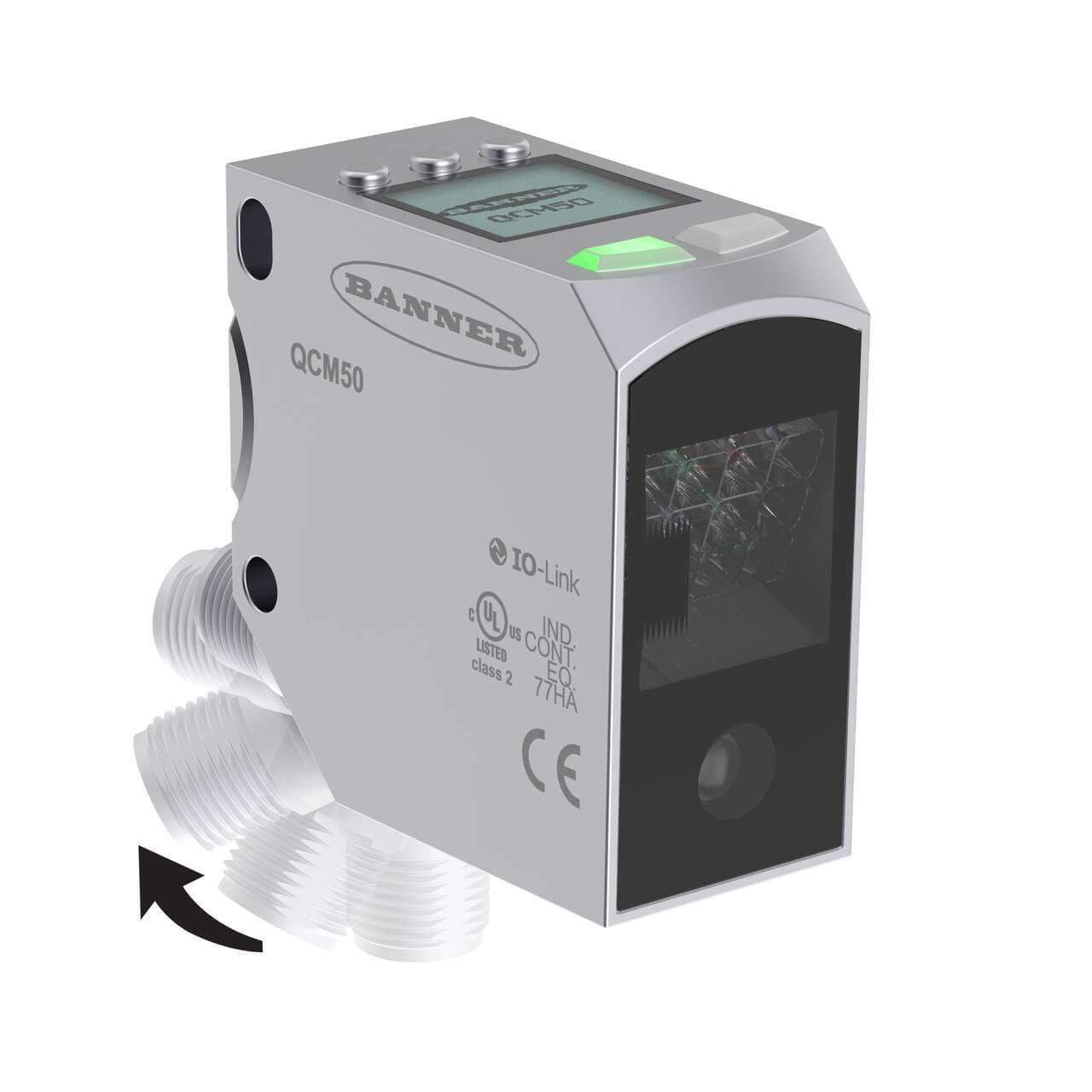

QCM50 Series: Color Sensor; Range: 18-60 mm; Input: 10-30 V dc; Outputs: 3 Discrete PNP/NPN; IO-Link; 5-pin M12 Integral QD; Small Spot

About the manufacturer: Banner is one of the manufacturers that offers Optical Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the QCM50-K3D40-Q8-5 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    188.921068 g
  • Country Of Origin
    DE
  • Application: Color
    Yes
  • IO Link
    Yes
  • Application: Registration Mark
    No
  • Application: Luminescence
    No
  • Feature: Timing (Hold/Delay)
    Yes
  • SF-Sensing Specialty
    Small Spot Size
  • SF-Multifunction Input/Output
    Yes
  • Number of Stored Colors
    7
  • NEMA Rating
    N/A
  • Beam Spot Size
    6 x 6 mm at 25 mm
  • Delay at Power-up (ms)
    150
  • Special Feature: Analog Output
    No
  • Max Op. Relative Humidity (%)
    95% @ 55°C
  • IP Rating
    IP67, IP69K
  • Max Op. Temperature (°C)
    55
  • Min Op. Temperature (°C)
    -20
  • Lens Material
    PMMA
  • Repeatability (µs)
    180
  • Output response time (ms)
    33 to 0.33
  • Operation
    NO/NC
  • Indicator
    LCD Display; LED(s)
  • LED Orientation
    Perpendicular to sensor length
  • Power Supply/Supply Voltage
    18-30 V dc
  • Number of Pins
    5
  • Max Sensing Range (mm)
    60
  • Connection
    Integral QD
  • Sensing Beam
    Visible White LED
  • Outputs
    1 PNP/NPN with IO-link, 2 PNP/NPN Auto Detect
  • Special Feature: Remote Teach
    No
  • Quick Disconnect Type
    M12 (Euro)
  • Sensing Beam Wavelength
    Broad Spectrum White
  • Adjustments
    Teach Button
  • Primary Housing Material
    Zinc Die-Cast, Matte Chrome Plating
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

QCM50-K3D40-Q8-5 Description

Banner Engineering QCM50-K3D40-Q8-5 is a high-performance color sensor within the QCM50 series, designed for precise color detection with a small spot size of 4x4mm. It operates within an ambient air temperature range of -20 to +55 °C and features a TEACH mode capable of distinguishing up to 7 colors. This sensor is equipped with a 5-pin Euro-style M12 connector for connectivity and is housed in a die-cast Zinc with a Polymethyl methacrylate (PMMA) lens, ensuring durability. It offers a sensing distance of 18 to 60mm and utilizes visible white light for color detection. The QCM50-K3D40-Q8-5 supports both Normally Open (NO) and Normally Closed (NC) operating modes and includes 3 digital outputs (PNP/NPN transistor) for versatile application. It operates on a supply voltage of 18Vdc to 30Vdc, with 24Vdc nominal. The sensor is designed for robust industrial applications with an IP67 and IP69K degree of protection against ingress, and it features a matte chrome-plated coating for additional resilience. Communication with this sensor is facilitated through the IO-Link protocol, allowing for easy integration into existing systems.

Related documents QCM50-K3D40-Q8-5 Specs

QCM50-K3D40-Q8-5 209634.pdf
