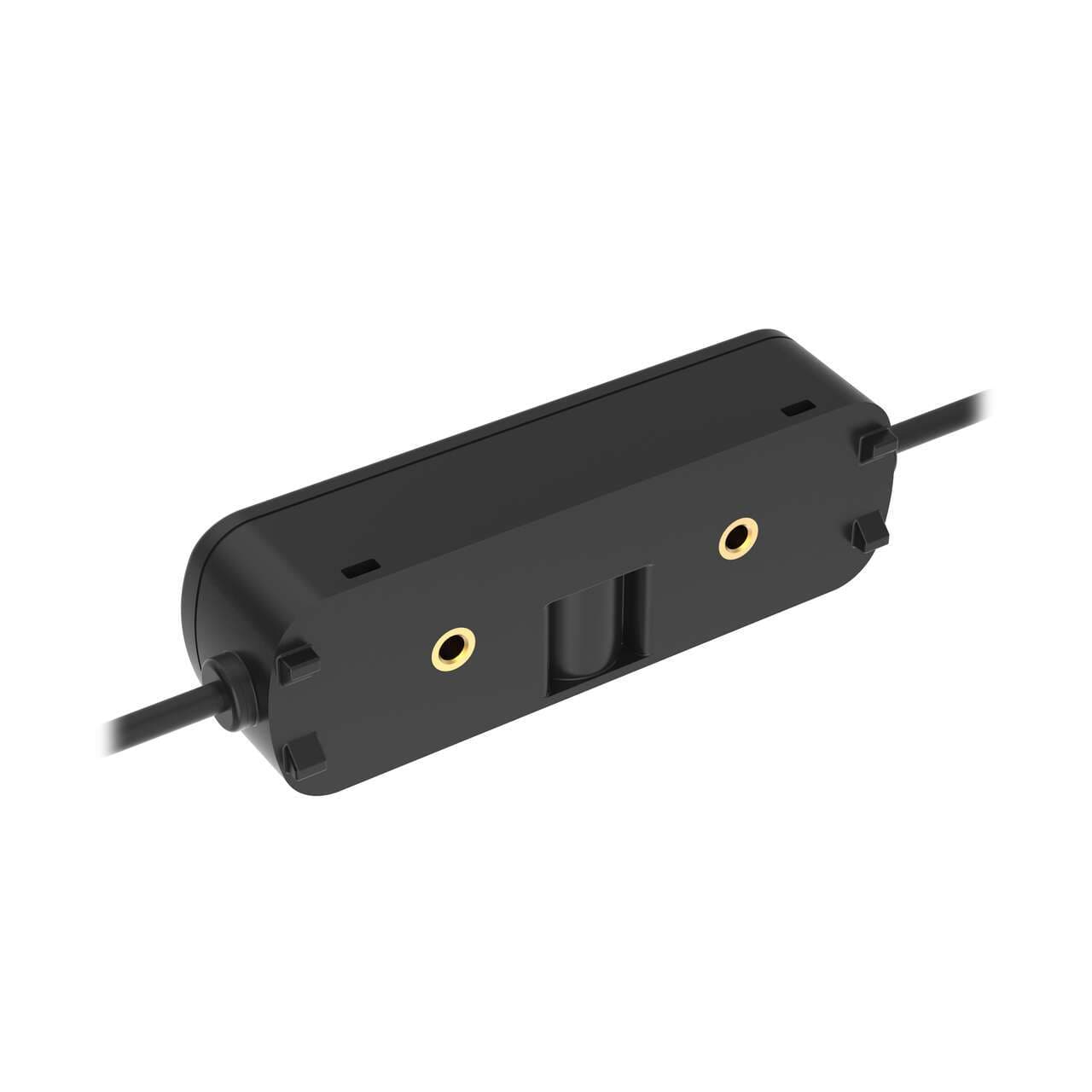

PTL110S-FF200T-QP150 Banner Pick-to-Light Sensors
Part#:PTL110S-FF200T-QP150
Manufacturer:Banner
Alt. Part#:805487
Product Lifecycle:Active
Get a quick Quote!
PTL110 Node; Voltage: 10-30 V dc; Environmental Rating: IP54; 200 mm Fixed Field; Touch Sensor; 150 mm (6 in) M12 PVC Pigtail QDs
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the PTL110S-FF200T-QP150 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 90.7184 g
- Country Of Origin US
- IO Link No
- Job Light Programmable
- Pro-Editor Compatible (Discrete) No
- Wireless No
- Modbus RTU Yes
- Multi-Color Device Single Color On
- PICK-IQ (Modbus RTU) Yes
- Feature: Hazardous Area No
- Feature: Audible No
- Feature: Chemical Resistant No
- Primary Housing Color Black
- Primary Window Material Polycarbonate Diffused
- Environmental Rating IP54
- Maximum Sensing Distance (mm) 200
- Physical Dimensions (LxWxH or DxH mm) 110.0 x 35.0 x 33.1
- Number of Beams 1
- Max Op. Temperature (°C) 50
- Supply Voltage 10-30 V dc
- Min Op. Temperature (°C) -40
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Output Type Communication Protocol
- Pick-to-Light Function Programmable
- Number of Input Pins/Conductors 4
- Mis-Pick Light Programmable
- Acknowledge (Sense) Light Programmable
- Max Current Color (mA) 155
- Animation Option 1 Modbus Controlled
- Quick Disconnect Type M12 (Euro)
- Number of Colors / Segments 14
- Product Size (mm) 110
- Color Technology RGB Configurable
- Sensing Mode (General) Fixed Field
- Color Input Control Communication Protocol
- Primary Housing Material ABS
- Indication Yes
- Housing Style Flat Mount - Flat Window
- Actuation Yes
- Power Source DC
- Connection Pigtail QD
- Color Option 1 RGB
- Mounting Thread No Thread
- Activation Function Capacitive Touch and Optical
- Power DC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
PTL110S-FF200T-QP150 Description
Banner Engineering PTL110S-FF200T-QP150 is a scalable versatile pick-to-light node designed for surface or pipe mounting. It operates within an ambient air temperature range of -40°C to +50°C and features a fixed field sensing design with PICK IQ serial communication, compatible with RS-485 / Modbus RTU. This part is equipped with LED illumination and connects via pre-wired 2 x 6" / 15cm PVC shielded pigtails terminated with 5-pin M12 Euro-style QD connectors. It has an IP54 degree of protection and requires a supply voltage of 10Vdc-30Vdc (12Vdc-24Vdc nom.). The rectangular-shaped body is made from ABS housing with a polycarbonate indicator and acrylic lens, in a black housing with a gray window. It offers a 200mm sensing range and supports both momentary and latched operating modes, configurable via serial communication, with a current consumption of 155mA.
