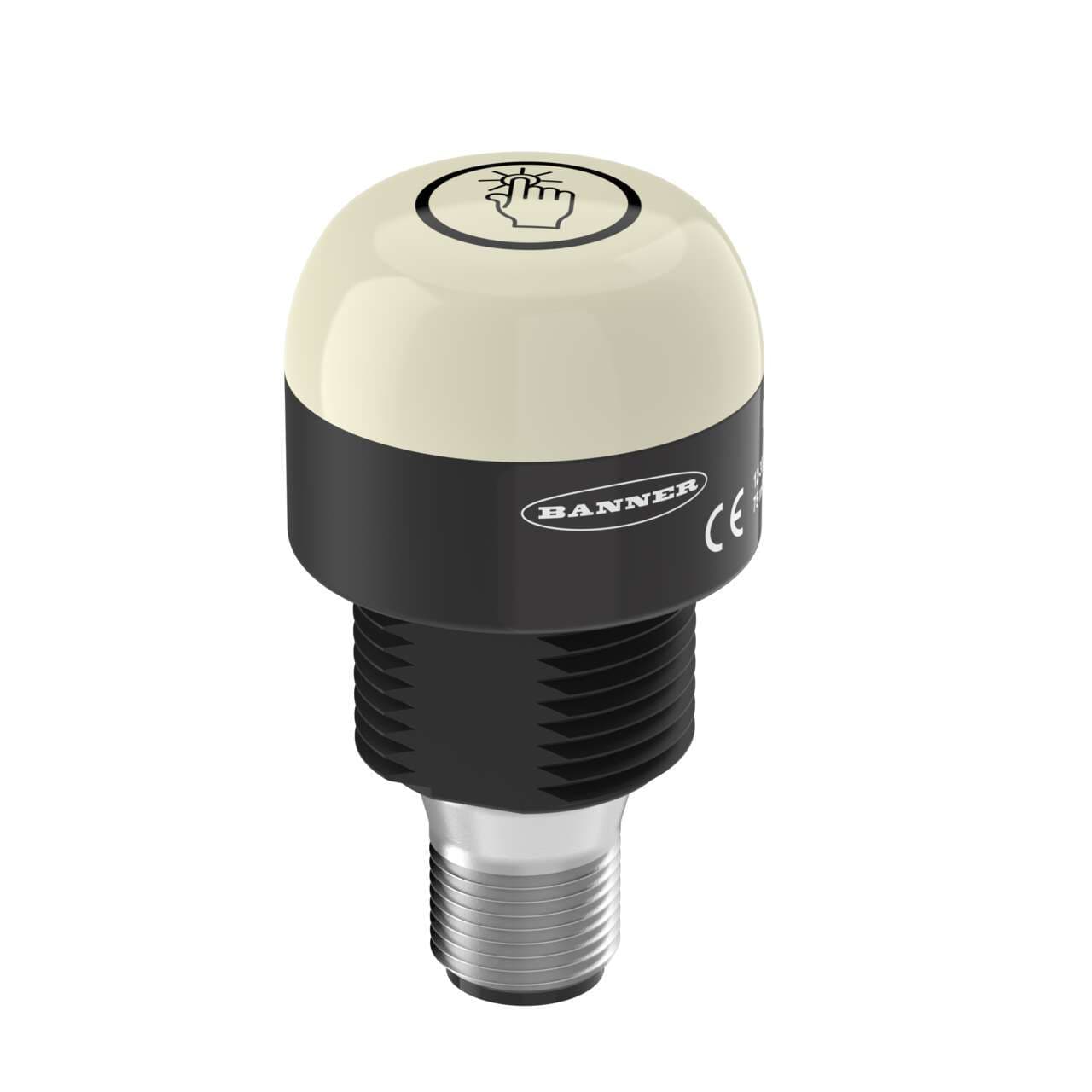

K30APTXYF2Q Banner Pick-to-Light Sensors

K30APTXYF2Q on Powermatic Associates
Banner

Part#:K30APTXYF2Q

Manufacturer:Banner

Alt. Part#:88398

Product Lifecycle:Active

Get a quick Quote!

K30 Series: 1-Input-Color Touch Sensor; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input: PNP (NO); Colors: None - Power Applied, Yellow- Input Active; 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K30APTXYF2Q Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    45.3592 g
  • Country Of Origin
    MX
  • Wireless
    No
  • Modbus RTU
    No
  • Pro-Editor Compatible (Discrete)
    No
  • IO Link
    No
  • Feature: Quick Disconnect
    Yes
  • Multi-Color Device
    Single Color On
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Feature: Washdown Rated
    Yes
  • Feature: Hazardous Area
    No
  • Primary Window Material
    Polycarbonate Diffused
  • Button Operation
    Momentary
  • Primary Housing Color
    Black
  • Storage Temp (°C)
    -40 to 70
  • Min Op. Temperature (°C)
    -40
  • Max Op. Temperature (°C)
    50
  • NEMA Type and UL Type Rating
    NEMA 4X, 13
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Environmental Rating
    IP67; IP69
  • Physical Dimensions (LxWxH or DxH mm)
    30.0 x 54.5
  • Max Output Response Time (ms)
    150
  • Operation
    Normally Open
  • Input Type
    PNP
  • Output Type
    PNP
  • Max Input Response Time (ms)
    300
  • Supply Voltage
    12-30 V dc
  • Number of Input Pins/Conductors
    4
  • Pick-to-Light Function
    F2
  • Color Option 2
    Yellow
  • Quick Disconnect Type
    M12 (Euro)
  • Max Current Color (mA)
    55
  • Product Size (mm)
    30
  • Color Technology
    Standard LED
  • Connection
    Integral QD
  • Activation Function
    Capacitive Touch
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Number of Colors / Segments
    1
  • Mounting Thread
    M22 x 1.5
  • Actuation
    Yes
  • Primary Housing Material
    Polycarbonate
  • Power
    DC
  • Power Source
    DC
  • Housing Style
    Base Mount - Dome Window

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

K30APTXYF2Q Description

Banner Engineering K30APTXYF2Q, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with LED illumination in a black housing. It features a dome window shape with both the window and base made from polycarbonate (PC), ensuring durability. This part is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity and supports a supply voltage range of 12Vdc to 30Vdc, with 24Vdc nominal. It offers versatile mounting options including surface, base, or pole flush with a 22mm hole and M22 thread. The dome diameter is 30mm / 1-3/16". It operates efficiently in ambient air temperatures ranging from -40°C to +50°C and boasts a high degree of protection with ratings of IP67, IP69K, NEMA 4X, and NEMA 13. The operating mode is momentary, with a yellow job light that turns on when the input is active, and touch activates the output only with a normally open (NO) touch output. It has a current consumption of 55mA, one digital input for job color control (12-30Vdc; PNP), and one digital output for touch (12-30Vdc; PNP).

Related documents K30APTXYF2Q Specs

K30APTXYF2Q 170456.pdf
