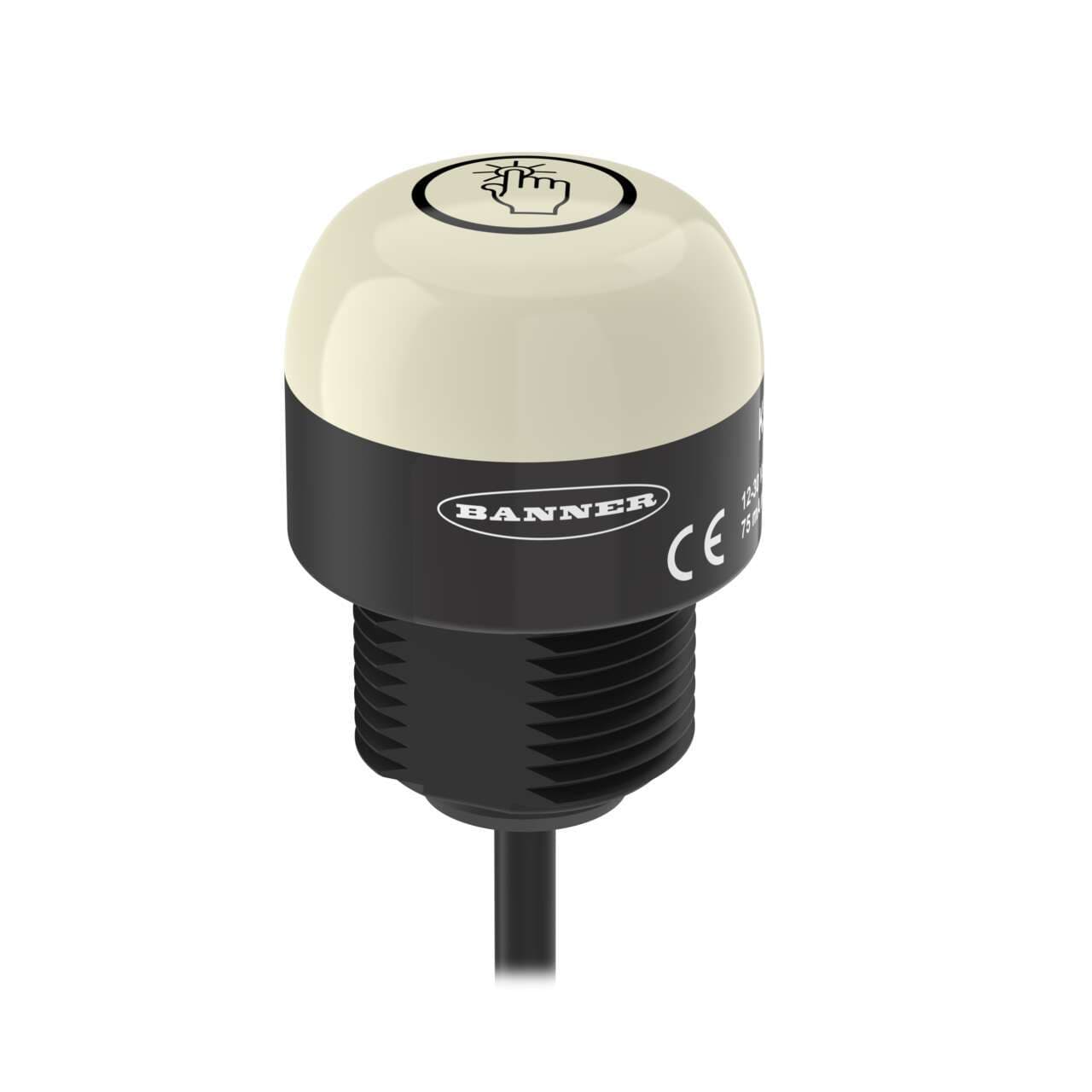

K30APT2GRYF2 Banner Pick-to-Light Sensors

K30APT2GRYF2 on Powermatic Associates
Banner

Part#:K30APT2GRYF2

Manufacturer:Banner

Alt. Part#:802258

Product Lifecycle:Active

Get a quick Quote!

K30 Series EZ-LIGHT: 3-Input-Color Touch Sensor Gen 2; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input: PNP (NO); Colors: Green Red Yellow; 2 m (6.5 ft) PVC Cable

About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K30APT2GRYF2 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    58.96696 g
  • Country Of Origin
    MX
  • IO Link
    No
  • Feature: Washdown Rated
    Yes
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Modbus RTU
    No
  • Multi-Color Device
    Single Color On
  • Pro-Editor Compatible (Discrete)
    No
  • Feature: Hazardous Area
    No
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Wireless
    No
  • Primary Window Material
    Polycarbonate Diffused
  • Button Operation
    Momentary
  • Primary Housing Color
    Black
  • Max Op. Temperature (°C)
    50
  • Storage Temp (°C)
    -40 to 70
  • Min Op. Temperature (°C)
    -40
  • NEMA Type and UL Type Rating
    NEMA and UL 4X, 13
  • Max Output Response Time (ms)
    150
  • Physical Dimensions (LxWxH or DxH mm)
    30.0 x 41.0
  • Environmental Rating
    IP67; IP69
  • Supply Voltage
    12-30 V dc
  • Input Type
    PNP
  • Output Type
    PNP
  • Max Input Response Time (ms)
    300
  • Number of Input Pins/Conductors
    8
  • Color 3 - Wavelength/Color Temp/Coordinates
    580 nm
  • Pick-to-Light Function
    F2
  • Lumens Color 3
    4.4
  • Color Option 3
    Yellow
  • Max Current Color (mA)
    55
  • Operation
    Normally Open
  • Color Option 2
    Red
  • Color 2 - Wavelength/Color Temp/Coordinates
    625 nm
  • Color 1 - Wavelength/Color Temp/Coordinates
    525 nm
  • Lumens Color 2
    1.7
  • Product Size (mm)
    30
  • Lumens Color 1
    4.4
  • Animation Option 1
    Solid On
  • Connection
    Cable
  • Color Technology
    Standard LED
  • Number of Colors / Segments
    3
  • Color Option 1
    Green
  • Power
    DC
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Primary Housing Material
    Polycarbonate
  • Cable Length (m)
    0.15
  • Actuation
    Yes
  • Housing Style
    Base Mount - Dome Window
  • Mounting Thread
    M22 x 1.5
  • Power Source
    DC
  • Activation Function
    Capacitive Touch

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

K30APT2GRYF2 Description

Banner Engineering K30APT2GRYF2, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with Gen.2 LED illumination in a black housing. It features a dome window shape made from polycarbonate (PC) for both the diffused window and the base. This part is pre-wired with a 2m / 6.5ft 8-wire cable that terminates with bare end flying leads. It operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal. The K30APT2GRYF2 can be mounted on a surface, base, or pole flush using a 22mm hole with an M22 thread and has a 30mm / 1-3/16" dome diameter. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP67 and IP69K. The operating mode is momentary, with a job light (G/R/Y; Green or Red or Yellow) that turns ON when one of the three job inputs is active, and touch activates the output only with a Normally Open (NO) touch output. It includes 3 x digital inputs (12-30Vdc; PNP) for JOB color control and 1 x digital output (12-30Vdc; PNP) for Touch.

Related documents K30APT2GRYF2 Specs

K30APT2GRYF2 189825.pdf
