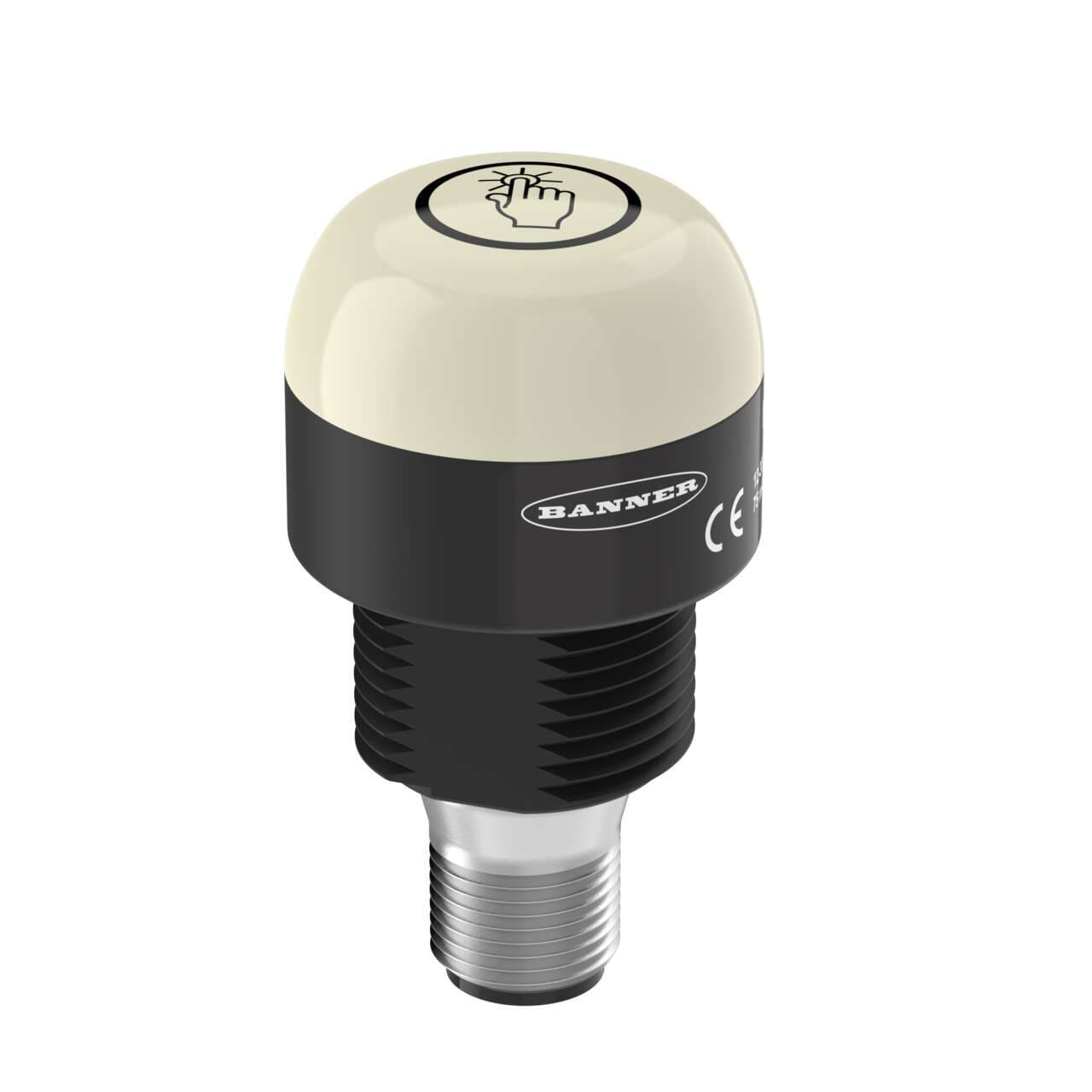

K30APT2BGF2Q Banner Pick-to-Light Sensors

K30APT2BGF2Q on Powermatic Associates
Banner

Part#:K30APT2BGF2Q

Manufacturer:Banner

Alt. Part#:800668

Product Lifecycle:Active

Get a quick Quote!

K30 Series EZ-LIGHT: 2-Input-Color Touch Sensor Gen 2; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input: PNP (NO); Colors: Blue - Power Applied, Green - Input Active; 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K30APT2BGF2Q Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    45.3592 g
  • Country Of Origin
    US
  • IO Link
    No
  • Multi-Color Device
    Single Color On
  • Modbus RTU
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Feature: Audible
    No
  • Wireless
    No
  • Feature: Quick Disconnect
    Yes
  • Feature: Chemical Resistant
    No
  • Feature: Washdown Rated
    Yes
  • Primary Window Material
    Polycarbonate Diffused
  • Primary Housing Color
    Black
  • Button Operation
    Momentary
  • Storage Temp (°C)
    -40 to 70
  • Feature: Hazardous Area
    No
  • Min Op. Temperature (°C)
    -40
  • Max Op. Temperature (°C)
    50
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • NEMA Type and UL Type Rating
    NEMA and UL 4X, 13
  • Environmental Rating
    IP67; IP69
  • Output Type
    PNP
  • Input Type
    PNP
  • Physical Dimensions (LxWxH or DxH mm)
    30.0 x 54.5
  • Max Output Response Time (ms)
    150
  • Max Input Response Time (ms)
    300
  • Operation
    Normally Open
  • Supply Voltage
    12-30 V dc
  • Number of Input Pins/Conductors
    4
  • Pick-to-Light Function
    F2
  • Color 2 - Wavelength/Color Temp/Coordinates
    525 nm
  • Lumens Color 2
    4.4
  • Max Current Color (mA)
    55
  • Color 1 - Wavelength/Color Temp/Coordinates
    470 nm
  • Quick Disconnect Type
    M12 (Euro)
  • Lumens Color 1
    1.0
  • Connection
    Integral QD
  • Animation Option 1
    Solid On
  • Color Option 2
    Green
  • Color Technology
    Standard LED
  • Color Option 1
    Blue
  • Product Size (mm)
    30
  • Number of Colors / Segments
    2
  • Cable Length (m)
    0.3
  • Actuation
    Yes
  • Mounting Thread
    M22 x 1.5
  • Housing Style
    Base Mount - Dome Window
  • Activation Function
    Capacitive Touch
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Primary Housing Material
    Polycarbonate
  • Power Source
    DC
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

K30APT2BGF2Q Description

Banner Engineering K30APT2BGF2Q, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with Gen.2 LED illumination in a black housing. It features a dome window shape made from polycarbonate (PC) for both the diffused window and the base. This part is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc nominal. The K30APT2BGF2Q offers versatile mounting options including surface, base, or pole flush with a 22mm hole and M22 thread. The dome diameter is 30mm or approximately 1-3/16 inches. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and is rated for IP67 and IP69K degrees of protection. The operating mode includes a momentary job light where the blue light is on when power is applied, and the green light is on when the input is active. Touch activates the output only with a normally open (NO) touch output. It also features 1 x digital input (12-30Vdc; PNP) for job color control and 1 x digital output (12-30Vdc; PNP) for touch functions.

Related documents K30APT2BGF2Q Specs

K30APT2BGF2Q 189825.pdf
