K30ABT2FGGHQP Banner Pick-to-Light Sensors

K30ABT2FGGHQP on Powermatic Associates
Banner

Part#:K30ABT2FGGHQP

Manufacturer:Banner

Alt. Part#:96650

Product Lifecycle:Active

Get a quick Quote!

K30 Series EZ-LIGHT: 1-Color Touch Sensor Gen 2 FDA; Momentary Output; Voltage: 12-30 V dc; Housing: FDA Copolyester; IP67 IP69K; Output: Bipolar (NO); Colors: Green - Not Activated, Green - Activated; 150 mm (6 in) M12 PVC Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K30ABT2FGGHQP Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    90.7184 g
  • Country Of Origin
    MX
  • Modbus RTU
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Feature: Quick Disconnect
    Yes
  • Feature: Hazardous Area
    No
  • Wireless
    No
  • IO Link
    No
  • Feature: Audible
    No
  • Button Operation
    Momentary
  • Feature: Chemical Resistant
    No
  • Multi-Color Device
    Single Color On
  • Feature: Washdown Rated
    Yes
  • Primary Window Material
    FDA Polycarbonate Diffused
  • Primary Housing Color
    FDA Gray
  • Storage Temp (°C)
    -40 to 70
  • Min Op. Temperature (°C)
    -40
  • Max Op. Temperature (°C)
    50
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Environmental Rating
    IP67; IP69
  • Max Input Response Time (ms)
    300
  • Physical Dimensions (LxWxH or DxH mm)
    30.0 x 41.0
  • Max Output Response Time (ms)
    150
  • Input Type
    Bimodal (PNP/NPN)
  • Output Type
    Bipolar (NPN & PNP)
  • Operation
    Normally Open
  • Supply Voltage
    12-30 V dc
  • Number of Input Pins/Conductors
    5
  • Max Current Color (mA)
    55
  • Color 2 - Wavelength/Color Temp/Coordinates
    525 nm
  • Lumens Color 2
    4.4
  • Color Option 2
    Green
  • Color 1 - Wavelength/Color Temp/Coordinates
    525 nm
  • Quick Disconnect Type
    M12 (Euro)
  • Lumens Color 1
    4.4
  • Animation Option 1
    Solid On
  • Connection
    Pigtail QD
  • Product Size (mm)
    30
  • Color Option 1
    Green
  • Number of Colors / Segments
    2
  • Color Technology
    Standard LED
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Power Source
    DC
  • Mounting Thread
    M22 x 1.5
  • Activation Function
    Capacitive Touch
  • Primary Housing Material
    FDA Copolyester
  • Housing Style
    Base Mount - Dome Window
  • Actuation
    Yes
  • Cable Length (m)
    2
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

K30ABT2FGGHQP Description

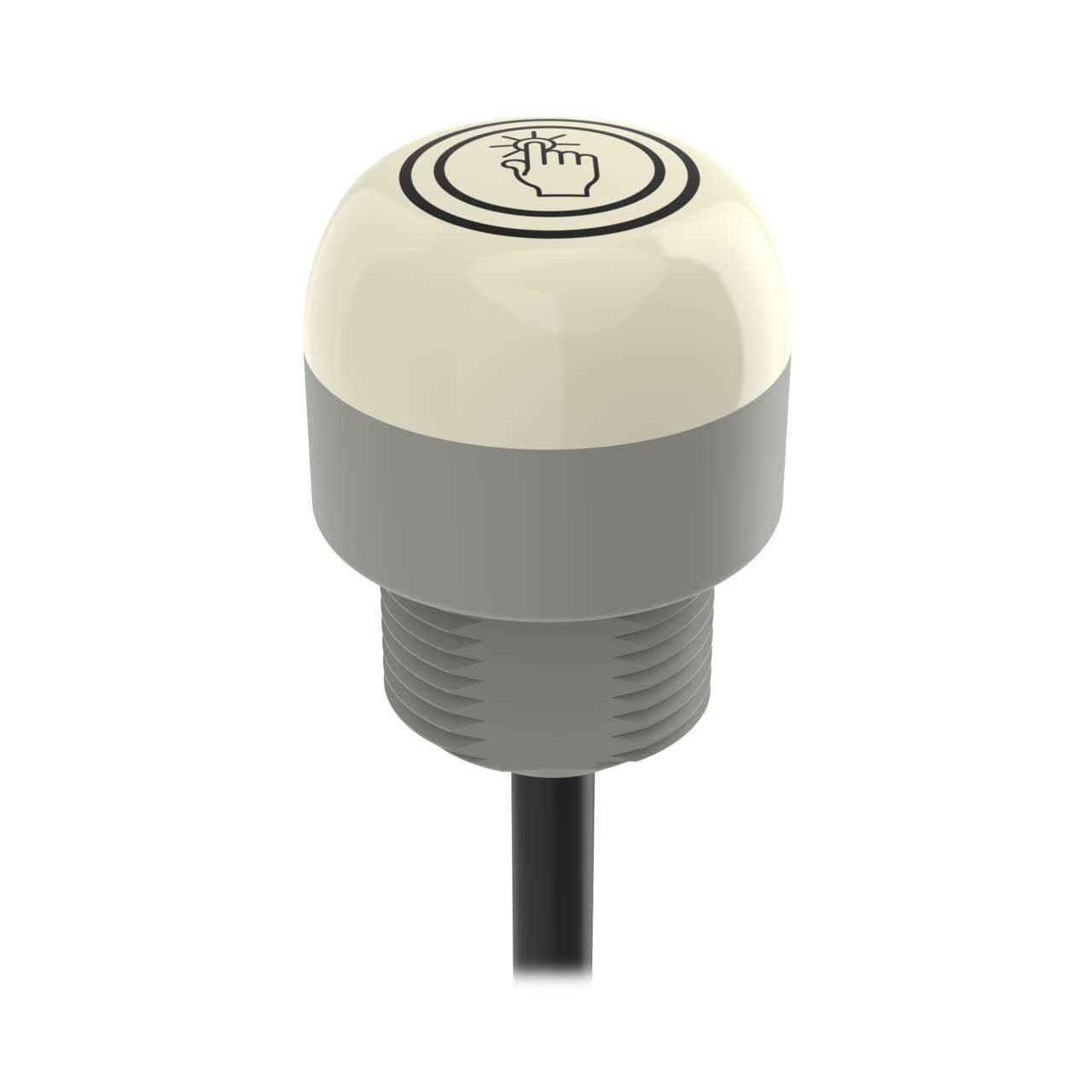

Banner Engineering K30ABT2FGGHQP is an illuminated capacitive touch-sensitive button designed with Gen.2 hygienic specifications using FDA-grade materials. It features 1-color green LED illumination that indicates both non-activated and activated states within a gray housing. The dome window and base are constructed from polycarbonate (PC), ensuring durability. This part is pre-wired with a 6-inch (15cm) pigtail that terminates with a 5-pin M12 Euro-style quick disconnect (QD) connector. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage. The K30ABT2FGGHQP offers versatile mounting options, including surface or base pole with an M22 thread, and has a 30mm (1-3/16 inch) dome diameter. It is designed to function in ambient air temperatures ranging from -40°C to +50°C and is rated for IP67 and IP69K degrees of protection. The operating mode is a momentary normally open (NO) touch output. Additionally, it includes 2 x digital inputs for color control and 1 x digital output for touch, both supporting 12-30Vdc PNP/NPN.

Related documents K30ABT2FGGHQP Specs

K30ABT2FGGHQP 189833.pdf
