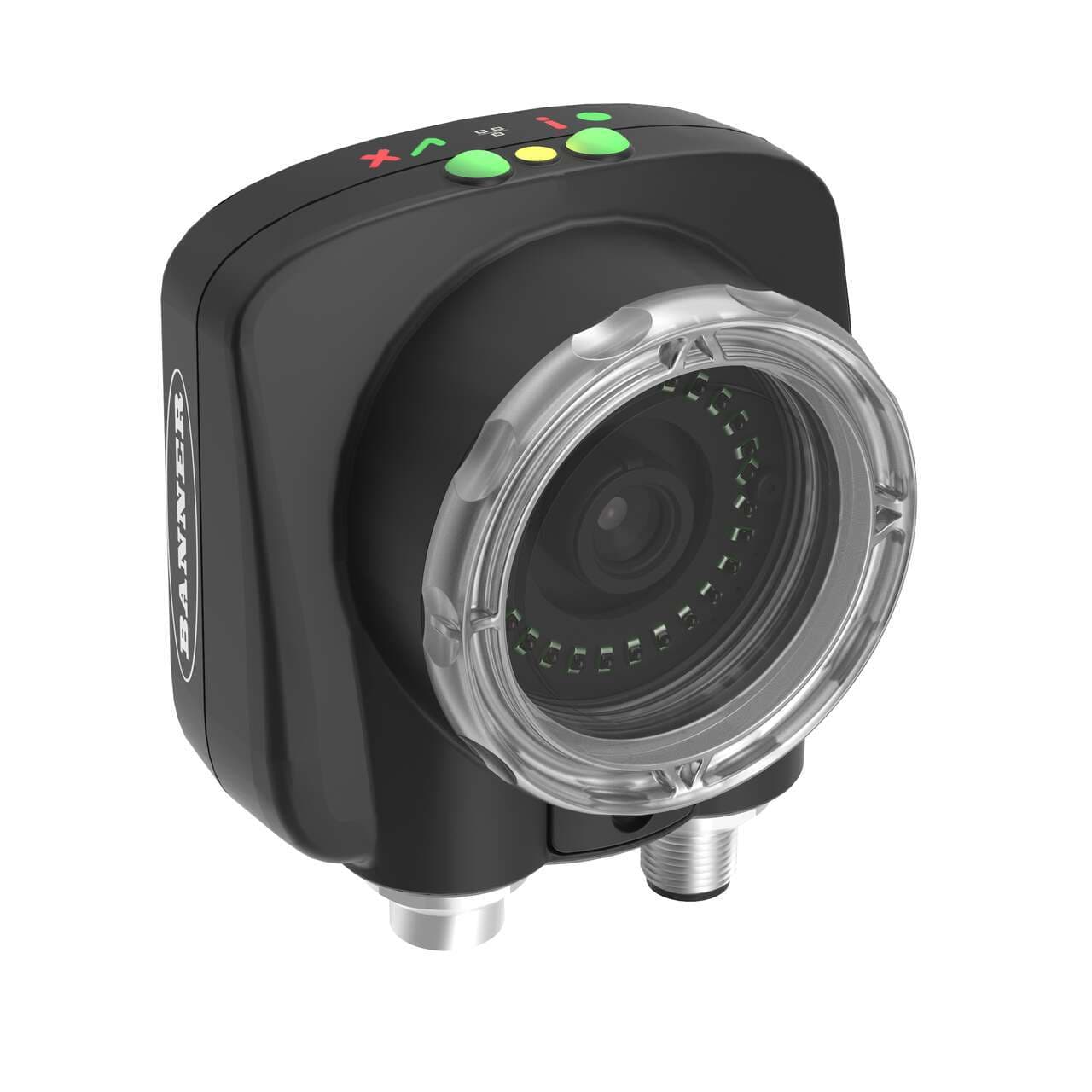

IVU2PRBX12 Banner Barcode Readers

IVU2PRBX12 on Powermatic Associates
Banner
  • IVU2PRBX12
  • IVU2PRBX12

Part#:IVU2PRBX12

Alt. Part#:90968

Manufacturer:Banner

Category:Barcode Readers

Product Lifecycle:Active

Product description

iVu PLUS BCR Gen2 Remote Sensor with Ethernet; No Light and 12 mm lens; Requires power cordset and bracket; Ethernet and USB cordset optional

Product Details

  • Weight
    675.85208 g
  • Country Of Origin
    CN
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Image sensor characteristics
    752x480pixels 1/3" CMOS sensing; Monochrome
  • Material
    thermoplastic housing Acrylic window
  • Order code / Manufacturer SKU
    90968
  • Primary brand
    Banner Engineering
  • Functions
    1D / 2D BCR barcode reader / image sensor (0.36Mpixel) kit PCCC
  • Mounting mode
    C-mount
  • Ambient air temperature for operation
    0...+40 °C
  • Net Depth (mm)
    52 mm
  • Sub-range name
    iVu Plus TG and Color Gen2 Image Sensors
  • Design
    remote touchscreen 4.3mm optical lns. grayscale sensor
  • Communication protocol
    Ethernet/IP Modbus TCP PROFINET RS-232
  • Degree of protection
    IP67
  • Net Width (mm)
    81 mm
  • Main function
    Sensor (Vision)
  • Color
    Black housing
  • Digital outputs
    1 x digital output (PNP/NPN transistor)
  • Net Height (mm)
    79 mm
  • Connection type
    Pre-equipped with 12-pin Euro-style M12 male connector (Supply) 4-pin M8 female connector (USB) 4-pin M8 male connector (Ethernet) 8-pin Euro-style M12 female connector (Remote display)
  • Compliant with standard(s)
    cULus CE
  • Type of lens
    12mm
  • USB
    No
  • Device Type
    Imager BCR
  • Image Resolution
    752 x 480 pixels
  • Lens (mm)
    12
  • Light Color
    No Light
  • IP Rating
    IP67
  • Primary Housing Material
    Thermoplastic
  • Code Type
    1D, 2D
  • Camera Housing Size (HxWxL mm)
    79 x 81 x 52
  • RS-422
    No
  • Common Ethernet Protocol
    No
  • Imager Type
    Grayscale
  • FTP
    No
  • Feature: PC Interface
    Yes
  • Modbus/TCP
    Yes
  • PCCC
    Yes
  • Feature: Touchscreen Interface
    Yes
  • Touchscreen Display
    Remote
  • PROFINET
    Yes
  • RS-232
    Yes
  • EtherNet/IP
    Yes
  • Feature: Washdown Rated
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of IVU2PRBX12 on Powermatic Associates is $1,804.00. Order now.

About the product

Banner Engineering IVU2PRBX12 is a 1D / 2D fixed-mount barcode reader and image sensor kit featuring a 0.36 Megapixel camera. It comes with a remote touchscreen and a 4.3mm optical lens, capable of storing up to 30 inspections. The scanner has a black thermoplastic housing with an acrylic window for durability. It is pre-equipped with a 12-pin Euro-style M12 male connector for power supply, two 4-pin M8 connectors (female and male) for USB and Ethernet connections, and an 8-pin Euro-style M12 female connector for the remote display. The device supports Ethernet/IP, Modbus TCP, PROFINET, and RS-232 communication protocols. It operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal. Designed for C-mount installation, it measures 79 mm in height, 81 mm in width, and 52 mm in depth. The operating ambient air temperature range is 0 to +40°C. It offers a degree of protection of IP67 and includes 1 x digital output (PNP/NPN transistor). The type of lens used is 12mm.

IVU2PRBX12 Related Documents

178443.pdf

Manufacturer warranty

IVU2PRBX12 Banner

$1,804.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$1,804.00

$1,804.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

Banner

Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
