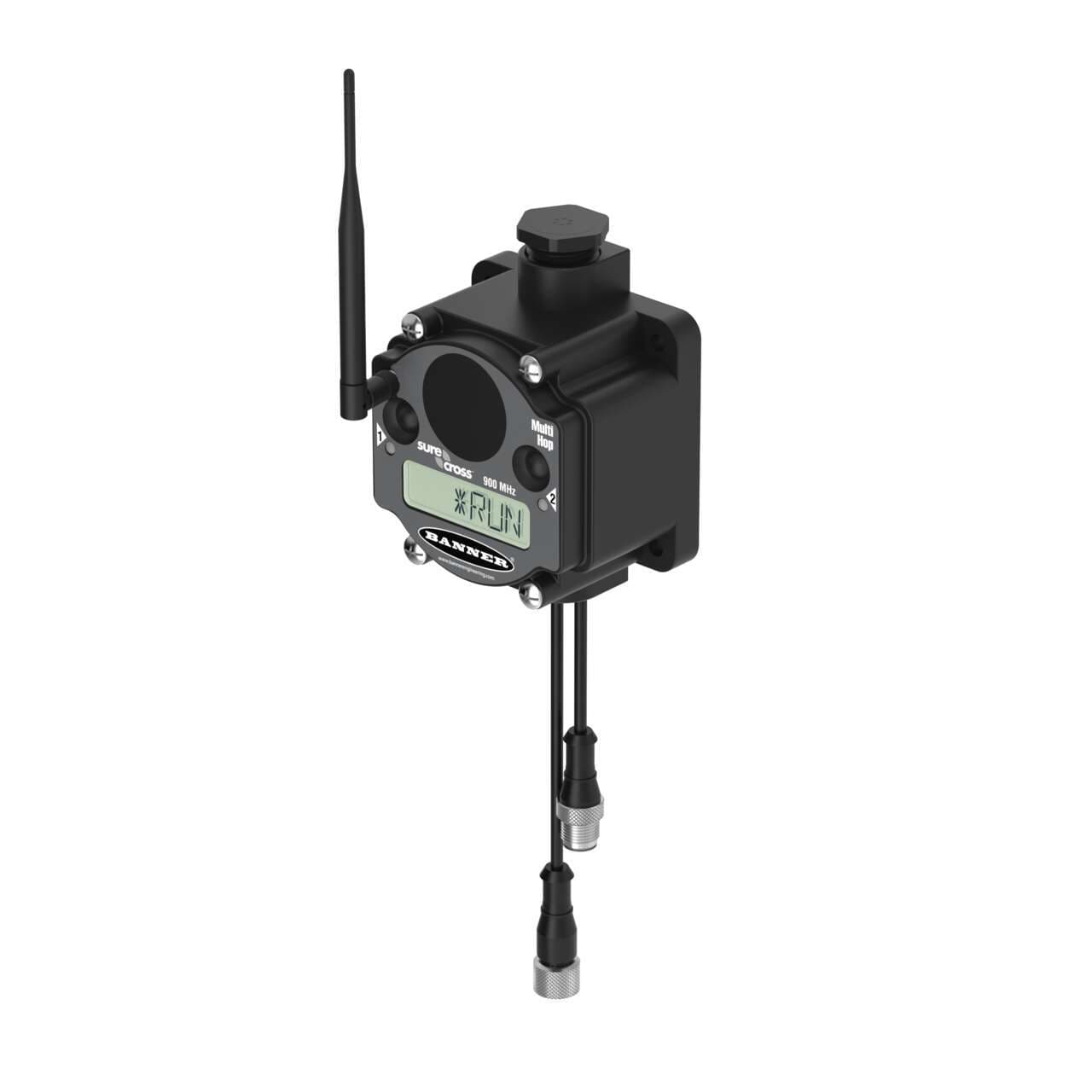

DX80DR9M-H10 Banner Network Gateways

Name: DX80DR9M-H10
Brand: Banner
Price: 599 USD
Availability: BackOrder

Part#:DX80DR9M-H10

Alt. Part#:807972

Manufacturer:Banner

Category:Network Gateways

Product Lifecycle:Active

Product description

MultiHop 900 MHz 1 W IP67; Flex Power; External Antenna; 1-wire Serial Interface with Extended Addressing and Platform Capabilities

Product Details

Weight
612.3492 g
Country Of Origin
US
Wireless Radio Frequency
900 MHz
1-wire Serial Interface
Yes
Wireless
Yes
RS-232
No
RS-485
No
Modbus/TCP
No
PROFINET
No
Modbus RTU
No
Application: Ultrasonic
Yes
Application: Tank Level
Yes
EtherNet/IP
No
Application: Vibration Sensor Input
Yes
Application: Temperature Input
Yes
Application: Relative Humidity Input
Yes
Feature: Hazardous Area
No
Star Topology
Yes
Tree Topology
Yes
Point-to-Multipoint Topology
Yes

Point-to-Point Topology

Yes

Relative Humidity

95%

Ships With Battery

Yes

Min Temp Operating Conditions

-20

Max Temp Operating Conditions

LCD Display

Yes

Housing Style

Integrated Battery

Environmental Rating (IP)

IP67

Input/Output

Serial

Power

Flex Power

Input Details

1-Wire Serial Interface

Power Supply

10-30 V dc or D Cell Lithium Battery

Environmental Rating (NEMA)

NEMA 6

Device Type

Multihop Data Radio

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DX80DR9M-H10 on Powermatic Associates is $599.00. Order now.

About the product

Banner Engineering DX80DR9M-H10 is a Gateway designed for surface mounting, featuring a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP67 NEMA 6. The dimensions of this rectangular-shaped gateway are H62.4mm x W256.4mm x D80.9mm. It utilizes a 900 MHz transmission frequency and is equipped with MultiHop FlexPower data radio and a 1-Wire serial interface, falling under the MultiHop Modbus IO data radios sub-range. The design includes 2 buttons, 2 bi-color LEDs, and employs FHSS (Frequency Hopping Spread Spectrum) technology. Connection is facilitated through 2 x 5-pin M12 male connectors (1 male + 1 female) and an RP-SMA connector. It requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.) and supports the RS-485 Modbus TCP communication protocol. The frequency is set at the 900MHz ISM band 1W, capable of a maximum transmission distance of 9.6km at nominal emission power.

DX80DR9M-H10 Related Documents

214151.pdf

This item can ship within 0 day!

Manufacturer warranty

DX80DR9M-H10 Banner

$599.00

Your price can be lower.
Log in or Create account to check your discount

Stock:

Select Qty:

$599.00

$599.00 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
