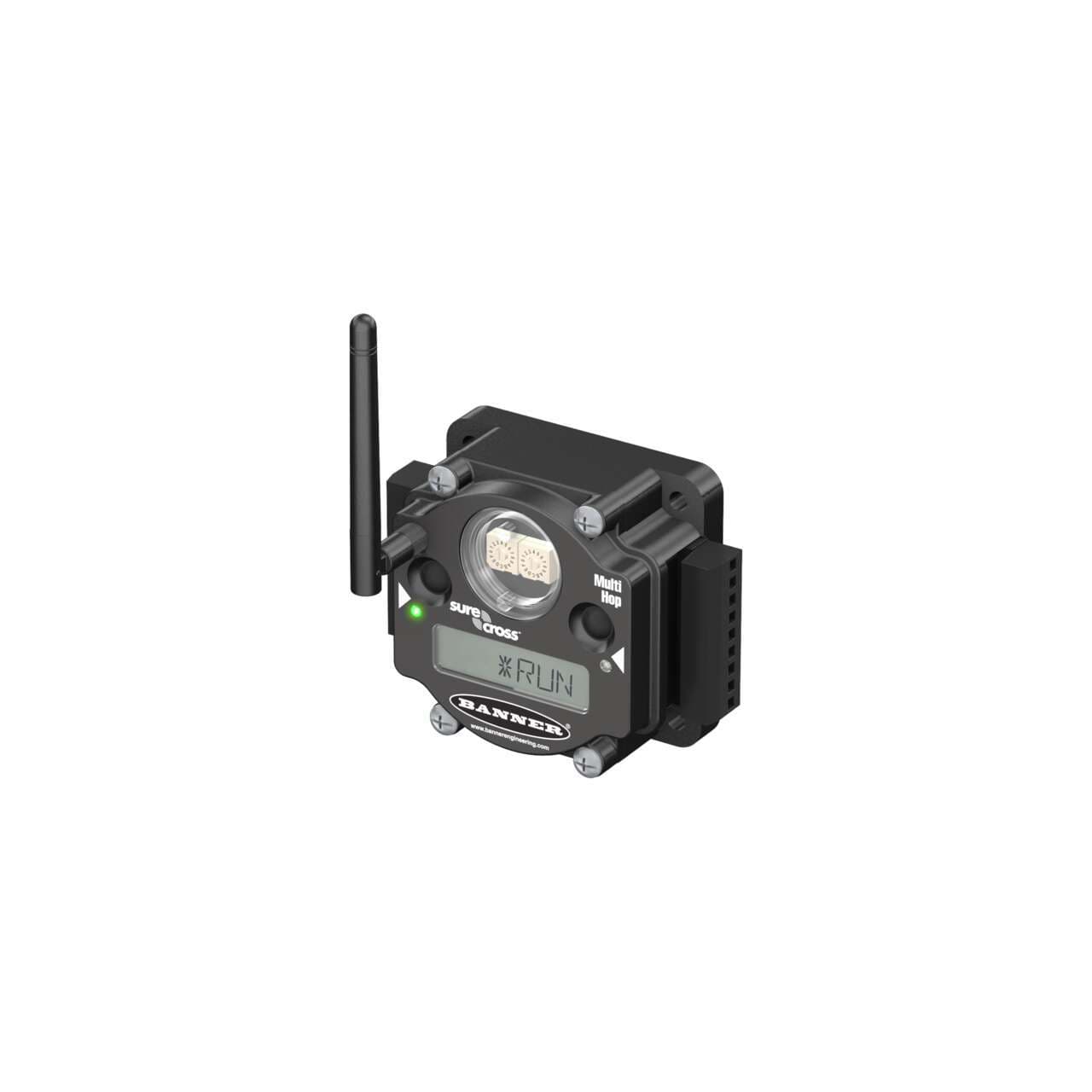

DX80DR2M-H2C Banner Network Gateways

Name: DX80DR2M-H2C
Brand: Banner
Price: 699 USD
Availability: BackOrder

Part#:DX80DR2M-H2C

Manufacturer:Banner

Alt. Part#:18144

Product Lifecycle:Active

Get a quick Quote!

MultiHop 2.4 GHz 65 mW IP20; 10-30 V dc External Antenna RS485; Inputs: 4 Discrete 2 Analog; Outputs: 4 Discrete 2 Analog; External Terminals

About the manufacturer: Banner is one of the manufacturers that offers Network Gateways that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DX80DR2M-H2C Banner price in the box on the right side or send a quick quote.

Product Details

Weight
589.6696 g
Country Of Origin
US
1-wire Serial Interface
No
Tree Topology
Yes
Modbus/TCP
No
Wireless Radio Frequency
2.4 GHz
Wireless
Yes
RS-485
Yes
RS-232
No
PROFINET
No
Star Topology
Yes
Feature: Hazardous Area
Yes
Modbus RTU
Yes
EtherNet/IP
No
Point-to-Point Topology
Yes
Point-to-Multipoint Topology
Yes
Relative Humidity
95%
Min Operating Temperature ( °C)
-20
Max Operating Temperature ( °C)
80
Hazardous/Intrinsically Safe Classification
Class I, Division 2/Zone 2; ATEX Zone 2

Environmental Rating (NEMA)

NEMA 1

LCD Display

Yes

Min Temp Operating Conditions

-20

Max Temp Operating Conditions

Output Details

4 Sourcing Discrete, 2 0-20mA Analog

Environmental Rating (IP)

IP20

Power Supply

10-30 V dc

Analog Inputs

Yes

Discrete Outputs

Yes

Input Details

4 Discrete, 2 0-20 mA Analog

Discrete Inputs

Yes

Analog Outputs

Yes

Housing Style

External Terminals

Input/Output

Analog & Discrete

Device Type

Multihop Data Radio

Power

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DX80DR2M-H2C Description

Banner Engineering DX80DR2M-H2C is a Gateway designed for surface mounting with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers 2 analog outputs (0-20mA), protected to IP20 and NEMA 1 standards. The dimensions are H44.5mm x W103.3mm x D80.1mm. It features 4 digital outputs (30Vdc; PNP; 100mA) and 2 analog inputs (0-20mA), with a transmission frequency of 2400 MHz. The rectangular-shaped device includes 4 digital inputs (30Vdc 3mA; PNP) and supports MultiHop data radio functionality within the MultiHop Modbus IO data radios sub-range. Its design incorporates 2 buttons, 2 bi-color LEDs for Ex e II applications, and utilizes FHSS (Frequency Hopping Spread Spectrum) technology. Connection is facilitated through detachable screw-clamp connectors and an RP-SMA connector, requiring a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.). It uses the RS-485 Modbus TCP communication protocol, operates on the 2.4GHz ISM band at 65mW, and can achieve a maximum transmission distance of 3.2km at nominal emission power.
