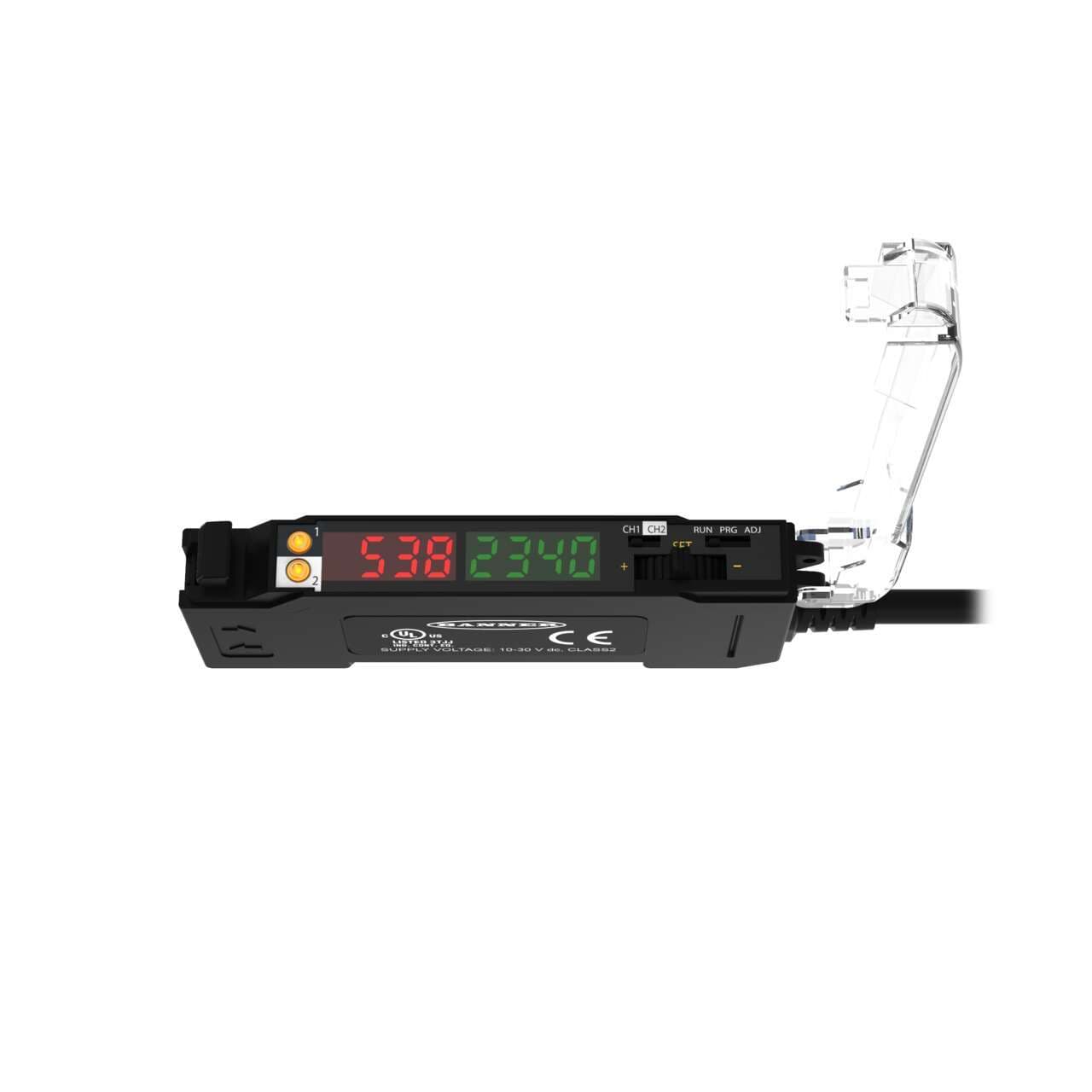

DF-G3LIR-PD-Q5 Banner Sensor Accessories

Product Details

• Weight
  31.8421584 g
• Country Of Origin
  CN
• Feature: Health/ Marginal Signal Output
  Yes
• IO Link
  No
• Housing Material
  Thermoplastic
• Feature: Audible
  No
• Minimum response time (ms)
  .5
• Feature: Timing (Hold/Delay)
  Yes
• Special Feature: Bussable Power
  No
• Feature: Hazardous Area
  No
• Indicator Display Type
  Dual Digital Displays
• Delay at Power-up (ms)
  500
• Power Supply/Supply Voltage
  10-30 V dc
• Adjustments
  Teach Button
• Intrinsically Safe
  No
• Crosstalk Avoidance
  Yes
• Special Feature: Remote Teach
  Yes
• Min Op. Temperature (°C)
  -10
• Max Op. Relative Humidity (%)
  90% @ 60°C
• Max Op. Temperature (°C)
  55
NEMA Rating
NEMA 1
Output Type (Specific)
Dual Discrete
IP Rating
IP50
Number of Pins
5
Repeatability (µs)
100 to 180
Quick Disconnect Type
M12 (Euro)
Input/Output
Discrete
Power
DC
Output
PNP
Primary Housing Material
Thermoplastic
Color LED - Amplifiers
Long Infrared (Water Detection)
Cable Length (m)
0.15
Connection
Pigtail QD
Fiber Type
Glass Only
Housing Style
DIN Rail
Product series / family name
Fiber optic amplifiers
Supply voltage (DC)
10Vdc-30Vdc (12Vdc / 24Vdc nom.)
Shape
Rectangular
Display
LED 4 digits x 2 (red + green)
Light Color
Infrared (IR)
Design
for water detection
Material
thermoplastic housing PVC connector Glass fiber
Primary brand
Banner Engineering
Functions
Long-range fiber optic sensor amplifier yellow LED (output status) red LED (signal)
Mounting mode
DIN rail mounting
Compliant with standard(s)
cULus CE
Sub-range name
DF-G3 Expert series
Wavelength
1450 nm
Connection type
Pre-wired with 6" / 150mm pigtail terminated with 5-pin Euro-style M12 connector
Degree of protection
IP50 NEMA 1
Order code / Manufacturer SKU
87699
Main function
Amplifier for sensor
Digital outputs
2 x digital outputs (PNP transistors)
Equivalent to
DFG3LIRPDQ5
Ambient air temperature for operation
-10...+55 °C
