DF-G3LIR-NU-2M Banner Sensor Accessories

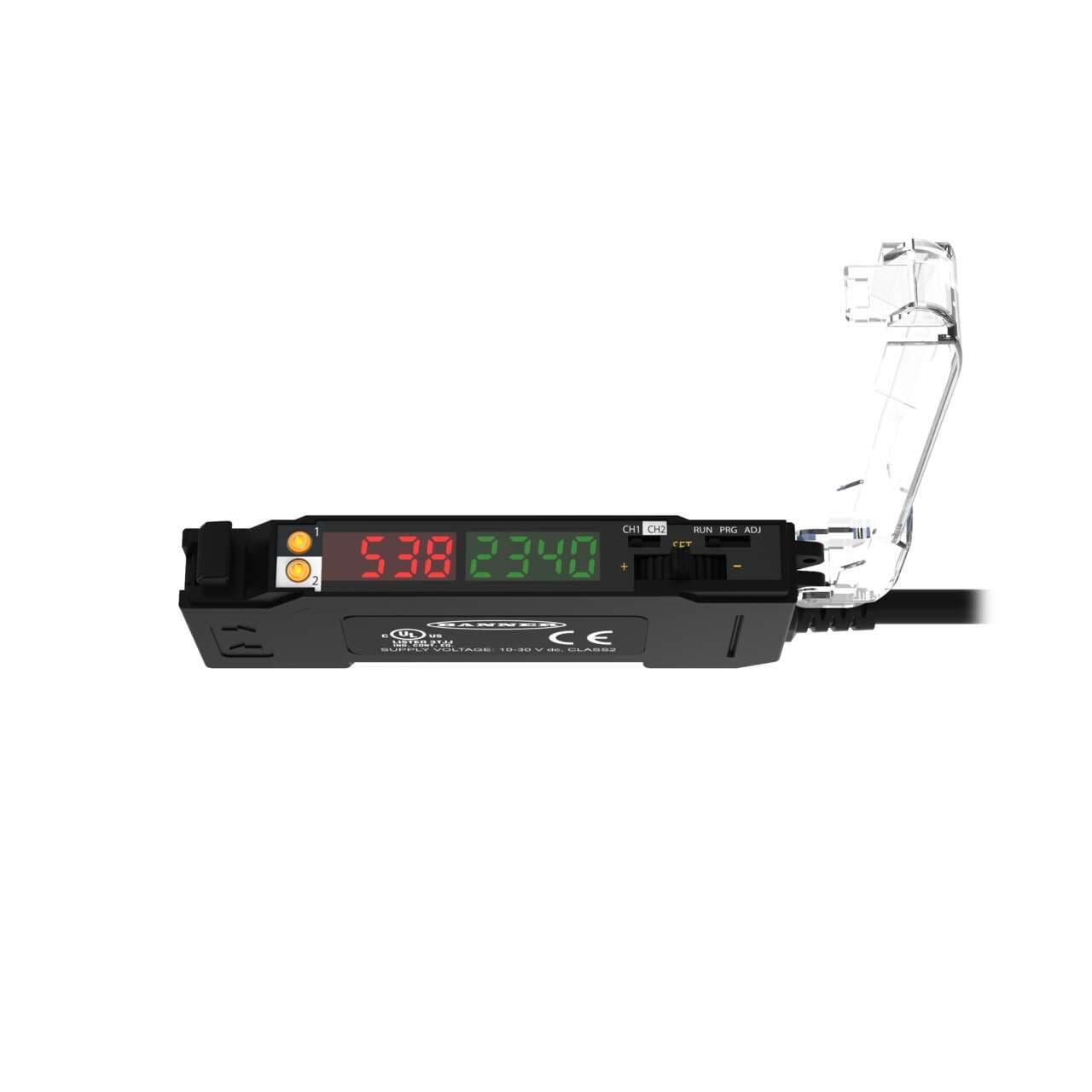

Banner DF-G3LIR-NU-2M DF-G3 Long IR Beam Water Detector Dual Display Fiber Amplifier; Range: Depends on Fiber; Input 12-30 V dc; Outputs: 1 NPN and 0-10 V dc Analog; 2 m 5-conductor PVC Cable
Banner

Part#:DF-G3LIR-NU-2M

Manufacturer:Banner

Alt. Part#:87701

Product Lifecycle:Active

Get a quick Quote!

DF-G3 Long IR Beam Water Detector Dual Display Fiber Amplifier; Range: Depends on Fiber; Input 12-30 V dc; Outputs: 1 NPN and 0-10 V dc Analog; 2 m 5-conductor PVC Cable

About the manufacturer: Banner is one of the manufacturers that offers Sensor Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DF-G3LIR-NU-2M Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    90.7184 g
  • Country Of Origin
    CN
  • Housing Material
    Thermoplastic
  • Feature: Audible
    No
  • IO Link
    No
  • Feature: Hazardous Area
    No
  • Feature: Timing (Hold/Delay)
    Yes
  • Analog Output
    0 to 10 V dc
  • Minimum response time (ms)
    .5
  • Delay at Power-up (ms)
    500
  • Special Feature: Bussable Power
    No
  • Indicator Display Type
    Dual Digital Displays
  • Adjustments
    Teach Button
  • Power Supply/Supply Voltage
    12-30 V dc
  • Intrinsically Safe
    No
  • Crosstalk Avoidance
    Yes
  • Special Feature: Remote Teach
    Yes
  • Max Op. Relative Humidity (%)
    90% @ 60°C
  • Min Op. Temperature (°C)
    -10
  • Number of Pins
    5
  • Max Op. Temperature (°C)
    55
  • IP Rating
    IP50
  • NEMA Rating
    NEMA 1
  • Repeatability (µs)
    100 to 180
  • Output Type (Specific)
    Analog & Discrete
  • Quick Disconnect Type
    No QD
  • Fiber Type
    Glass Only
  • Output
    NPN
  • Connection
    Cable
  • Color LED - Amplifiers
    Long Infrared (Water Detection)
  • Input/Output
    Analog & Discrete
  • Primary Housing Material
    Thermoplastic
  • Housing Style
    DIN Rail
  • Power
    DC
  • Cable Length (m)
    2
  • Primary brand
    Banner Engineering
  • Display
    LED 4 digits x 2 (red + green)
  • Design
    for water detection
  • Mounting mode
    DIN rail mounting
  • Analog outputs
    1 x analog output (0-10Vdc)
  • Sub-range name
    DF-G3 Expert series
  • Supply voltage (DC)
    12Vdc-30Vdc (24Vdc nom.)
  • Light Color
    Infrared (IR)
  • Digital outputs
    1 x digital output (NPN transistor)
  • Equivalent to
    DFG3LIRNU2M
  • Order code / Manufacturer SKU
    87701
  • Functions
    Long-range fiber optic sensor amplifier yellow LED (output status) red LED (signal)
  • Wavelength
    1450 nm
  • Degree of protection
    IP50 NEMA 1
  • Product series / family name
    Fiber optic amplifiers
  • Connection type
    Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Ambient air temperature for operation
    -10...+55 °C
  • Main function
    Amplifier for sensor
  • Shape
    Rectangular
  • Material
    thermoplastic housing Glass fiber
  • Compliant with standard(s)
    cULus CE

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


DF-G3LIR-NU-2M Description

Banner Engineering DF-G3LIR-NU-2M is an amplifier designed for sensor applications, specifically within the DF-G3 Expert series. It features a thermoplastic housing with glass fiber, suitable for DIN rail mounting, and operates within an ambient air temperature range of -10 to +55°C. This part offers one analog output (0-10Vdc) and one digital output (NPN transistor; complementary NO/NC), ensuring versatility in connectivity. It is designed for long-range fiber optic sensor amplification with a focus on water detection applications, boasting a high-power design. The DF-G3LIR-NU-2M emits infrared light at a wavelength of 1450 nm and is equipped with a pre-wired 6.5ft / 2m cable with bare end flying leads for connection. It operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal. The device is protected to IP50 and NEMA 1 standards, indicating a degree of protection against dust and other particulates.



Related documents DF-G3LIR-NU-2M Specs

Manufacturer warranty

$377.00

Request a quote, and we will send availability within minutes.

Select Qty:

$377.00

$377.00 each
