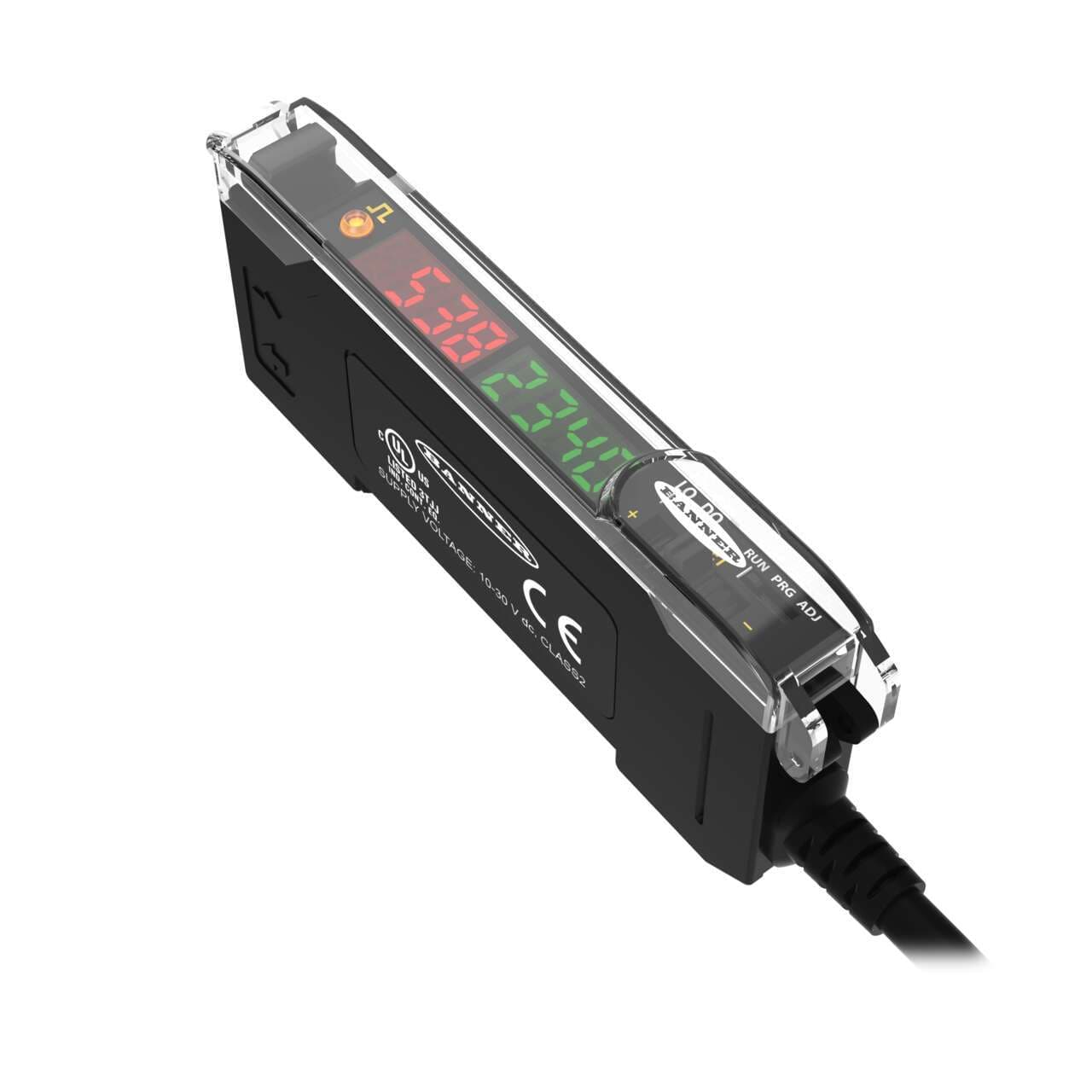

DF-G1-NR-Q5

Banner

Product Lifecycle: Active

Banner Engineering DF-G1-NR-Q5 is an amplifier for sensors, designed for DIN rail mounting. It features a thermoplastic housing with a PVC connector and operates within an ambient air temperature range of -10 to +55 °C. This part offers a degree of protection rated at IP50 NEMA 1 and emits a visible red light with a wavelength of 660 nm. It includes 1 x digital output (NPN transistor) and is characterized by its rectangular shape. The DF-G1-NR-Q5 is part of the DF-G1 Expert series and incorporates a dual-display fiber optic sensor amplifier with a light-intensity receiver TEACH mode. It connects via a pre-wired 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector and requires a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.).

DF-G1-NR-Q5

Banner Engineering DF-G1-NR-Q5 is an amplifier for sensors, designed for DIN rail mounting. It features a thermoplastic housing with a PVC connector and operates within an ambient air temperature range of -10 to +55 °C. This part offers a degree of protection rated at IP50 NEMA 1 and emits a visible red light with a wavelength of 660 nm. It includes 1 x digital output (NPN transistor) and is characterized by its rectangular shape. The DF-G1-NR-Q5 is part of the DF-G1 Expert series and incorporates a dual-display fiber optic sensor amplifier with a light-intensity receiver TEACH mode. It connects via a pre-wired 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector and requires a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.).

  • Feature: AudibleNo
  • IO LinkNo
  • Housing MaterialThermoplastic
  • Feature: Timing (Hold/Delay)Yes
  • Special Feature: Bussable PowerNo
  • Minimum response time (ms)50
  • Indicator Display TypeDual Digital Displays
  • Delay at Power-up (ms)500
  • Feature: Hazardous AreaNo
  • Power Supply/Supply Voltage10-30 V dc
  • AdjustmentsTeach Button
  • Intrinsically SafeNo
  • Special Feature: Remote TeachYes
  • Max Op. Relative Humidity (%)90% @ 60°C
  • NEMA RatingNEMA 1
  • Min Op. Temperature (°C)-10
  • Max Op. Temperature (°C)55
  • Number of Pins4
  • IP RatingIP50
  • Repeatability (µs)N/A
  • Output Type (Specific)Single Discrete
  • Cable Length (m)0.15
  • Primary Housing MaterialThermoplastic
  • Quick Disconnect TypeM12 (Euro)
  • ConnectionPigtail QD
  • Fiber TypePlastic and Glass
  • OutputNPN
  • Input/OutputDiscrete
  • Housing StyleDIN Rail
  • PowerDC
  • Product series / family nameFiber optic amplifiers
  • ShapeRectangular
  • Digital outputs1 x digital output (NPN transistor)
  • Ambient air temperature for operation-10...+55 °C
  • Sub-range nameDF-G1 Expert series
  • DisplayLED 4 digits x 2 (red + green)
  • Light ColorVisible red
  • Materialthermoplastic housing PVC connector
  • Equivalent toDFG1NRQ5
  • Primary brandBanner Engineering
  • Supply voltage (DC)10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Wavelength660 nm
  • Degree of protectionIP50 NEMA 1
  • Order code / Manufacturer SKU86291
  • Designlight-intensity receiver
  • Compliant with standard(s)cULus CE
  • FunctionsDual-display fiber optic sensor amplifier yellow LED (output status) red LED (signal) TEACH mode
  • Mounting modeDIN rail mounting
  • Main functionAmplifier for sensor
  • Connection typePre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
