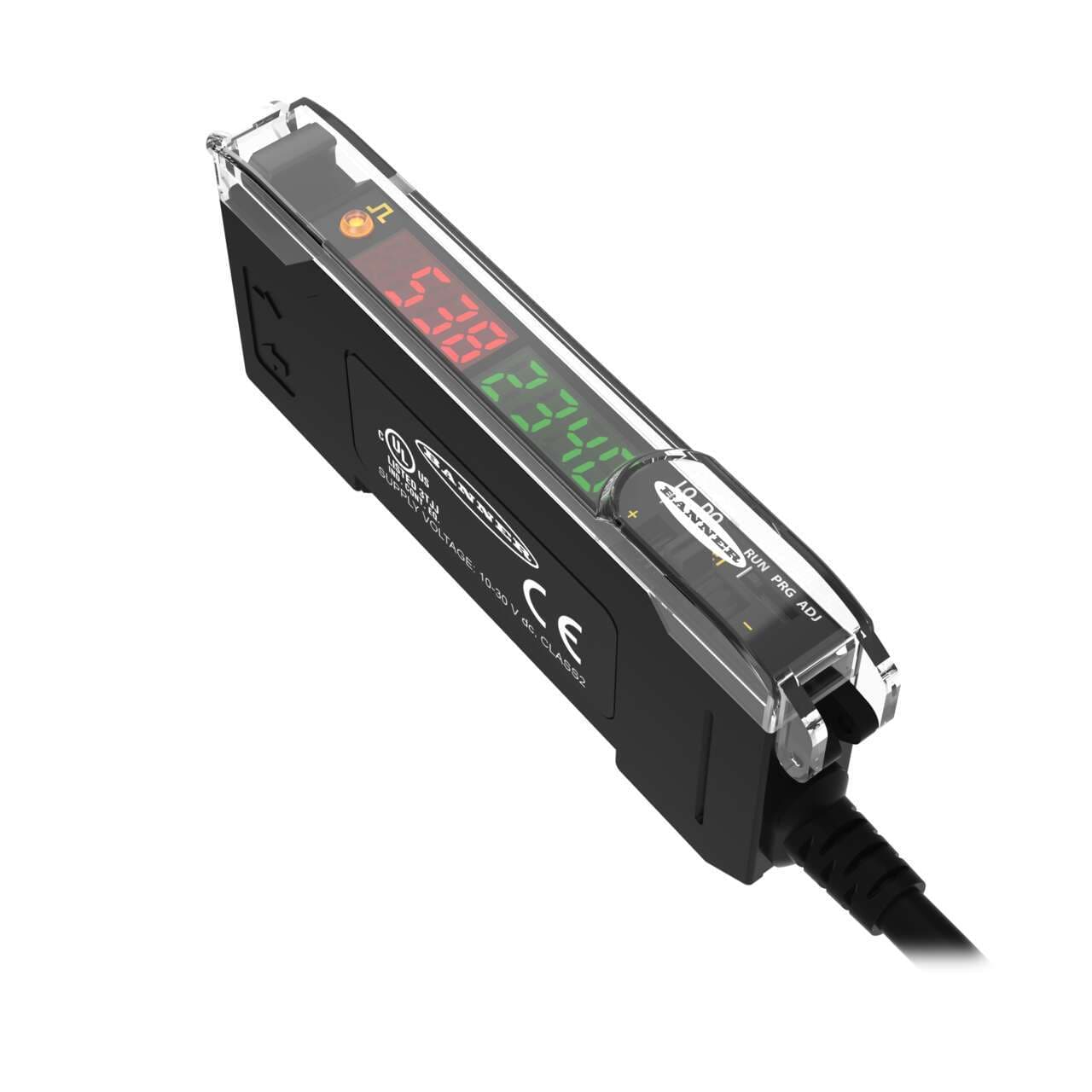

DF-G1-KS-Q5 Banner Sensor Accessories

Product Details

• Weight
  73.3004672 g
• Country Of Origin
  CN
• Housing Material
  Thermoplastic
• Feature: Timing (Hold/Delay)
  Yes
• Feature: Audible
  No
• IO Link
  Yes
• Minimum response time (ms)
  .2
• Feature: Hazardous Area
  No
• Special Feature: Bussable Power
  No
• Indicator Display Type
  Dual Digital Displays
• Delay at Power-up (ms)
  500
• Power Supply/Supply Voltage
  10-30 V dc
• Adjustments
  Teach Button
• Intrinsically Safe
  No
• Crosstalk Avoidance
  Yes
• Special Feature: Remote Teach
  No
• Max Op. Relative Humidity (%)
  90% @ 60°C
• Max Op. Temperature (°C)
  55
• Min Op. Temperature (°C)
  -10
• IP Rating
  IP50
NEMA Rating
NEMA 1
Number of Pins
4
Repeatability (µs)
66 to 100
Output Type (Specific)
IO-Link and Single Discrete
Quick Disconnect Type
M12 (Euro)
Connection
Pigtail QD
Fiber Type
Plastic and Glass
Output
IO-Link/PNP
Primary Housing Material
Thermoplastic
Color LED - Amplifiers
Red
Input/Output
Discrete & Serial
Housing Style
DIN Rail
Cable Length (m)
0.15
Power
DC
Primary brand
Banner Engineering
Functions
Dual-display fiber optic sensor amplifier yellow LED (output status) red LED (signal) TEACH mode
Connection type
Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
Main function
Amplifier for sensor
Supply voltage (DC)
18Vdc-30Vdc (24Vdc nom.)
Digital outputs
1 x digital output (PNP transistor)
Order code / Manufacturer SKU
19524
Product series / family name
Fiber optic amplifiers
Design
light-intensity receiver
Light Color
Visible red
Communication protocol
IO-Link
Compliant with standard(s)
cULus CE
Sub-range name
DF-G1 Expert series
Wavelength
660 nm
Mounting mode
DIN rail mounting
Ambient air temperature for operation
-10...+55 °C
Display
LED 4 digits x 2 (red + green)
Shape
Rectangular
Degree of protection
IP50 NEMA 1
Equivalent to
DFG1KSQ5
Material
thermoplastic housing PVC connector
