DEE2R-87D Banner Cordsets
Part#:DEE2R-87D
Manufacturer:Banner
Alt. Part#:28606
Product Lifecycle:Active
Get a quick Quote!

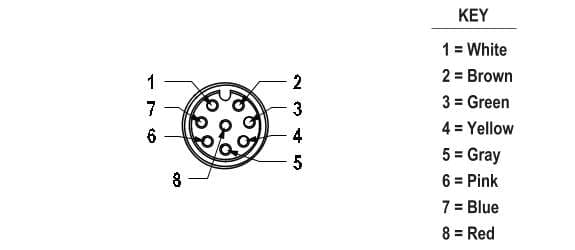

Cordset: Double Ended M12; 8-pin Straight Female; 8-pin Straight Male; 2.13 m 8x22 Yellow PVC Jacket; Nickel-Plated Brass Coupling Nuts
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DEE2R-87D Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 72.57472 g
- Country Of Origin TW
- Oil/Grease Resistant No
- Feature: Hazardous Area No
- Secondary Coupling Method M12 Single Key
- Secondary Number of Conductors 8
- Secondary Connector Type EURO
- Secondary Gender Male
- Secondary Orientation Straight
- Primary Number of Conductors 8
- Voltage Rating (V) 60 V ac/75 V dc
- Primary Connector Type EURO
- Coupling Material/Color Nickel Plated Brass
- Primary Gender Female
- IP Rating IP68
- Minimum Temp. (°C) -40
- Trunk Length (m) No Trunk
- Shield/No Shield No Shield
- Number of Contacts 8
- Secondary AWG 22
- Primary AWG 22
- Primary Orientation Straight
- Primary Coupling Method M12 Single Key
- Current Rating (A) 2.0
- Maximum Temp. (°C) 105
- Number of Connectors 2
- Connector Body Material/Color PUR Black
- Cordset Length (m) 2.13
- Outside Cable Diameter (mm) 6
- Cable Jacket Color Yellow
- Cable Jacket Material PVC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
DEE2R-87D Description
Banner Engineering DEE2R-87D is a pre-assembled cable/cordset designed with a double-ended configuration, featuring an 8-pin Euro-style M12 female connector on one end and an 8-pin Euro-style M12 male connector on the other. The cable is constructed from PVC with a chrome-plated brass coupling nut, ensuring durability and a secure connection. It has a diameter of 6mm and a length of 7ft (2.13m), encased in yellow sheathing for easy identification. This part is rated for operation in ambient air temperatures ranging from -40 to +105°C and offers a degree of protection rated at IP68, making it suitable for demanding environments. The DEE2R-87D operates at a rated voltage of 60Vac and 75Vdc, accommodating a variety of automation applications.
