CL50GRYNQ Banner Signal Towers
Part#:CL50GRYNQ
Manufacturer:Banner
Alt. Part#:10467
Product Lifecycle:Active
Get a quick Quote!
Column Light: 3-Color Indicator; Voltage: 18-30 V dc; Environ. Rating: IP67; Input: NPN; Colors: Green Red Yellow; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the CL50GRYNQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 172.36496 g
- Country Of Origin MX
- Modbus RTU No
- Pro-Editor Compatible (Discrete) No
- Multi-Color Device Single Color On
- Wireless No
- IO Link No
- Feature: Hazardous Area No
- Feature: Chemical Resistant No
- Min Op. Temperature (°C) -40
- Feature: Audible No
- Primary Window Material Polycarbonate Diffused
- Max Op. Temperature (°C) 50
- NEMA Type and UL Type Rating NEMA and UL 13
- Primary Housing Color Black
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Max Input Response Time (ms) 10
- Environmental Rating IP67
- Supply Voltage 18-30 V dc
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 114.2
- Animation Option 3 Solid On
- Input Type NPN
- Number of Input Pins/Conductors 4
- Max Current Color (mA) 100
- Color 3 - Wavelength/Color Temp/Coordinates 590 nm
- Lumens Color 3 30.0
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Color Option 3 Yellow
- Lumens Color 2 38.0
- Animation Option 2 Solid On
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Color Option 2 Red
- Quick Disconnect Type M12 (Euro)
- Lumens Color 1 72.0
- Connection Integral QD
- Color Technology Standard LED
- Product Size (mm) 50
- Animation Option 1 Solid On
- Color Option 1 Green
- Housing Style Base Mount - Tower
- Power Source DC
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Mounting Thread M30 x 1.5
- Number of Colors / Segments 3
- Primary Housing Material ABS/Polycarbonate
- Power DC
- Indication Yes
- Cable Length (m) 0.15
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
CL50GRYNQ Description

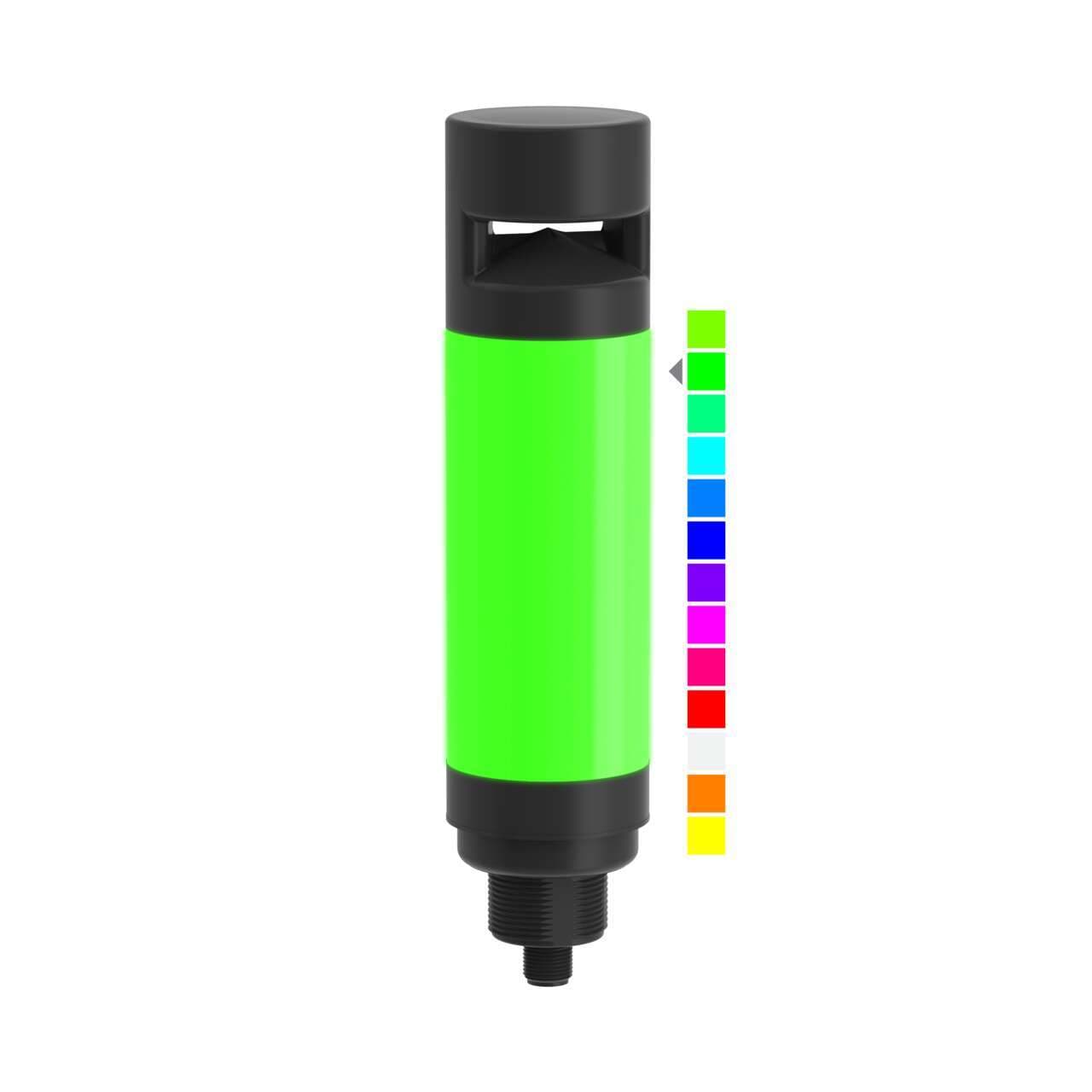

Banner Engineering CL50GRYNQ is a beacon designed for versatile signaling applications, featuring a cylindrical shape with a 1-tier 3-color G/R/Y color pattern LED illumination. It is equipped for surface or base pole mounting with an M30 or 1/2" NPSM thread and is constructed from a polycarbonate diffused window and ABS/polycarbonate housing/base, ensuring durability. The beacon operates within an ambient air temperature range of -40°C to +50°C and has a current consumption of 100mA. It offers a high degree of protection with an IP67, NEMA 13, UL type 13 rating, making it suitable for challenging environments. The CL50GRYNQ includes 3 x digital inputs (18-30Vdc; NPN) for color control, and it connects via a pre-equipped 4-pin M12 Euro-style QD connector. It requires a supply voltage of 18Vdc-30Vdc (24Vdc nom.) and has a diameter of 50mm / 2". The housing is black, complementing various installation environments.
